- TypeDesktop
- FunctionCopy, print, scan, optional: fax
- Print technologyLaser colour and b/w
- Original formatmax A4 from platen glass
- Print speed (A4, Simplex) B/W40 b/w-pages/min.
- Copy speed (A4, Simplex) B/W40 b/w-pages/min.
- Print speed (A4, Duplex) B/W40 b/w-pages/min.
- Copy speed (A4, Duplex) B/W40 b/w-pages/min.
- Print speed (A4, Simplex) Colour40 colour pages/min
- Copy speed (A4, Simplex) Colour40 colour pages/min
- Print speed (A4, Duplex) Colour40 colour pages/min
- Copy speed (A4, Duplex) Colour40 colour pages/min
- 1st page (printing, colour)6.4 seconds
- 1st page (printing, b/w)5.4 seconds
- 1st page (copying, colour)6.9 seconds
- 1st page (copying, b/w)5.8 seconds
- Warm-up time24 seconds
- Copy resolutionmax 600 x 600 dpi
- Greyscales256
- Paper feed (Universal cassettes amount)1 x 500 sheet
- Paper feed (1st cassette types)A6R-A4
- Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
- Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm], Banner: max 216 mm (width) x 1,220 mm (length)
- Paper weights (Universal cassette min)60 g/m²
- Paper weights (Universal cassette max)220 g/m²
- Paper weights (Multi-Bypass min)60 g/m²
- Paper weights (Multi-Bypass max)220 g/m²
- Paper weights (Duplex min)60 g/m²
- Paper weights (Duplex max)220 g/m²
- Paper weights (Banner min)129 g/m²
- Paper weights (Banner max)163 g/m²
- Paper output500 sheet A4
- System memory (RAM)4 GB
- System memory (SSD)8 GB
- System memory (HDD)320 GB
- Continuous copying (min)1
- Continuous copying (max)9999
- Zoom (min)25 %
- Zoom (max)400 %
- Zoom (step)1 %
- FunctionsAdjustable colour touch screen (10.1 inch), duplex, job reservation, job programs, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), login by function, 1000 management codes, encryption/overwriting of hard disk data (Data Security Kit and Trusted Platform Module)
- Mains voltage220/240 V
- Utility frequency50/60 Hz
- Power consumption (max)1404 W
- Power consumption (busy)652 W
- Power consumption (standby)84 W
- Power consumption (sleep)0.7 W
- Power consumption (TEC)0.55 kwh/week
- Noise level (busy, b/w)51.4 dB(A)
- Noise level (busy, colour)52 dB(A)
- Noise level (standby)undefined dB(A)
- SafetyGS/TÜV, CE
- TypeIntegrated within the system
- Print formatA6R-A4
- Print resolution (min)600 x 600 dpi
- Print resolution (max)1,200 x 1,200 dpi (reduced speed)
- ProcessorFreescale QorIQ T1024 (Dual Core) 1.0 GHz
- InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (3), NFC
- Network protocolsTCP/IP, Net BEUI
- Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
- EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ilc, PDF 1.7, XPS, Open XPS
- Functions200 dpi, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, barcode printing, quiet mode (half speed mode), Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, NFC, Wi-Fi
- Scan typeCCD colour and b/w
- Scan formatmax A4
- Scan speed (Feeder 1, simplex, colour)65 DIN-A4-image pages/min. in 300 dpi
- Scan speed (Feeder 1, simplex, b/w)85 DIN-A4-image pages/min. in 300 dpi
- Scan speed (Feeder 1, duplex, colour)130 DIN-A4-image pages/min. in 300 dpi
- Scan speed (Feeder 1, duplex, b/w)170 DIN-A4-image pages/min. in 300 dpi
- Optional feeder 1DP-5130
- Scan speed (Feeder 2, simplex, colour)60 DIN-A4-image pages/min. in 300 dpi
- Scan speed (Feeder 2, simplex, b/w)60 DIN-A4-image pages/min. in 300 dpi
- Scan speed (Feeder 2, duplex, colour)120 DIN-A4-image pages/min. in 300 dpi
- Scan speed (Feeder 2, duplex, b/w)120 DIN-A4-image pages/min. in 300 dpi
- Optional feederDP-5120
- Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
- Scan modePhoto, text, photo/text, optimised for OCR
- File typesTIFF, JPEG, PDF, high compression PDF, encrypted PDF, XPS, OpenXPS, text-searchable PDF
- Interfaces10/100/1000BaseTX, USB 2.0
- Network protocolTCP/IP
- Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
- FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WSD scan, SMTP authentication, LDAP
- Typeoptional Fax System (10X)
- CompatibilitySuper G3
- Original formatmax A4
- Modem speed33.6 kbps
- Transmission speed3 seconds or less using JBIG
- Compression methodJBIG, MMR, MR, MH
- Fax resolutionmax 600 x 600 dpi
- Fax memory170 MB
- Abbreviated dial2000 numbers
- One touch dial1000 numbers
- Group dial500 numbers
- Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
- FunctionsNetwork fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception
- Original feederDP-5100 document processor with automatic reverse function (A6R-A4, banner paper up to 1,900 mm [length], capacity: 75 sheet A4, paper weight 50-120 g/m²), DP-5120 document processor with simultaneous duplex scanning (A6R-A4, banner paper up to 1,900 mm [length], capacity: 100 sheet A4, paper weight 50-120 g/m²), DP-5130 document processor with simultaneous duplex scanning, double feed and staple detection sensors (A6R-A4, banner paper up to 1,900 mm [length], capacity: 270 sheet A4, paper weight 50-120 g/m²)

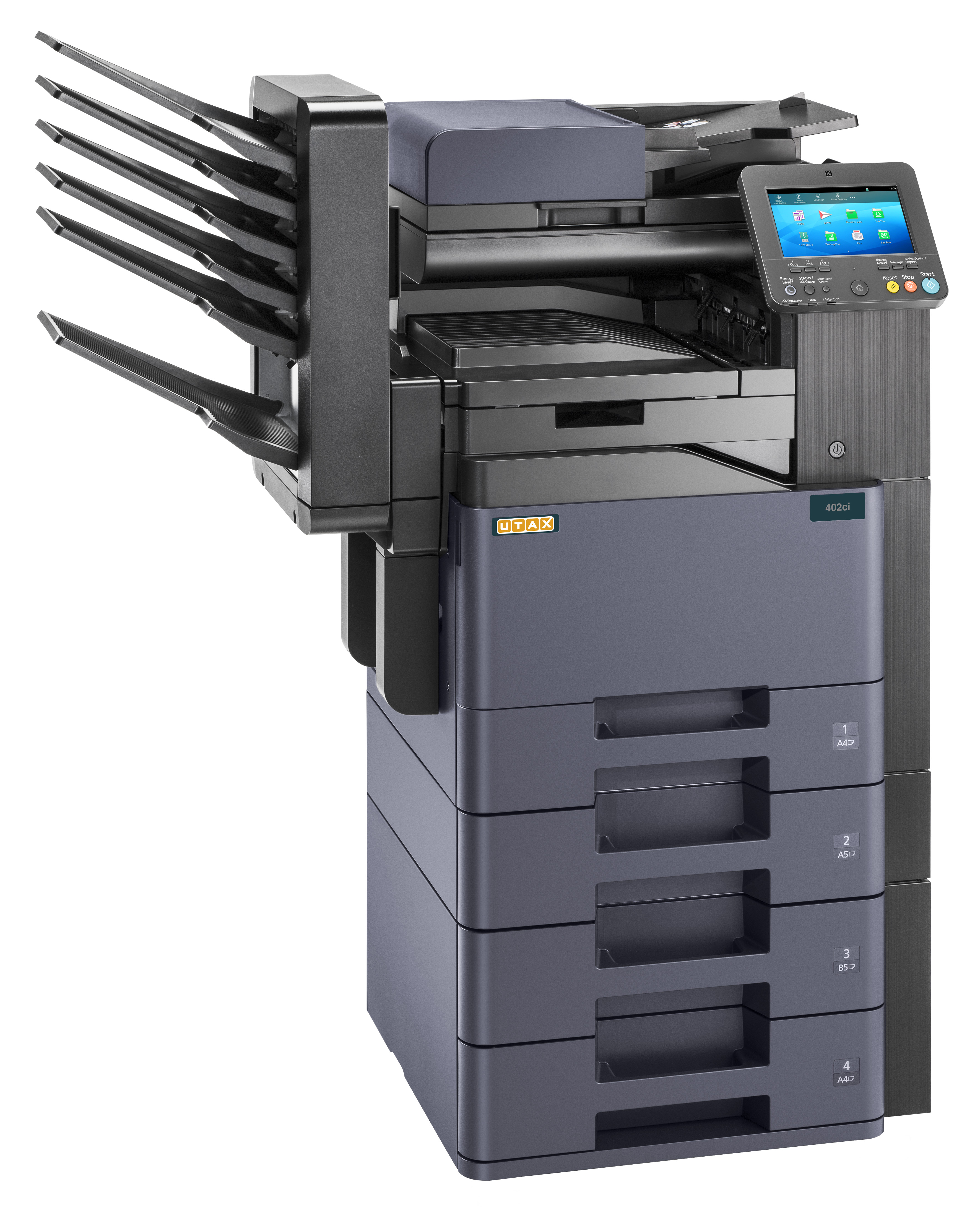

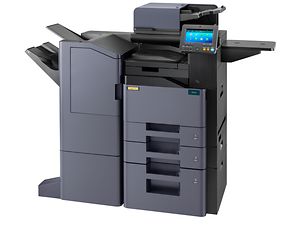

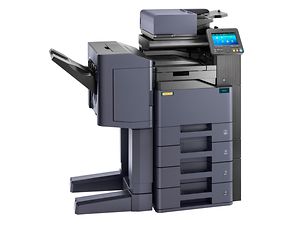

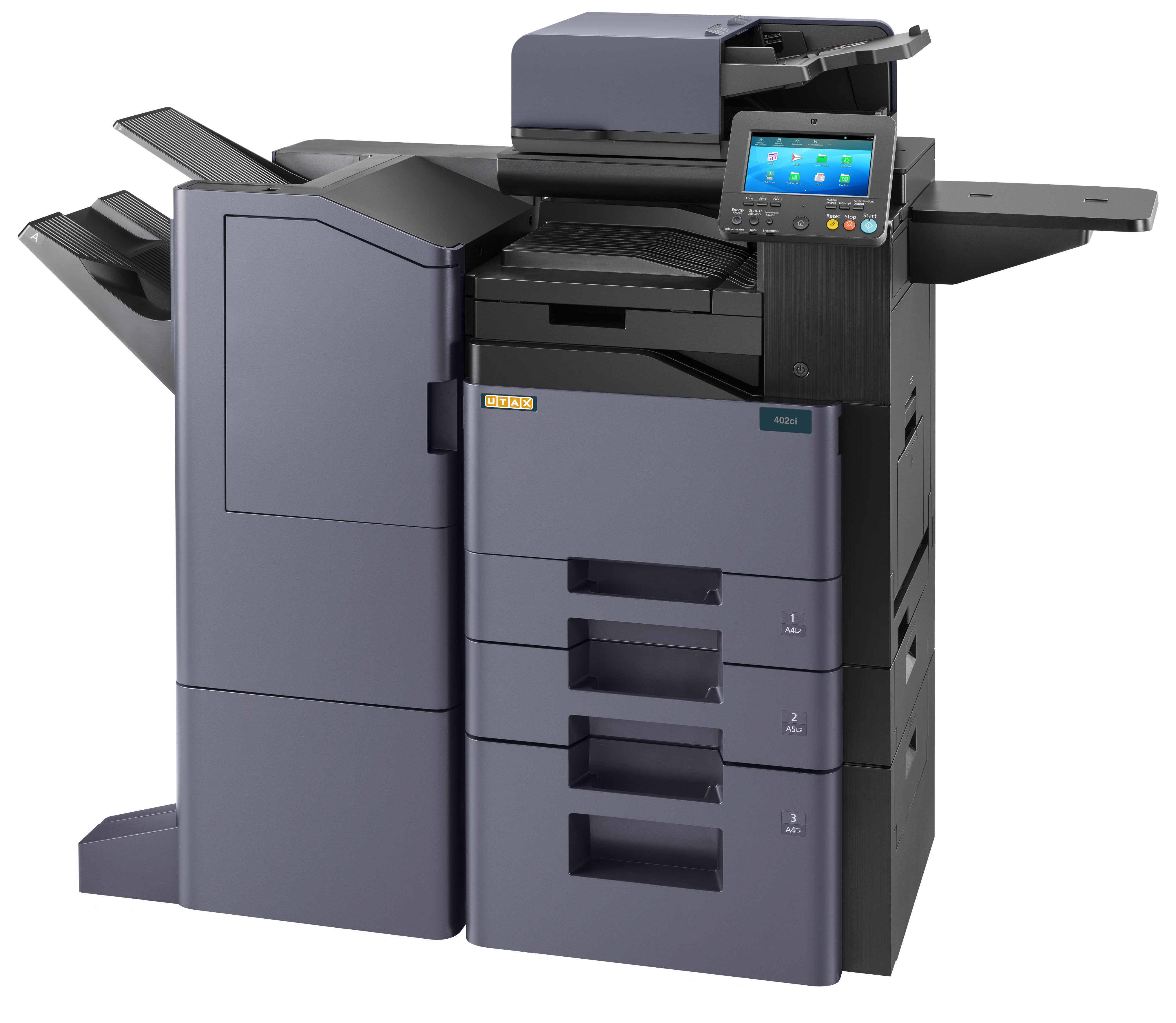

- FinisherDF-5100 internal finisher (capacity: 300 sheet A4, stapling max 50 sheet A4), DF-5110 (capacity: 1,000 sheet A4, stapling max 50 sheet A4), DF-5120 (capacity: 3,200 sheet A4, stapling max 50 sheet A4, manual stapling also available, 2-/4-hole punching), PH-5110 hole punch unit for DF-5110 (2-/4-hole punching), MT-5100 multi tray (500 sheet + 5 x 100 sheet A4; cannot be combined with DF-5100/DF-5110/DF-5210/JS-5100)
- Job SeparatorJS-5100 (capacity: 100 sheet A4)
- Paper feedPF-5120 (1 x 500 sheet universal cassettes [A6R-A4]), PF-5130 (2 x 500 sheet universal cassettes [A6R-A4]), PF-5140 (2,000 sheet large capacity tray [A4]), 1 x PF-5120 is required for installation of PF-5130 or PF-5140!
- Other optionsCard authentication kit (B), Card reader holder (11), Scan extension kit (A), UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-35/IB-51 WLAN card, Internet fax kit (A), NK-7100(B) Numeric Keyboard (10 keys), DT-5100 document tray, cabinet no. 74 (high), cabinet no. 75 (low)
