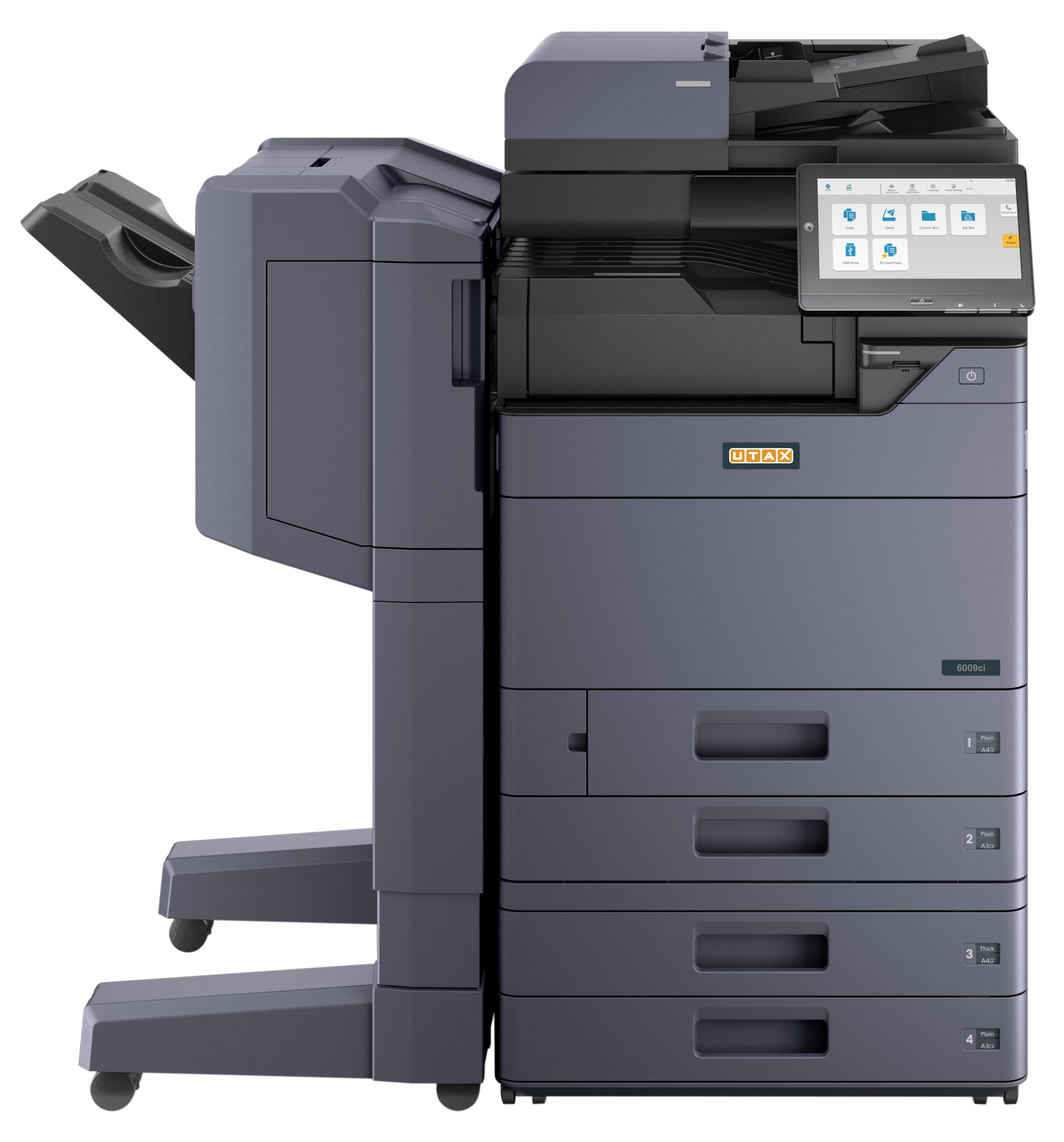

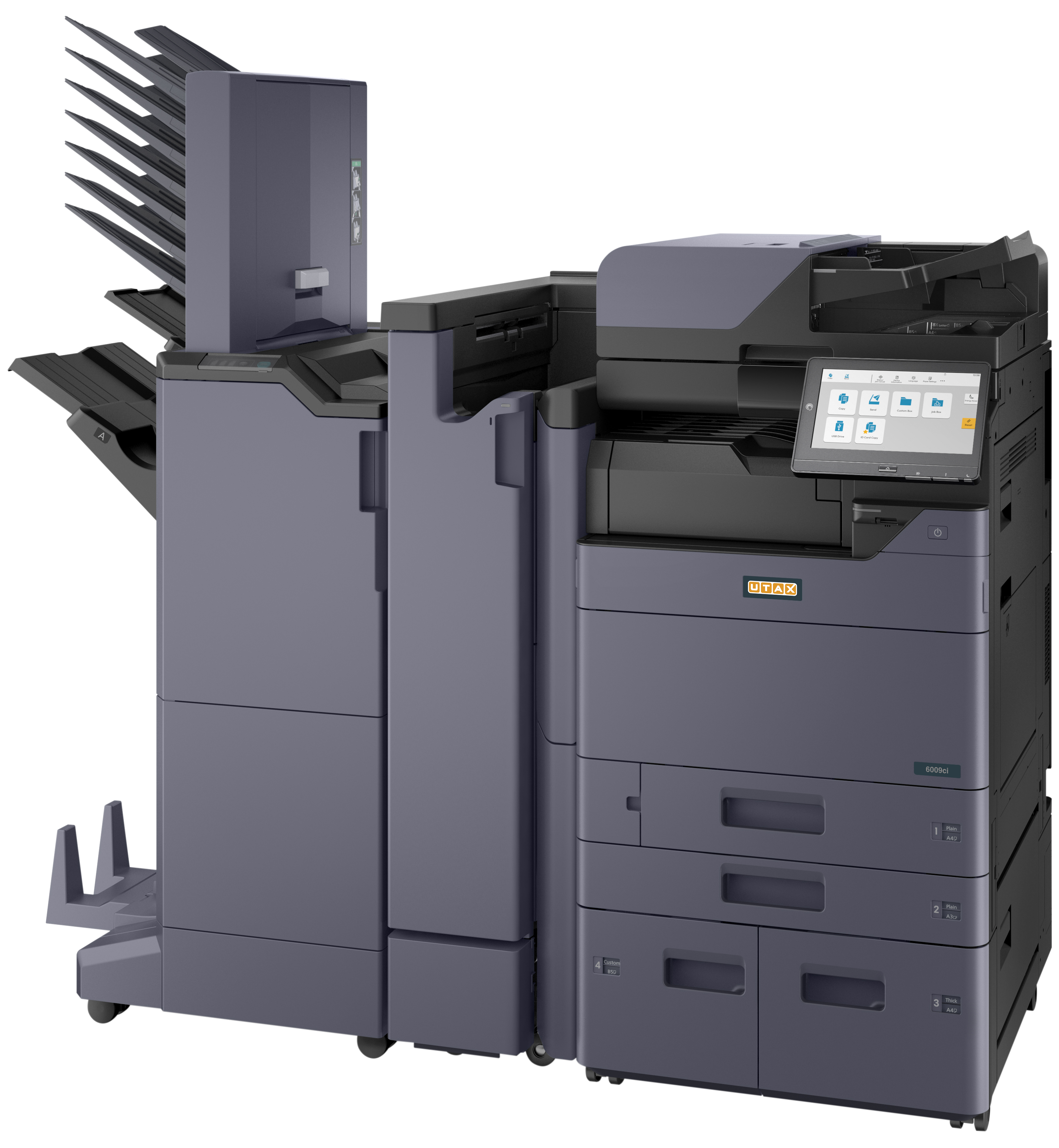

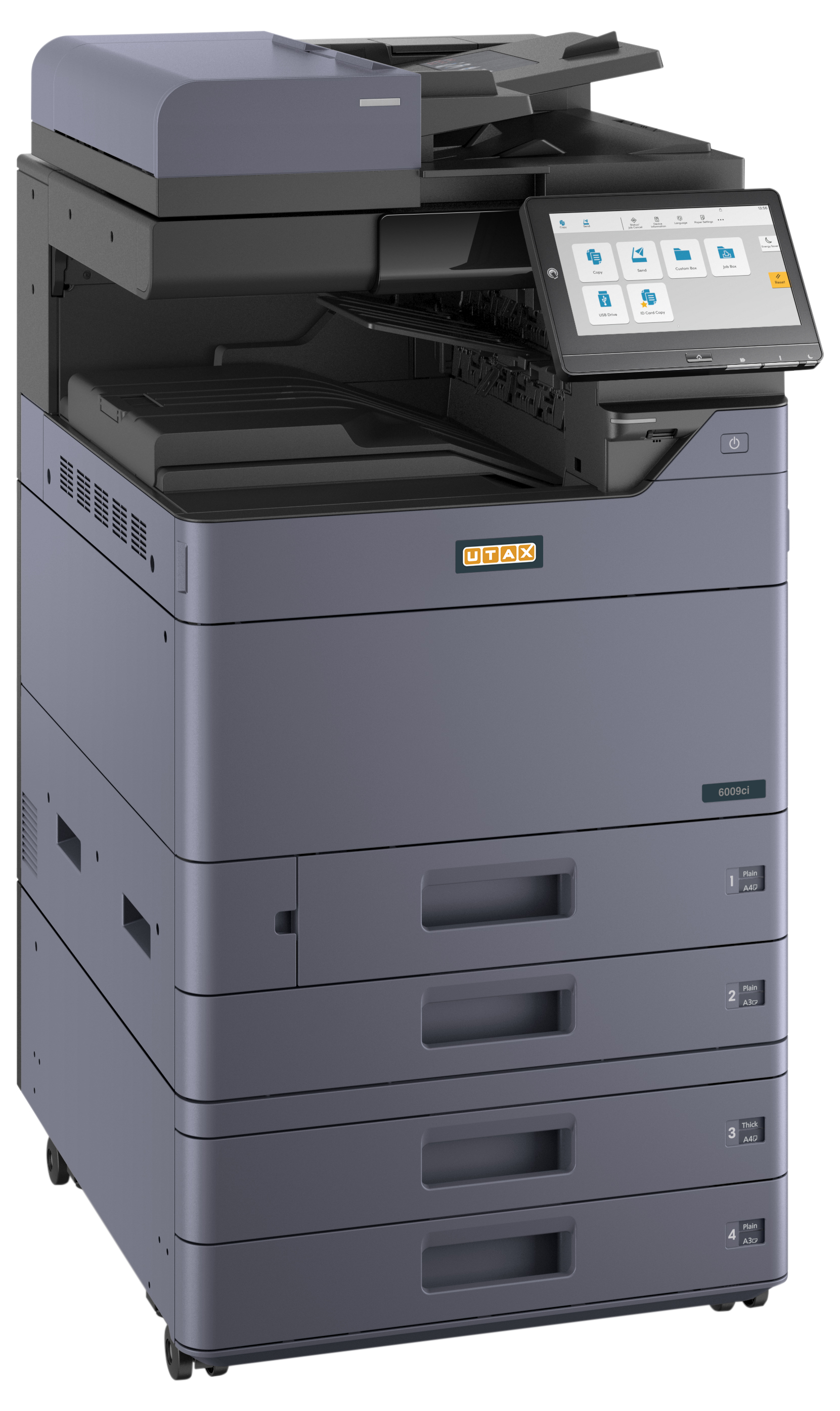

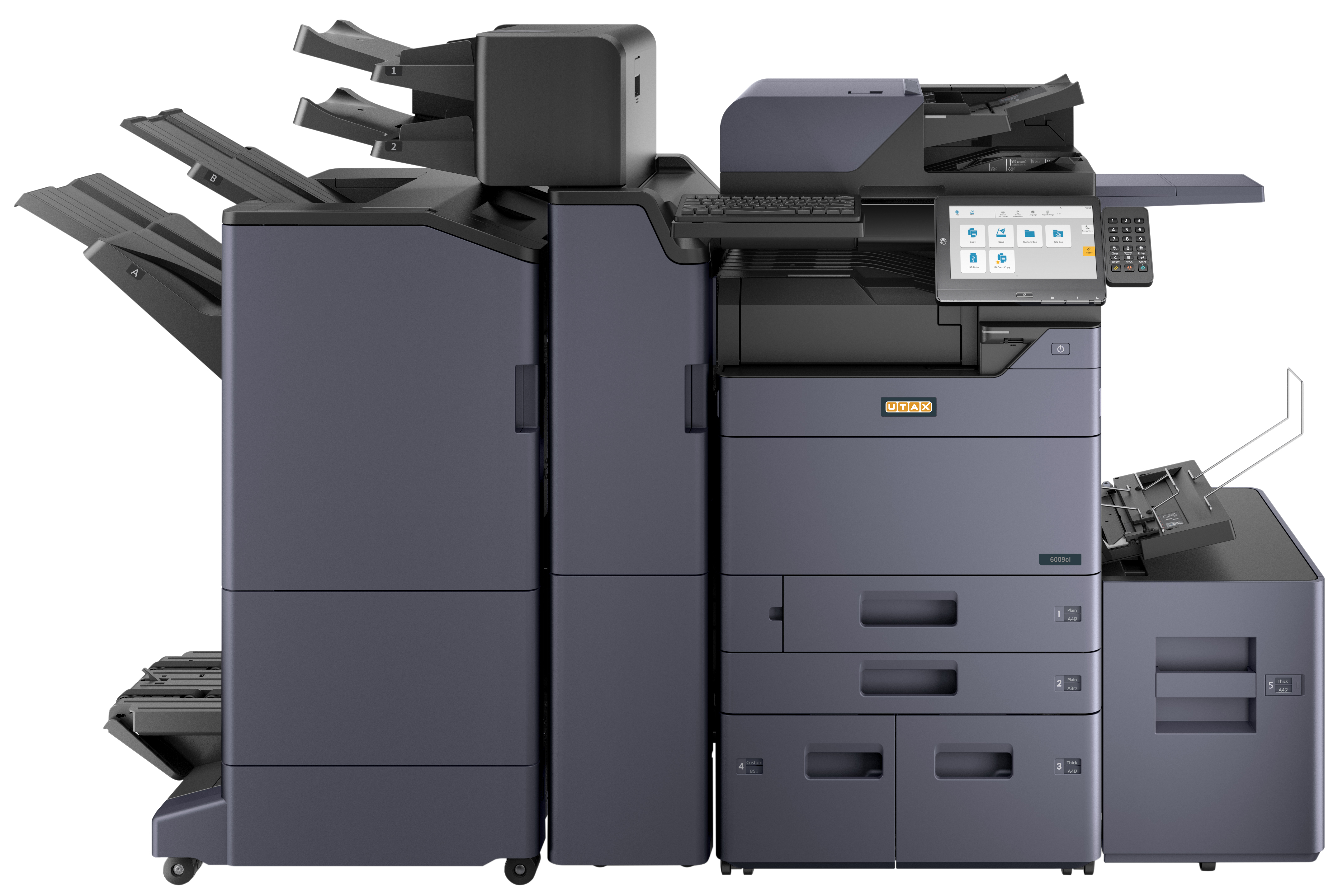

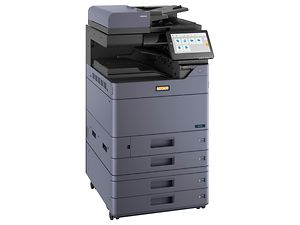

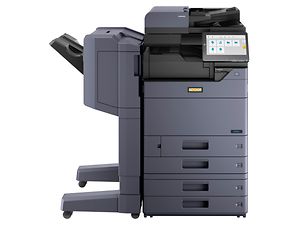

6009ci

Fast print processing, complex finishing options and increased simplification in the digitalisation process, these are just a few of the brilliant features that our A3 colour multifunctional systems possess. The 6009ci prints and copies at speeds of 60 A4 pages/minute in colour and b/w. The DP-7170 high-speed dual scanner with a scanning speed of up to 274 image pages per minute at 300 dpi and integrated ultrasonic sensor for multi-feed detection increases your productivity enormously when digitising your documents. At the same time, the additional integrated staple detection protects your originals from damage. The processing of different paper weights (52-300 g/m²) and formats from DIN A6R to SRA3 is not an obstacle for these systems either. On the hardware side, various finishers with a stapling function , brochure or Z-fold module and an inserter unit are available to extend the finishing process.
Find a Retailer

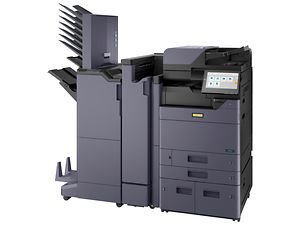

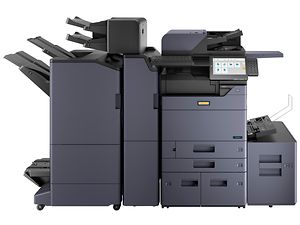

6009ci Image

General

  • TypeDesktop, Console Unit
  • FunctionCopy, print, scan, optional: fax
  • Print technologyLaser colour and b/w
  • Original formatmax A3 from platen glass
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)2 x 500 sheet universal cassettes
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (2nd cassette types)A6R-SRA3
  • Paper feed (Multi-Bypass amount)1 x 500 sheet, 1 x 500 sheet
  • Paper feed (Multi-Bypass types)A6R-SRA3, Banner [305 x 1,219 mm]
  • Paper feed (print-only)SRA3 and banner
  • Paper output500 sheet A4
  • System memory (Optional)320 GB HDD
  • FunctionsAdjustable colour touch screen (10.1 inch), Adjustable colour touch screen (10.1 inch), duplex, 1000 management codes, skip blank pages, motion sensor, encryption/overwriting of hard disk data (Data Security Kit and Trusted Platform Module), secure boot and run time integrity check, trusted platform modul (TPM), etc.
  • Print speed (A4, Simplex) B/W60.0 b/w-pages/min.
  • Print speed (A3, Simplex) B/W30.0 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W60.0 b/w-pages/min.
  • Copy speed (A3, Simplex) B/W30.0 b/w-pages/min.
  • Print speed (A4, Simplex) Colour60.0 colour pages/min
  • Print speed (A3, Simplex) Colour30.0 colour pages/min
  • Copy speed (A4, Simplex) Colour60.0 colour pages/min
  • Copy speed (A3, Simplex) Colour30.0 colour pages/min
  • 1st page (printing, colour)5.1 seconds
  • 1st page (printing, b/w)3.8 seconds
  • 1st page (copying, colour)4.4 seconds
  • 1st page (copying, b/w)3.4 seconds
  • Warm-up time17.0 seconds
  • Paper weights (Universal cassette min)52.0 g/m²
  • Paper weights (Universal cassette max)300.0 g/m²
  • Paper weights (Multi-Bypass min)52.0 g/m²
  • Paper weights (Multi-Bypass max)300.0 g/m²
  • Paper weights (Duplex min)60.0 g/m²
  • Paper weights (Duplex max)256.0 g/m²
  • System memory (RAM)4.0 GB
  • System memory (SSD)128.0 GB
  • Continuous copying (min)1.0
  • Continuous copying (max)9999.0
  • Zoom (min)25.0 %
  • Zoom (max)400.0 %
  • Zoom (step)1.0 %

Dimensions / Weight

Environment

  • Noise level (busy, b/w)54.3 dB(A)
  • Noise level (busy, colour)54.9 dB(A)
  • Noise level (standby)33.2 dB(A)
  • Mains voltage220/240 V
  • SafetyGS/TÜV, CE
  • Utility frequency50/60 Hz
  • Power consumption (busy)850.0 W
  • Power consumption (max)1750.0 W
  • Power consumption (TEC)0.79 kwh/week
  • Power consumption (standby)45.0 W
  • Power consumption (sleep)0.5 W

Printing system

  • Print resolution (max)1,200 x 1,200 dpi
  • Print resolution (min)600 x 600 dpi
  • EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), XPS, PRESCRIBE Ilc
  • FunctionsUSB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, barcode printing, SNMPv3, Mobile Print (Android, iOS)/Apple AirPrint
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
  • TypeIntegrated within the system
  • ProcessorARM A53 1,6GHz
  • InterfacesUSB 3.0, USB 2.0, 10/100/1000BaseTX, USB host, NFC, SD-Card Slot
  • Print formatA6R-SRA3
  • Network protocolsTCP/IP, Net BEUI

Scanning system

  • Scan speed (Feeder 1, duplex, b/w)274.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)137.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)274.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, colour)137.0 DIN-A4-image pages/min. in 300 dpi
  • Scan formatmax A3
  • File typesTIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, XPS, OpenXPS
  • Interfaces10/100/1000BaseTX
  • Network protocolTCP/IP
  • Optional feeder 1DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
  • Scan modePhoto, text, photo/text, optimised for OCR
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP
  • Scan typeCCD colour and b/w
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi

Fax system

  • One touch dial1000.0 numbers
  • Group dial500.0 numbers
  • Modem speed33.6 kbps
  • Abbreviated dial2000.0 numbers
  • Fax memory170.0 MB
  • CompatibilitySuper G3
  • Transmission speed3 seconds or less using JBIG
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception
  • TypeFaxsystem 12
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019
  • Compression methodJBIG, MMR, MR, MH
  • Original formatmax A3
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi), 600 x 600 dpi

Options

  • Other optionsScan extension kit (A), Internet fax kit (A), Card authentication kit (B), Keyboard holder 10, Banner guide 10, UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-51 WLAN card (IEEE802.11/b/g/n), IB-37 WLAN card (IEEE802.11a/b/g/n/ac), NK-7120 Numeric Keyboard (10 keys), DT-730(B) Document tray, cabinet no. 81, HD-15 (320 GB HDD), HD-16 (1 TB HDD), Fiery Printing System 17
  • FinisherDF-7100 internal finisher (capacity: 500 sheet A4, stapling max 50 sheet A4), DF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),, PH-7120 hole punch unit for DF-7100, PH-7C hole punch unit for DF-7120/7140, PH-7C hole punch unit for DF-7120/7140, BF-730 brochure module for DF-7140 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max X sheet A4), DF-7140 (capacity: 4,000 sheet A4, stapling max 65 sheet A4), MT- 730 (B) Multi Tray für DF-7140, IS-7100 Inserter for DF-7140/7150 (2 x 250 sheets paper feed A6R - SRA3), ZF-7100 Z-fold unit for DF-7140/7150 (Z-fold, engineering fold, tri-folding, saddle stich)
  • Original platen coverPlaten cover type E (if document processor is not installed)
  • Original feederDP-7150 document processor with automatic reverse function (A6R-A3, capacity: 140 sheet A4, paper weight 35- 160 g/m²), DP-7140 document processor with automatic reverse function (A5R-A3, capacity: 50 sheet A4, paper weight 45-160 g/m²), DP-7160 document processor with simultaneous duplex scanning (A6R-A4, capacity: 320 sheet A4, paper weight 35-220 g/m²), DP-7170 document processor with simultaneous duplex scanning and multi-feed detection (A6R-A3, capacity: 320 sheet A4, paper weight 35-220 g/m²)
  • Job SeparatorJS-7100 (100 sheet, 52-300 g/m², A6R - SRA3), JS-7110 inner shift tray (250 sheet, 52-300 g/m², A6R - SRA3)
  • Paper feedPF-7140 (2 x 500 sheet universal cassettes [A5R-SRA3]), PF-7150 (2 x 1,500 sheet large capacity cassette [A4]), PF-7120 (3,000 sheet large capacity tray [A4], side deck)

Notes on technical data

  1. for copy, print, scan, fax↩
  2. DIN/ISO 7779/9296↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. depending on the operating status↩
  6. depending on the operating status↩
  7. depending on the operating status↩
  8. for copy, print, scan, fax↩
  9. with DP↩
  10. with DP↩
  11. with DP↩
  12. with DP↩
  13. DIN/ISO 7779/9296↩
  14. DIN/ISO 7779/9296↩
  15. optional↩
  16. optional↩
  17. additional memory required for full functionality↩
