P-2540i MFP

This compact A3 multifunctional offers just about all your team needs to easily cope with their daily office tasks. Equipped with an automatic original feeder, an integrated duplex unit for paper-saving double-sided printing, a paper supply of 600 sheet as well as a 50-sheet job separator, you can easily upgrade it any time in line with your necessities. With an optional fax kit, for example, or additional paper cassettes, a WLAN card or even a hard disk. Its intuitive operation and handy HyPAS apps make it your ideal office partner.
Find a Retailer

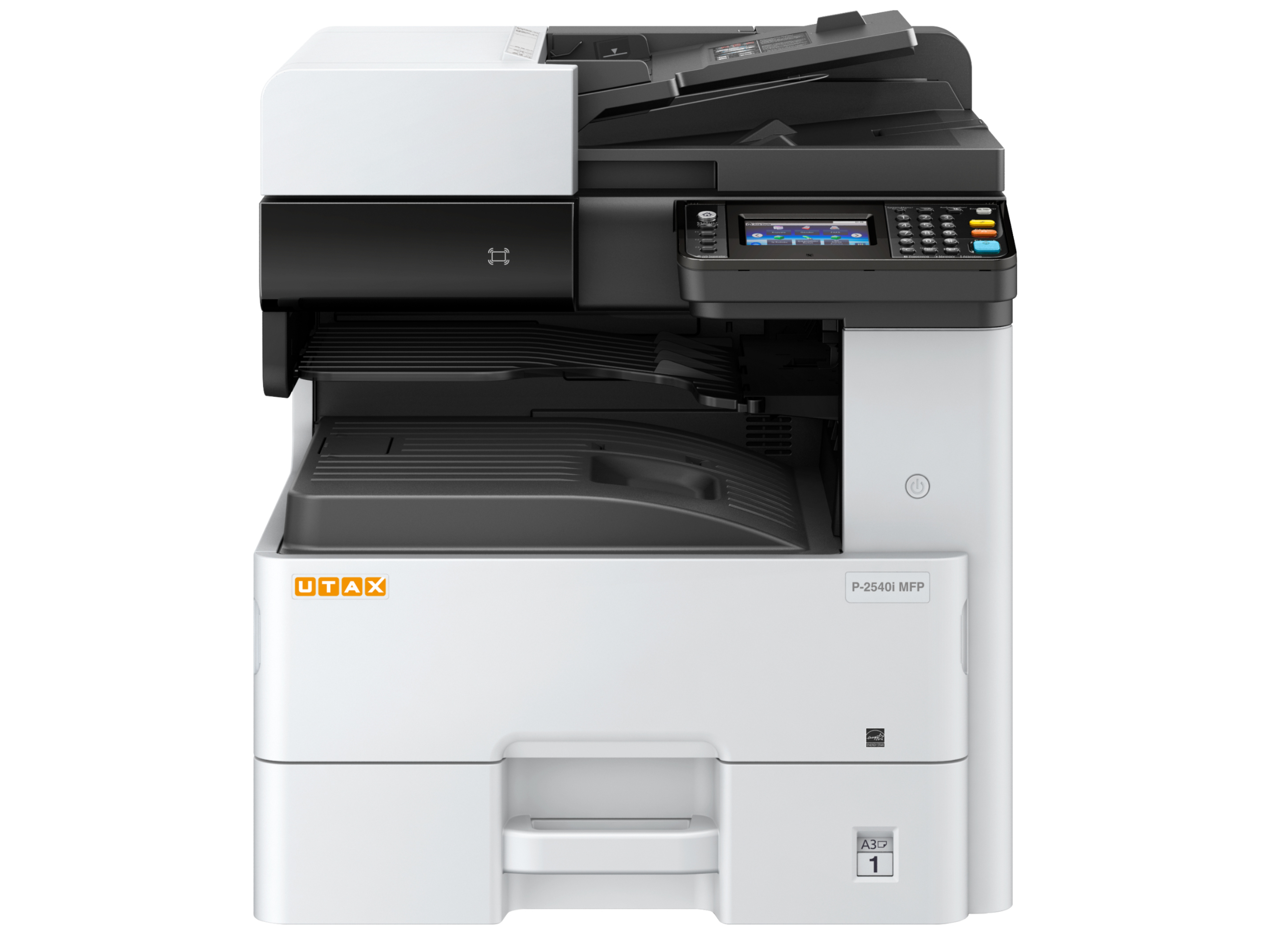

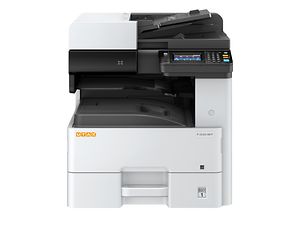

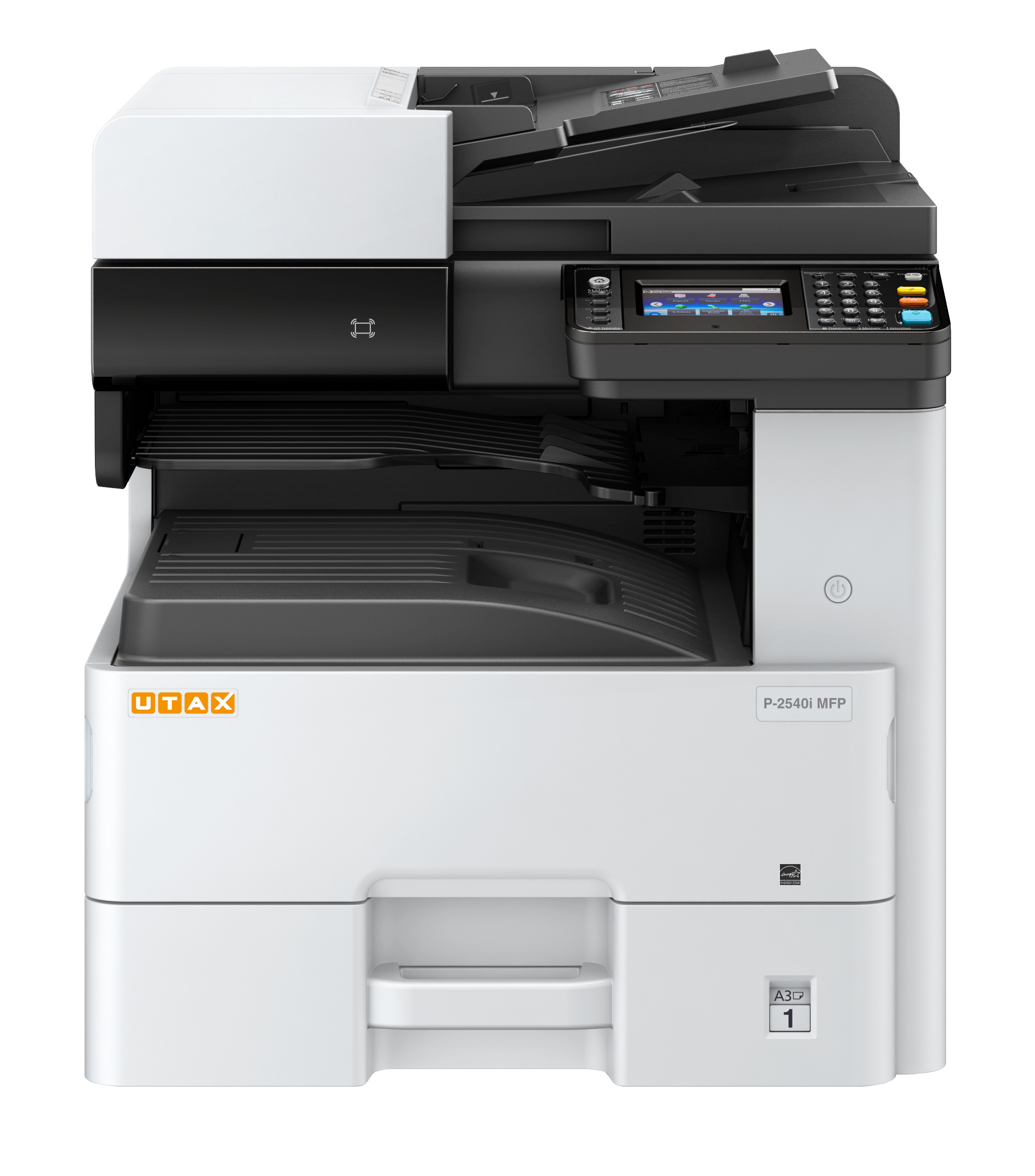

P-2540i MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, optional: fax
  • Print technologyLaser b/w
  • Original formatmax A3 from platen glass
  • Original feeder50 sheet A4 (standard), min 140 x 182 mm, max 297 x 432 mm, 45-160 g/m² (simplex), 50-120 g/m² (duplex)
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet, 1 x 500 sheet
  • Paper feed (1st cassette types)A5R-A3
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A3
  • Paper output250 sheet A4
  • Job Separator50 sheet A4 (standard)
  • System memory (Optional)32/128 GB SSD
  • FunctionsColour touch screen (4.3 inch), duplex, Print from/Scan to USB Stick, job reservation, N-up, favourites, 100 management codes, etc.
  • Print speed (A4, Simplex) B/W25.0 b/w-pages/min.
  • Print speed (A3, Simplex) B/W12.0 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W25.0 b/w-pages/min.
  • Copy speed (A3, Simplex) B/W12.0 b/w-pages/min.
  • 1st page (printing, b/w)5.8 seconds
  • 1st page (copying, b/w)5.8 seconds
  • Warm-up time19.5 seconds
  • Paper weights (Universal cassette min)60.0 g/m²
  • Paper weights (Universal cassette max)163.0 g/m²
  • Paper weights (Multi-Bypass min)45.0 g/m²
  • Paper weights (Multi-Bypass max)256.0 g/m²
  • Paper weights (Duplex min)60.0 g/m²
  • Paper weights (Duplex max)163.0 g/m²
  • System memory (RAM)1.0 GB
  • System memory (RAM max)3.0 GB
  • Continuous copying (min)1.0
  • Continuous copying (max)999.0
  • Zoom (min)25.0 %
  • Zoom (max)400.0 %
  • Zoom (step)1.0 %

Dimensions / Weight

Environment

  • Noise level (busy, b/w)44.9 dB(A)
  • Mains voltage220/240 V
  • SafetyGS/TÜV, CE
  • Utility frequency50 Hz
  • Power consumption (busy)410.0 W
  • Power consumption (max)1270.0 W
  • Power consumption (standby)65.0 W
  • Power consumption (sleep)0.5 W

Printing system

  • Print resolution (max)1,200 x 1,200 dpi
  • EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, PDF 1.7, XPS
  • FunctionsUSB direct printing, printing of e-mails, PDF/XPS direct printing, private printing, barcode printing, Mobile Print (Android/iOS), Apple AirPrint, Google Cloud Print, Wi-Fi
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Novell NetWare, Linux, Mac ex OS 10.5, Mac ex OS 10.5
  • TypeIntegrated within the system
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), NFC, Wi-Fi
  • Print formatA6R-A3
  • Network protocolsTCP/IP, Net BEUI

Scanning system

  • Scan speed (Feeder 1, duplex, b/w)16.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)50.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)16.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, colour)50.0 DIN-A4-image pages/min. in 300 dpi
  • Scan formatmax A3
  • File typesTIFF, PDF, XPS, OpenXPS, high compression PDF, JPEG
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016
  • Scan modePhoto, text, photo/text, optimised for OCR
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP
  • Scan typeCIS colour and b/w
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi

Fax system

  • One touch dial100.0 numbers
  • Group dial50.0 numbers
  • Modem speed33.6 kbps
  • Abbreviated dial200.0 numbers
  • Fax memory16.0 MB
  • Fax memory (image)12.0 MB
  • CompatibilitySuper G3
  • Transmission speed3 seconds or less using JBIG
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission
  • Typeoptional Fax System 13
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016
  • Compression methodJBIG, MMR, MR, MH
  • Original formatmax A3
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)

Options

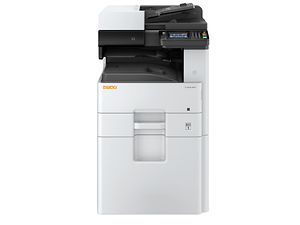

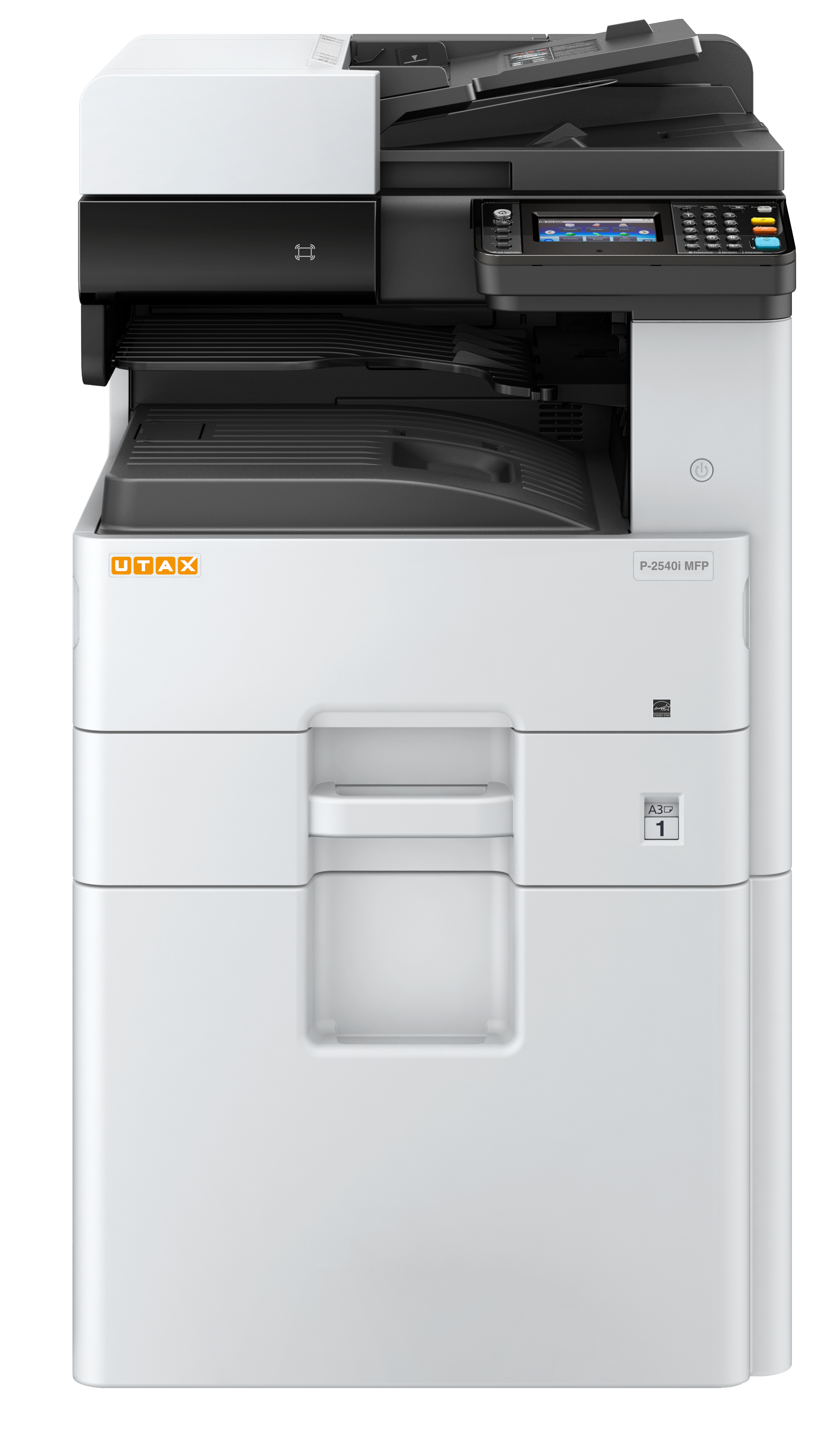

  • Other optionsData security kit (E), Data security kit (E), Scan extension kit (A), Card authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), cabinet no. 62

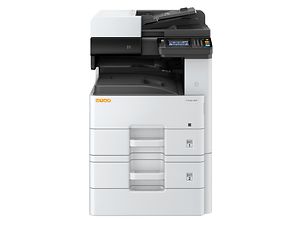

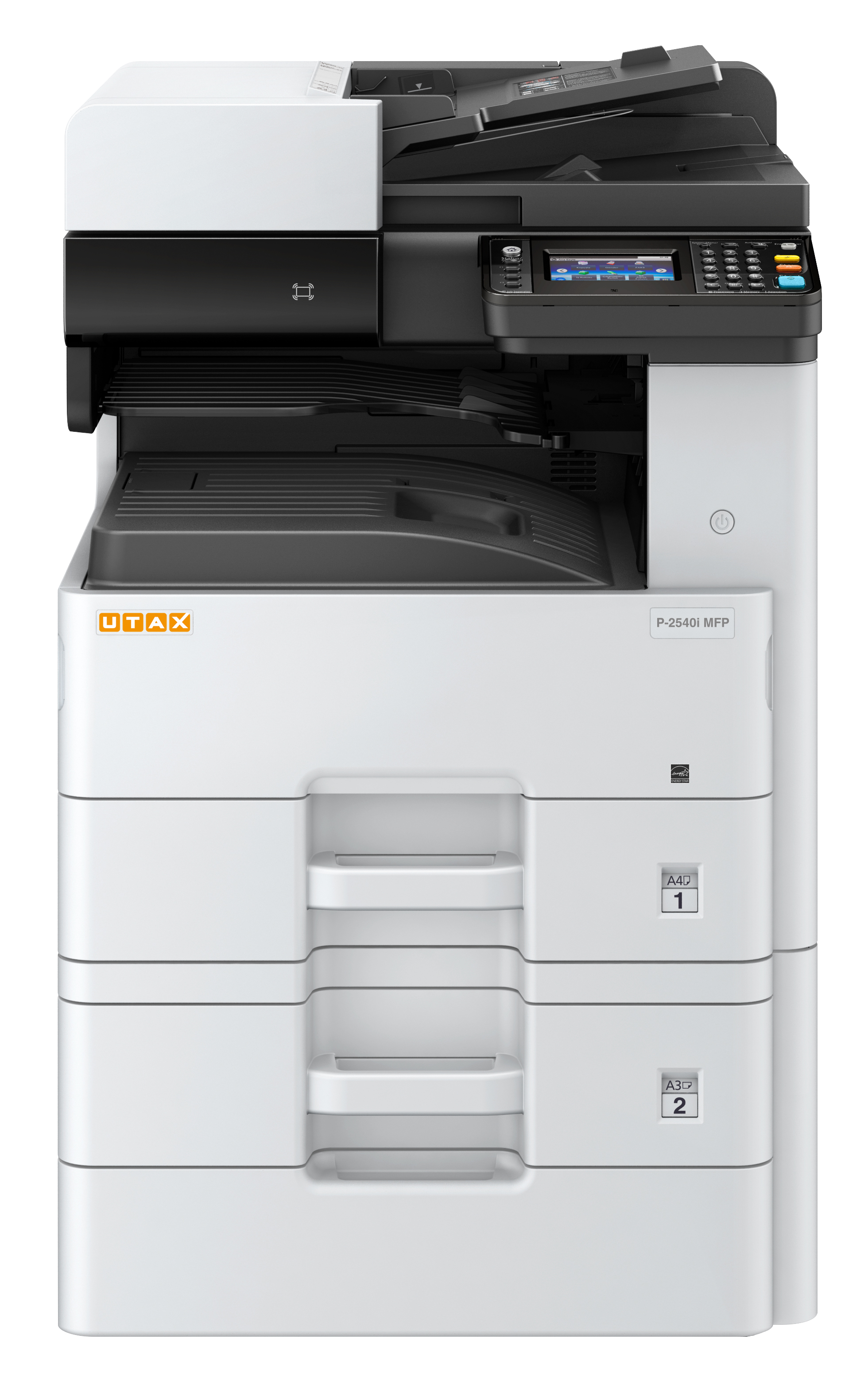

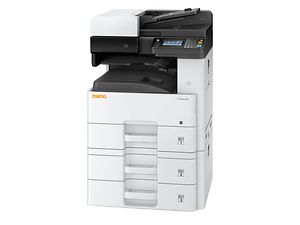

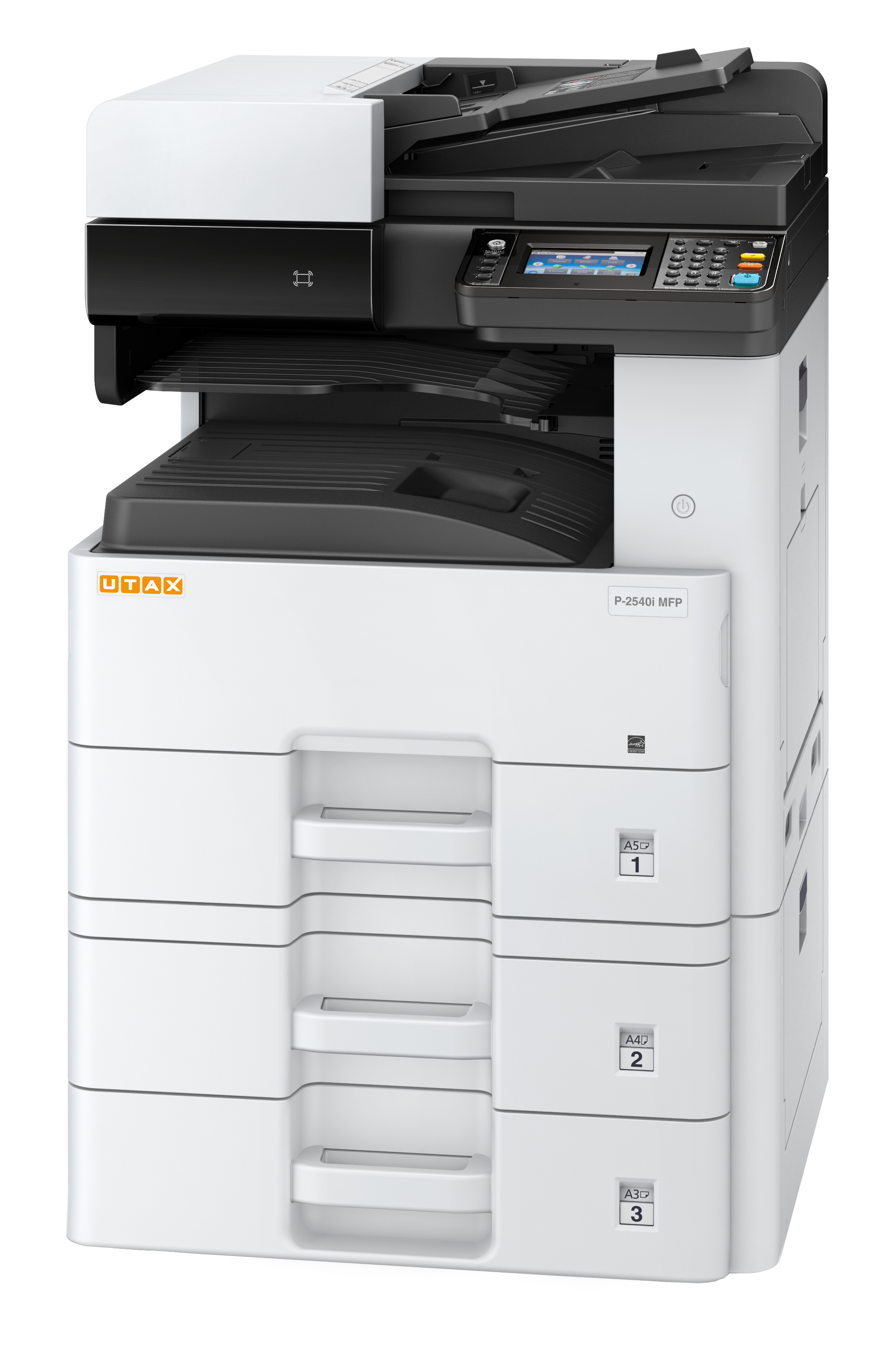

  • Paper feedPF-470 (1 x 500 sheet universal cassettes (A5R-A3)), PF-471 (2 x 500 sheet universal cassettes (A5R-A3))

Notes on technical data

  1. DIN/ISO 7779/9296↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. with DP↩
  6. with DP↩
  7. with DP↩
  8. with DP↩
  9. DIN/ISO 7779/9296↩
  10. optional↩
  11. optional↩
  12. optional↩
  13. optional↩
  14. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.↩
  15. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.↩
  16. additional memory required for full functionality↩
