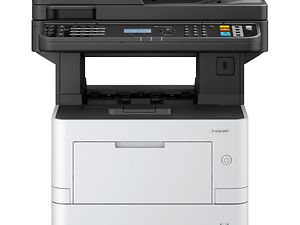

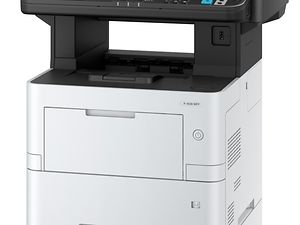

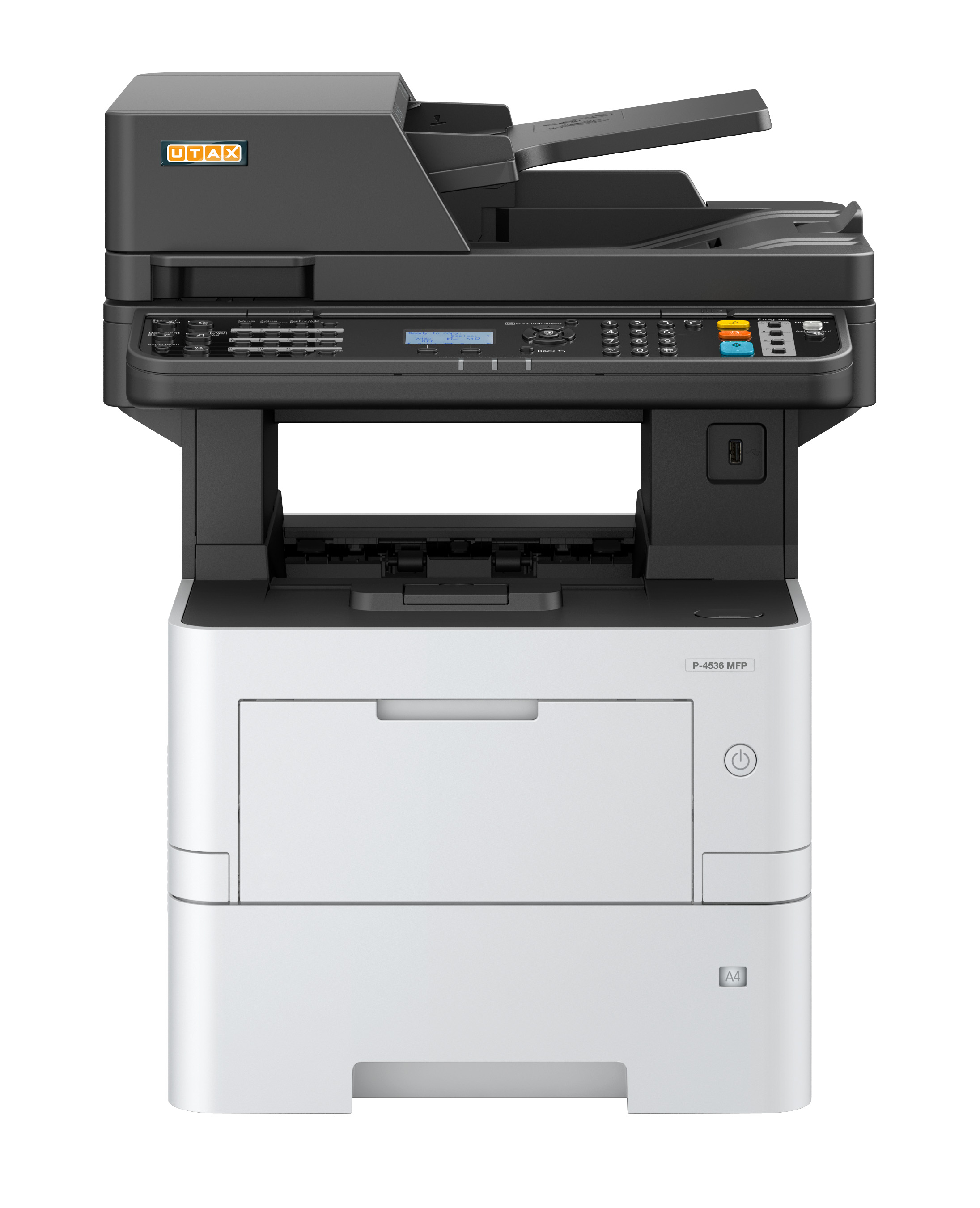

P-4536 MFP

If you are looking for a productive b/w multifunctional that works quietly and has a low footprint at the same time, the P-4536 MFP is your choice! It offers versatile features and deals with your documents in a safe and secure manner, while scoring high on the environmental balance. Despite its high print speed of up to 45 A4 pages/min, the P-4536 MFP is surprisingly silent thanks to its “Quiet Mode” that can be activated at any time if need be. This way its operation noise is very low even in the busiest of moments.
Find a Retailer

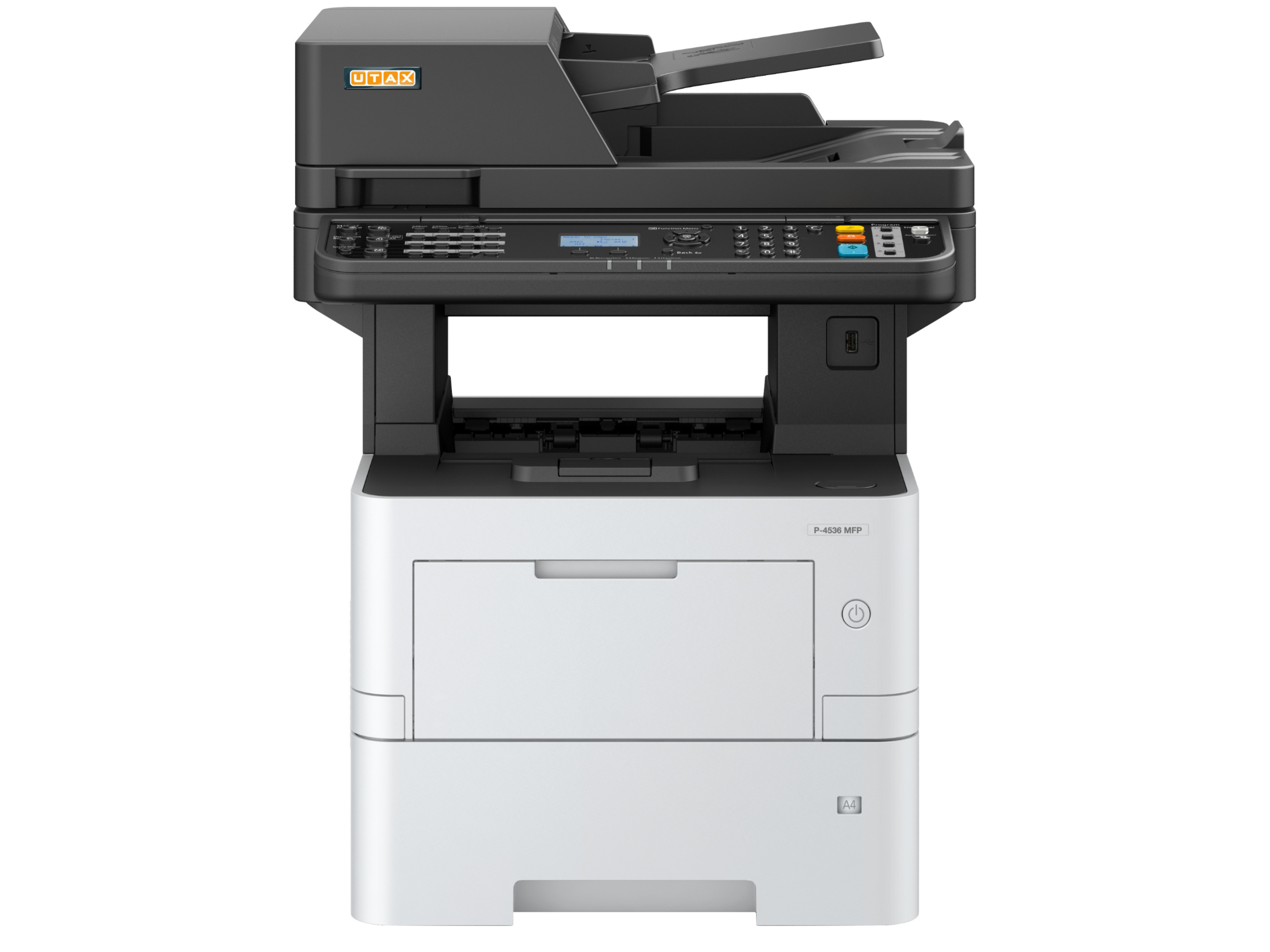

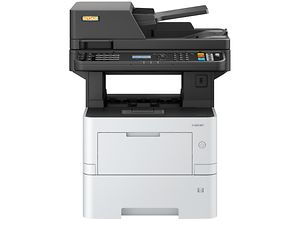

P-4536 MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, fax
  • Print technologyLaser b/w
  • Original formatmax A4 from platen glass
  • Original feeder75 sheet document processor with automatic reverse function, A6R-A4, 50-120 g/m² (standard)
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet, 1 x 500 sheet
  • Paper feed (1st cassette types)A5R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • Paper output250 sheet A4 (face-down)
  • System memory (Optional)32/128 GB SSD
  • Functionsduplex, job reservation, ID card copy, Scan once - Copy Many, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), 100 management codes
  • Print speed (A4, Simplex) B/W45.0 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W45.0 b/w-pages/min.
  • Print speed (A4, Duplex) B/W22.5 b/w-pages/min.
  • 1st page (printing, b/w)5.3 seconds
  • 1st page (copying, b/w)7.0 seconds
  • Warm-up time16.0 seconds
  • Paper weights (Universal cassette min)60.0 g/m²
  • Paper weights (Universal cassette max)120.0 g/m²
  • Paper weights (Multi-Bypass min)60.0 g/m²
  • Paper weights (Multi-Bypass max)220.0 g/m²
  • Paper weights (Duplex min)60.0 g/m²
  • Paper weights (Duplex max)120.0 g/m²
  • System memory (RAM)1.0 GB
  • System memory (RAM max)3.0 GB
  • Continuous copying (min)1.0
  • Continuous copying (max)999.0
  • Zoom (min)25.0 %
  • Zoom (max)400.0 %
  • Zoom (step)1.0 %

Dimensions / Weight

Environment

  • Noise level (busy, b/w)52.0 dB(A)
  • Noise level (standby)27.2 dB(A)
  • Mains voltage220/240 V
  • Utility frequency50 Hz
  • Power consumption (busy)630.0 W
  • Power consumption (max)1276.0 W
  • Power consumption (standby)50.0 W
  • Power consumption (sleep)0.5 W

Printing system

  • Print resolution (max)1,200 x 1,200 dpi
  • EmulationsPCL6 (PCL 5e/c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, XPS, Open XPS, PDF 1.7
  • FunctionsUSB direct printing, printing of e-mails, PDF direct printing, private printing, barcode printing, WSD-/Internet printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Novell NetWare, Linux, Mac ex OS 10.5, Mac ex OS 10.5
  • TypeIntegrated within the system
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host
  • Print formatA6R-A4
  • Network protocolsTCP/IP, Net BEUI

Scanning system

  • Scan speed (Feeder 1, duplex, b/w)26.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)60.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)17.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, colour)40.0 DIN-A4-image pages/min. in 300 dpi
  • Scan formatmax A4
  • File typesTIFF, JPEG, PDF, PDF/A-1a, PDF/A, PDF/A-1b, PDF/A-2a, PDF/A-2b, PDF/A-2u, high compression PDF, encrypted PDF, XPS, OpenXPS
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2003, Server 2008 R2, Server 2012 R2, Server 2016
  • Scan modePhoto, text, photo/text, optimised for OCR
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP
  • Scan typeCCD colour and b/w
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi

Fax system

  • One touch dial100.0 numbers
  • Group dial50.0 numbers
  • Modem speed33.6 kbps
  • Abbreviated dial200.0 numbers
  • Fax memory8.0 MB
  • Fax memory (image)3.5 MB
  • CompatibilitySuper G3
  • Transmission speed3 seconds or less using JBIG
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission
  • TypeIntegrated within the system
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Server 2008 R2, Server 2012 R2, Server 2016
  • Compression methodJBIG, MMR, MR, MH
  • Original formatmax A4
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)

Options

  • Other optionsData security kit (E), Data security kit (E), Card authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), cabinet no. 79 (high), cabinet no. 80 (low)

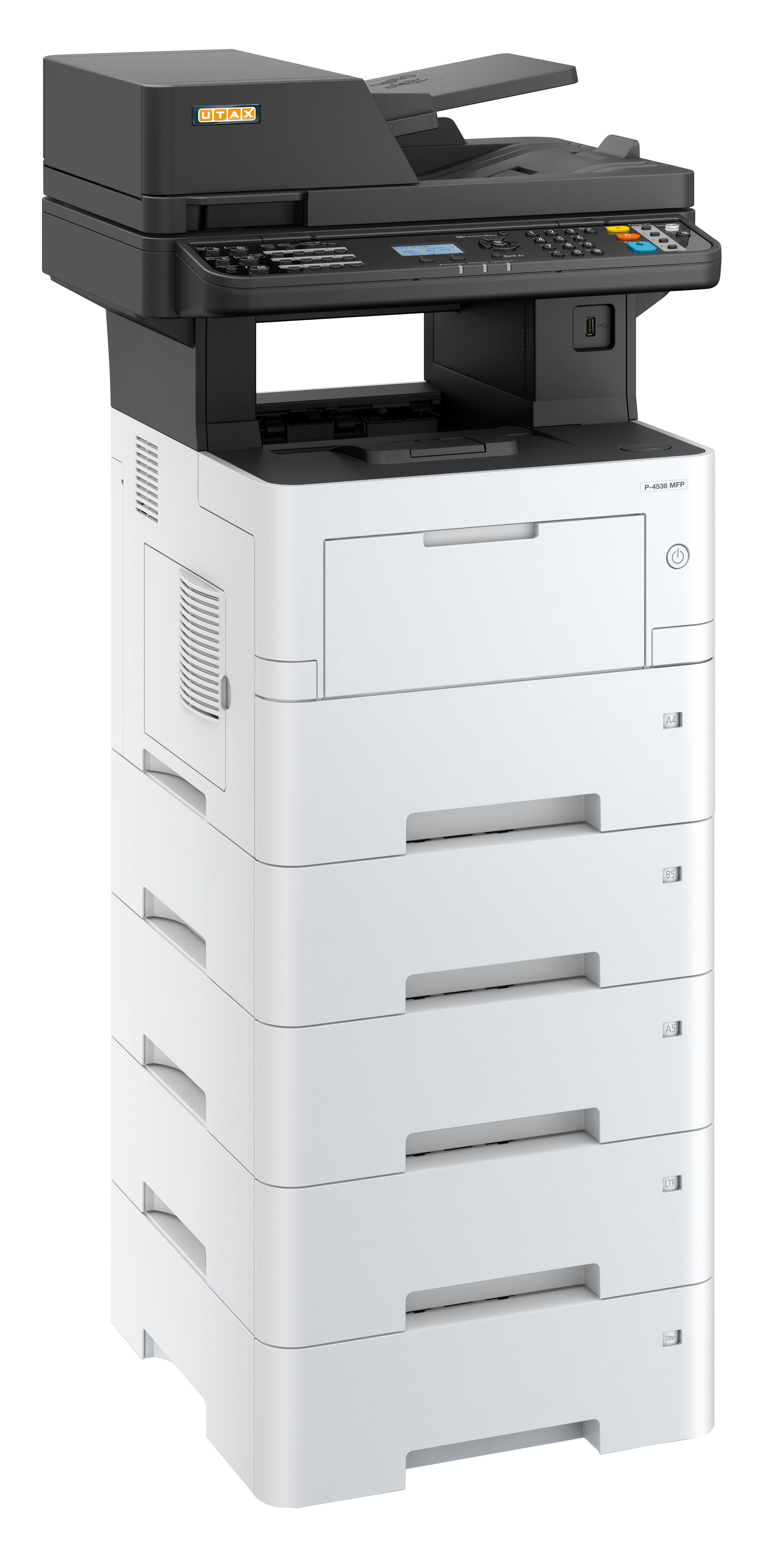

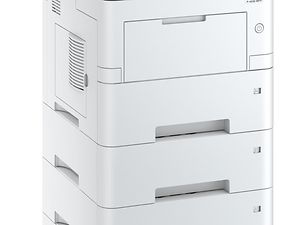

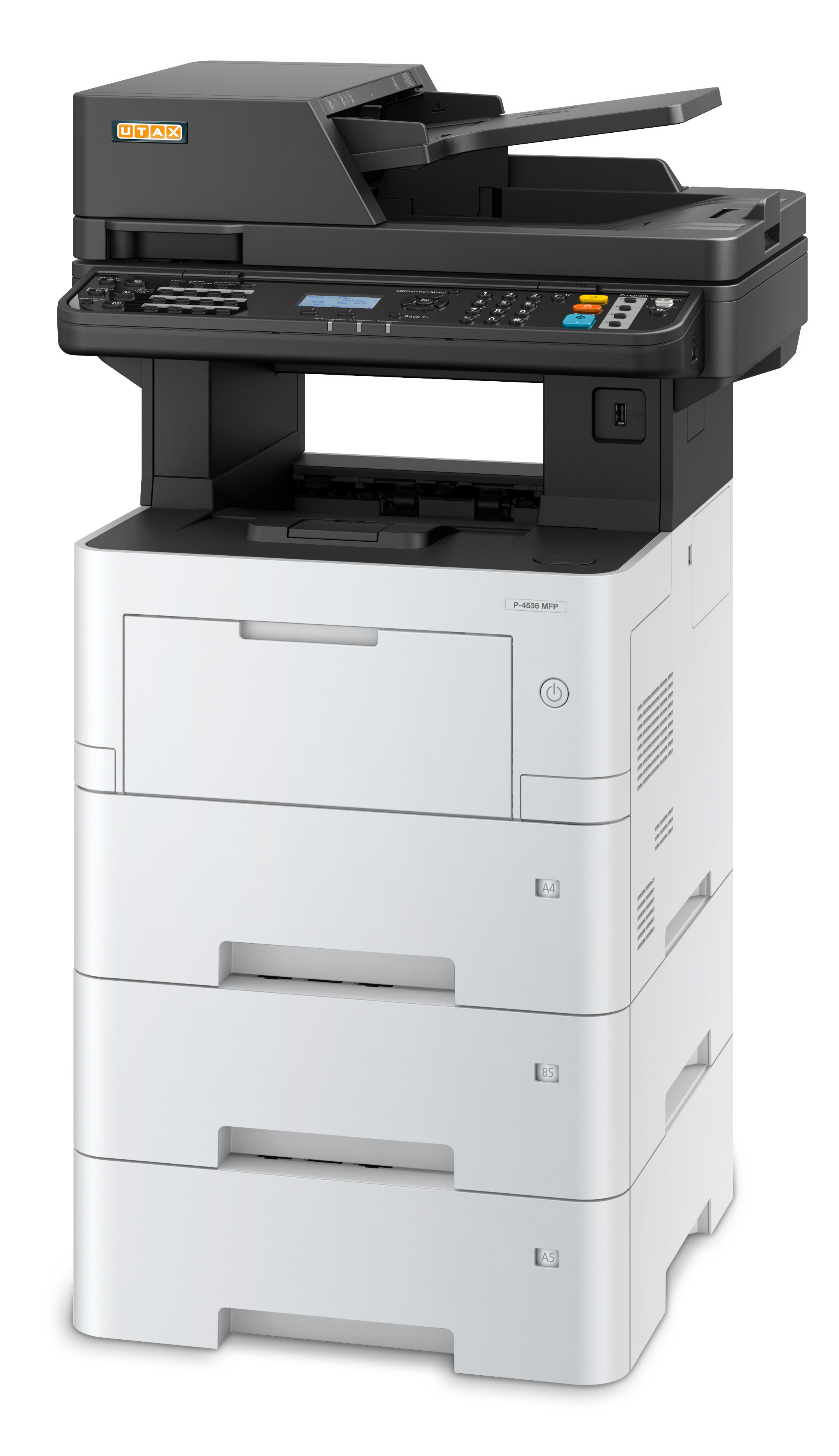

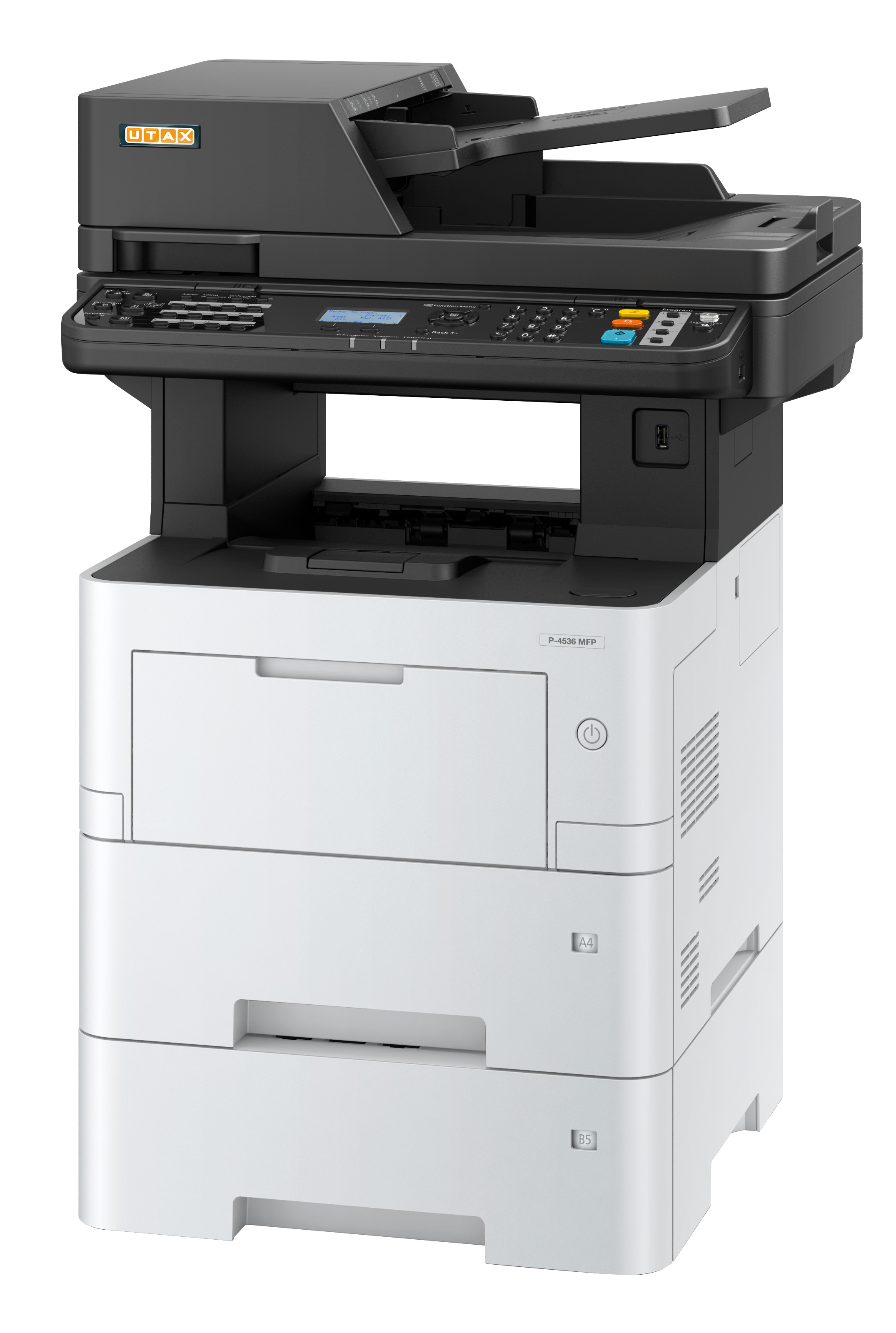

  • Paper feedmax 4 x PF-3110 (500 sheet universal cassettes (A5R-A4, 60-120 g/m²])

Notes on technical data

  1. DIN/ISO 7779/9296↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. with DP↩
  6. with DP↩
  7. with DP↩
  8. with DP↩
  9. DIN/ISO 7779/9296↩
  10. DIN/ISO 7779/9296↩
  11. optional↩
  12. optional↩
  13. optional↩
  14. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.↩
  15. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.↩
