General
- TypeDesktop
- Functionprint
- Print technologyLaser b/w
- Print formatmax A4
- Greyscales256
- Paper feed (Universal cassettes amount)1 x 500 sheet, 1 x 500 sheet
- Paper feed (1st cassette types)A5R-A4
- Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
- Paper feed (Multi-Bypass types)A6R-A4, 216 × 356 mm -70 × 139.7 mm, banner: 915 mm length
- Paper output500 sheet A4
- Printing resolution (max)1,200 x 1,200 dpi
- FunctionsUSB direct printing, PDF direct printing, printing of e-mails, private printing, quiet mode (half speed mode), barcode printing, banner print (max 915 mm) from multi-bypass, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi Direct®
- InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), SD-Card Slot
- EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, XPS, Open XPS, PDF 1.7
- Network protocolsTCP/IP, Net BEUI
- Operating systemsWindows 8, Windows 8.1, Windows 10, Server 2012, Server 2012 R2, Server 2016, Server 2019, Linux, Mac ex OS 10.9
- Print speed (A4, Simplex) B/W60.0 b/w-pages/min.
- Print speed (A4, Duplex) B/W43.0 b/w-pages/min.
- 1st page (printing, b/w)4.5 seconds
- Warm-up time25.0 seconds
- Paper weights (Universal cassette min)60.0 g/m²
- Paper weights (Universal cassette max)120.0 g/m²
- Paper weights (Multi-Bypass min)60.0 g/m²
- Paper weights (Multi-Bypass max)220.0 g/m²
- Paper weights (Duplex min)60.0 g/m²
- Paper weights (Duplex max)120.0 g/m²
- Paper weights (Banner min)60.0 g/m²
- Paper weights (Banner max)220.0 g/m²
- System memory (RAM)0.5 GB
- System memory (RAM max)2.5 GB
Dimensions / Weight
Environment
- Noise level (busy, b/w)52.0 dB(A)
- Noise level (standby)30.0 dB(A)
- Mains voltage220/240 V
- SafetyGS/TÜV, CE
- Utility frequency50/60 Hz
- Power consumption (busy)710.2 W
- Power consumption (max)1258.0 W
- Power consumption (TEC)0.79 kwh/week
- Power consumption (standby)9.0 W
- Power consumption (sleep)0.5 W
Options
- Other optionsData security kit (E), Data security kit (E), Card authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, cabinet no. 79 (high), cabinet no. 80 (low), caster kit CA-3100, HD-18 SSD (256 GB), HD-17 SSD (64 GB), HD-19 SSD (512 GB), IB-37 WLAN card (IEEE802.11a/b/g/n/ac), IB-38 W-LAN card**** (IEEE802.11 b/g/n Wi-Fi direct)

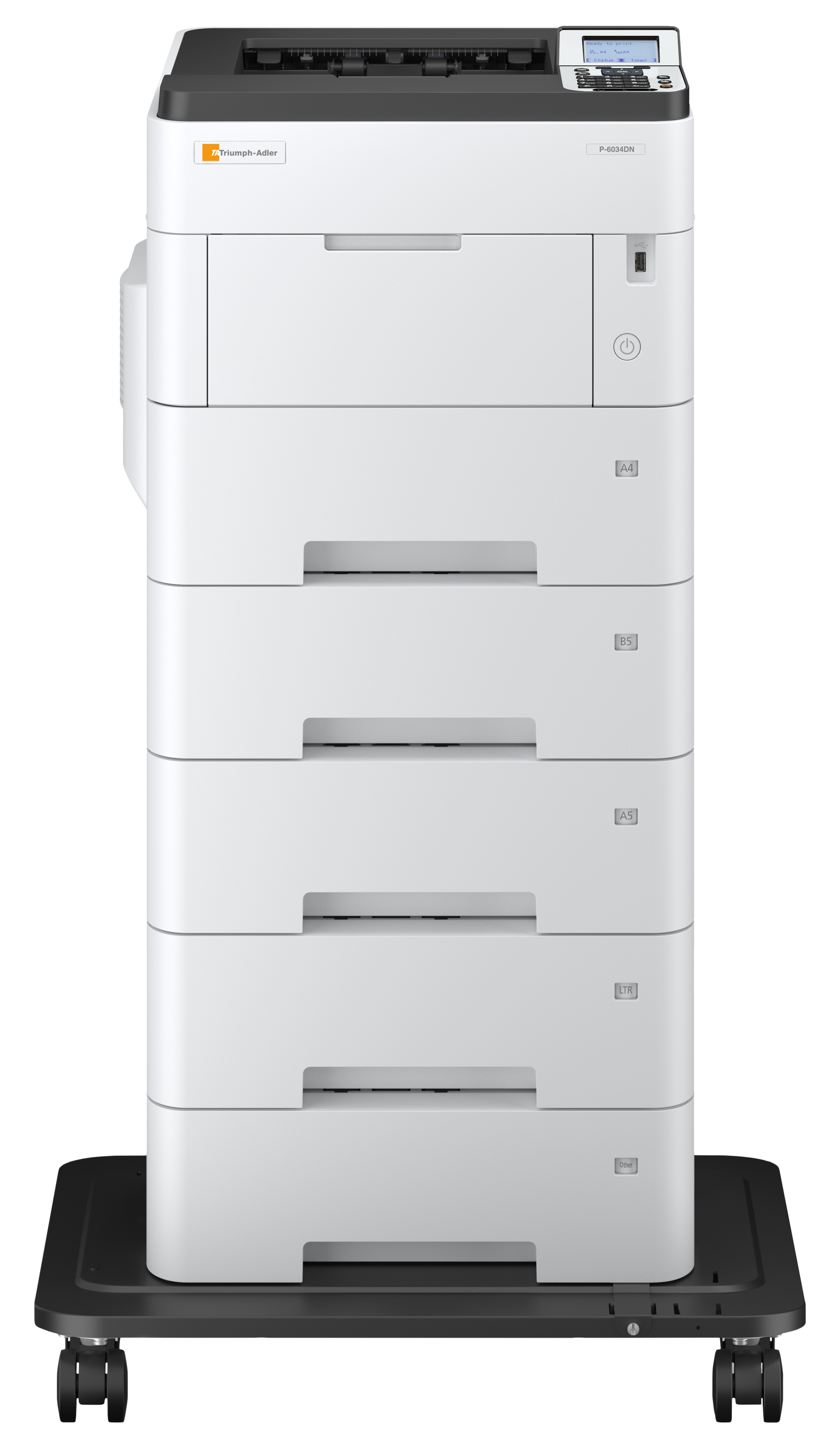

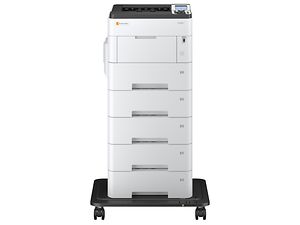

- Paper feedmax 4 x PF-3110 (500 sheet universal cassettes [A5R-A4, 60-120 g/m²]), max 1 x PF-3100 (2,000 sheet large capacity tray [A5R-A4, 60-220g/m²]), PB-325 (Attachment Kit is required for PF-3100)
