P-6038if MFP

The P-6038if MFP makes sure you‘re utilising your precious time as efficiently as possible: this b/w system prints like clockwork and scans, copies or faxes your documents just like that. And of course, it meets the latest security standards and features very positive environmental properties. And the icing on the cake: it offers up to 3 output trays and automatically staples your documents.
Find a Retailer

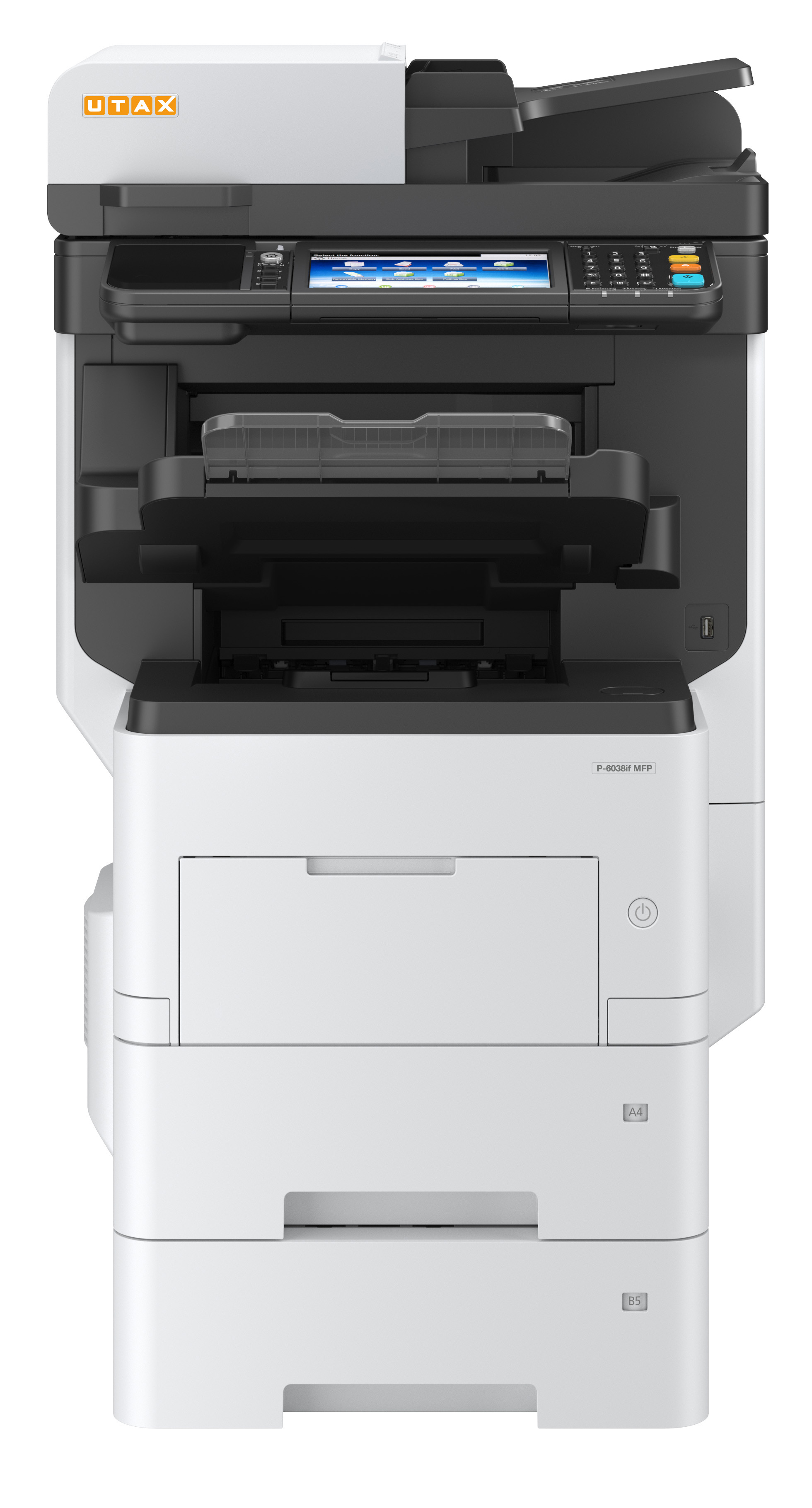

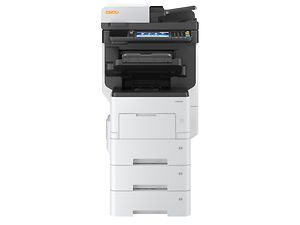

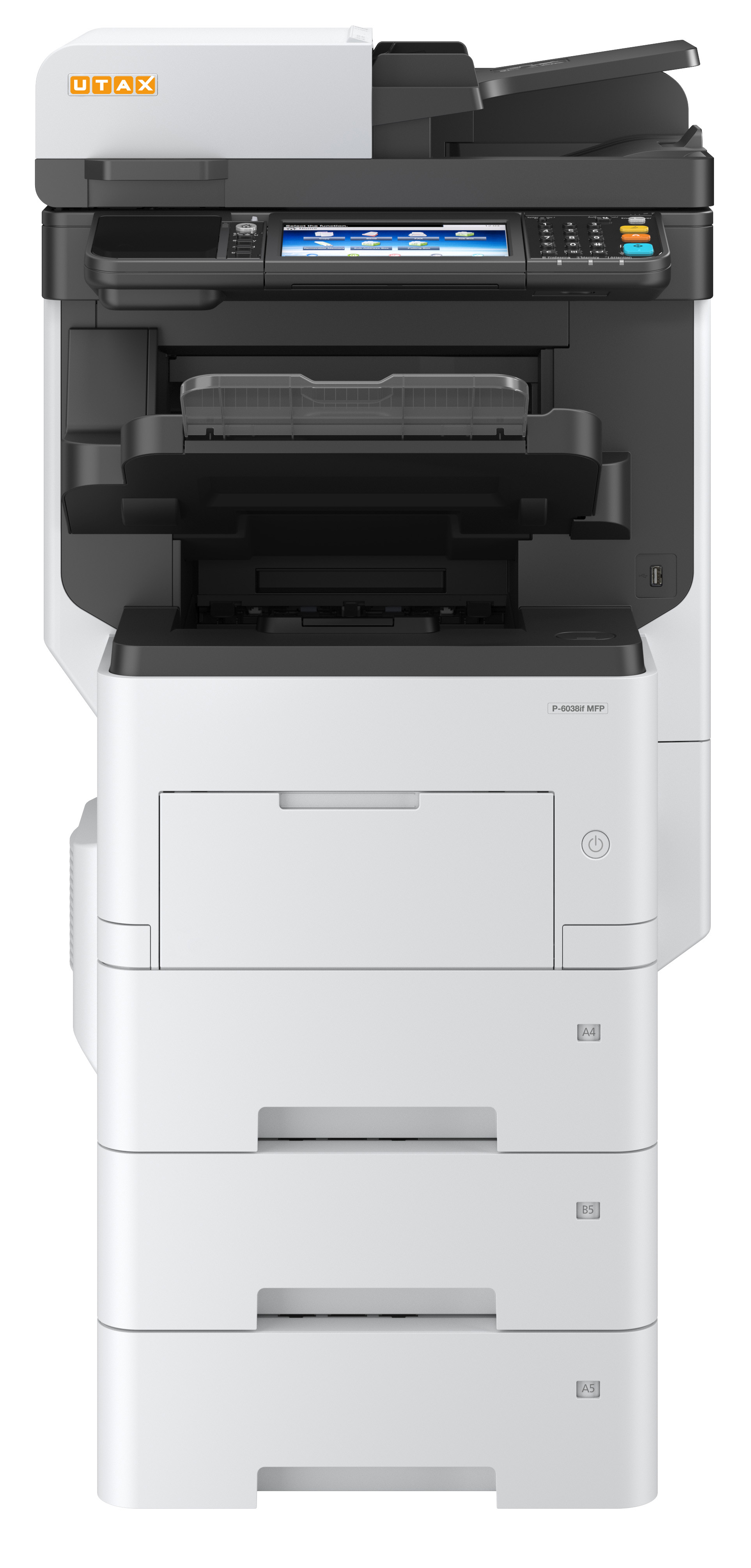

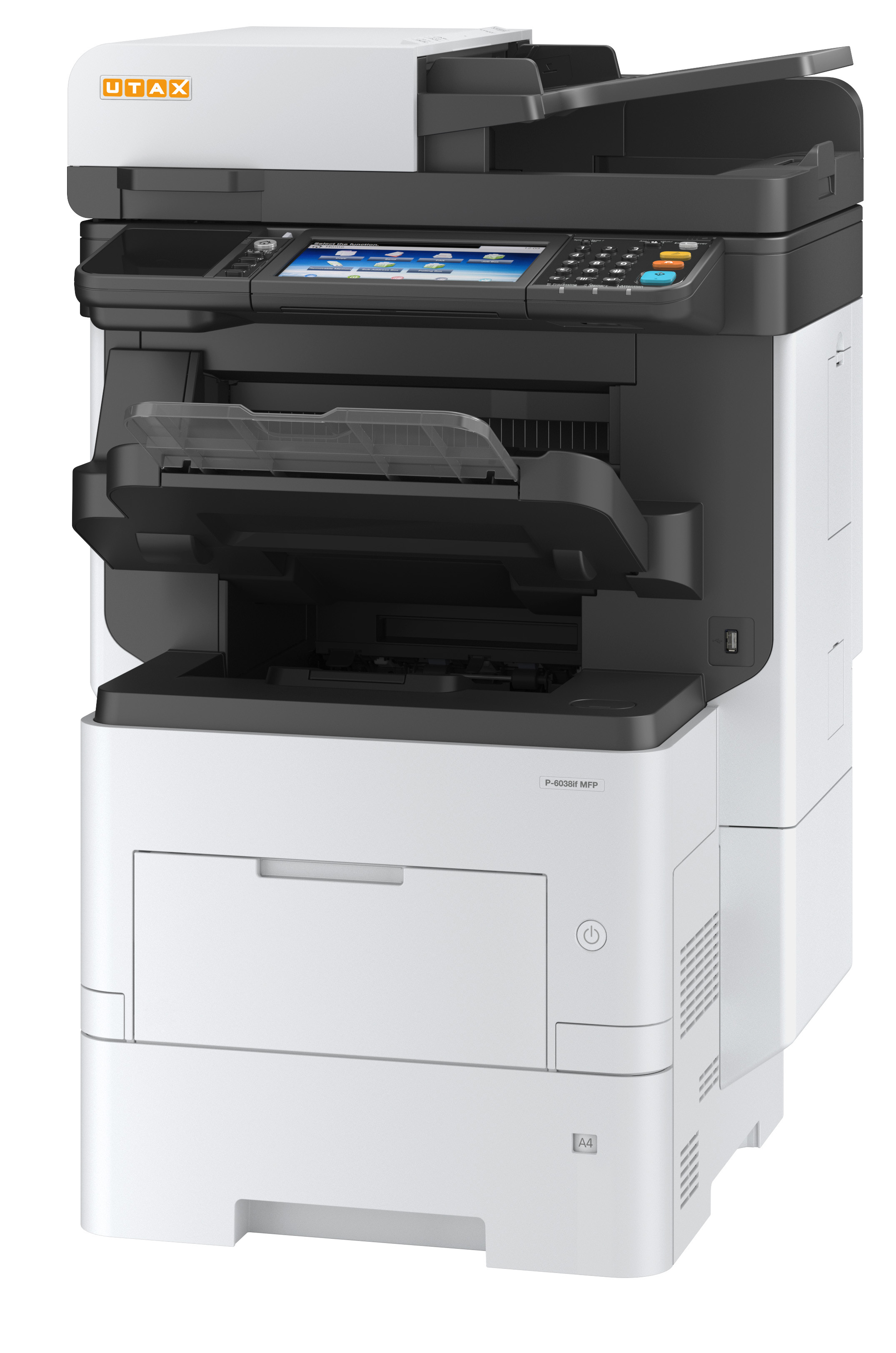

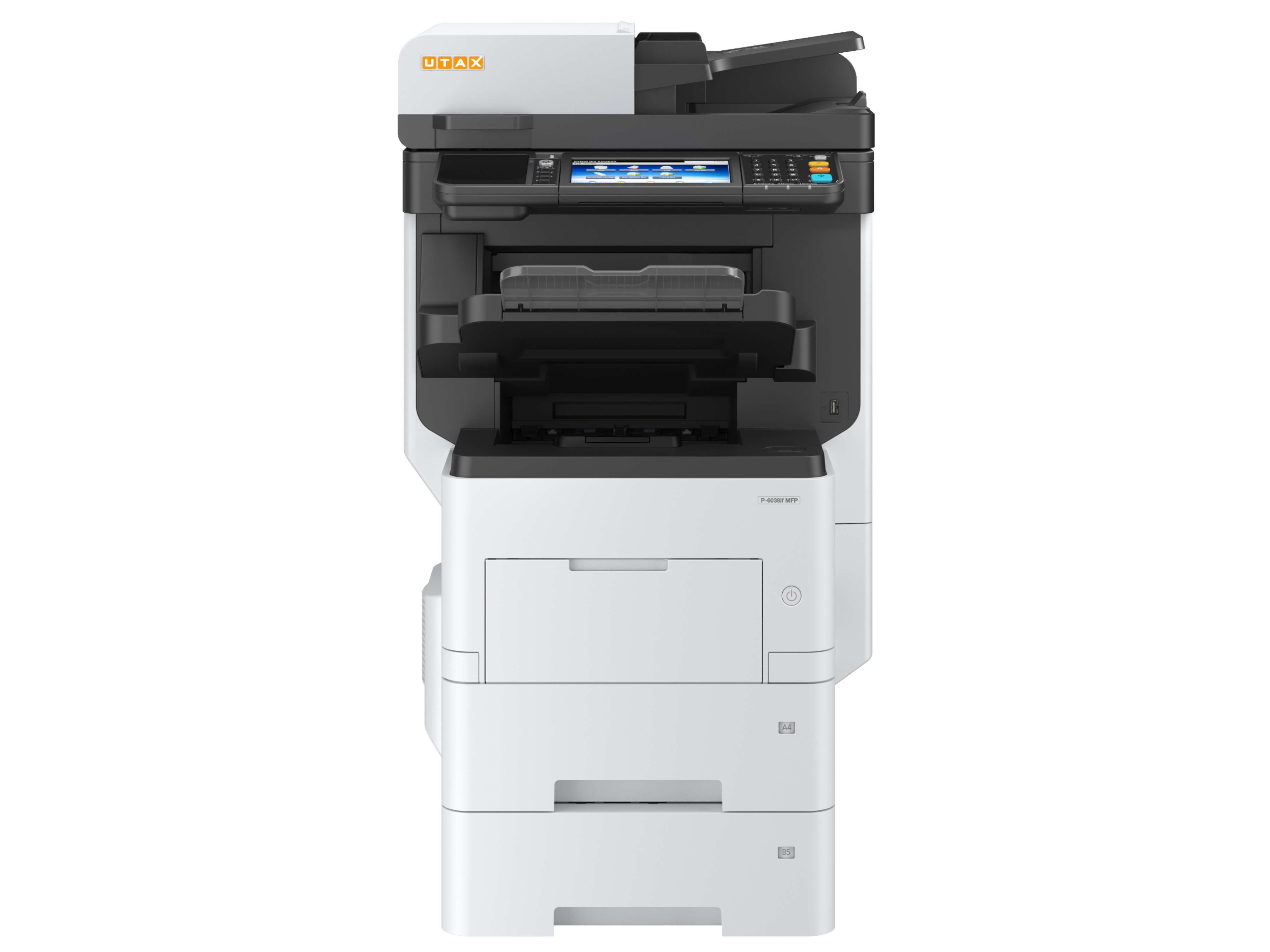

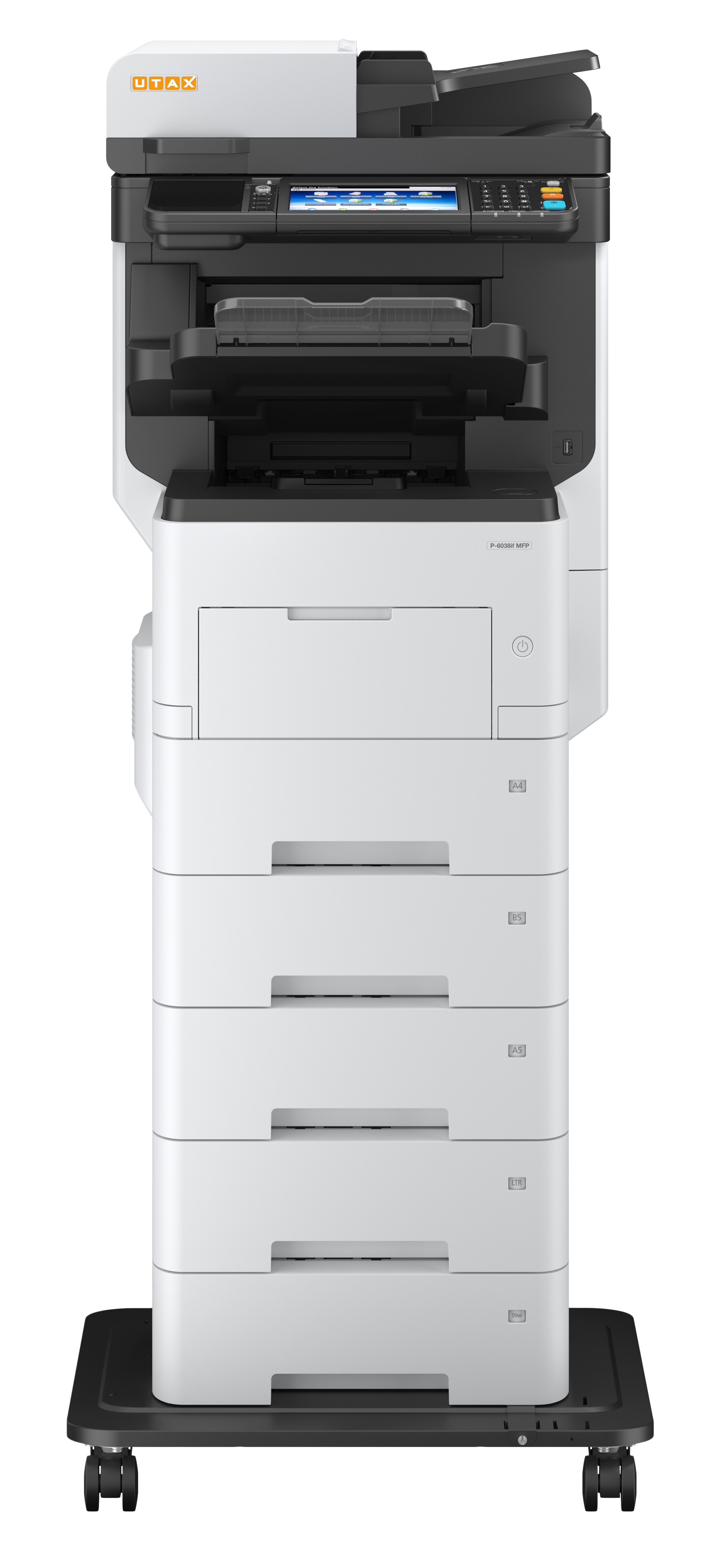

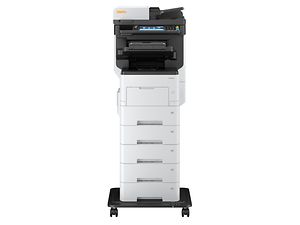

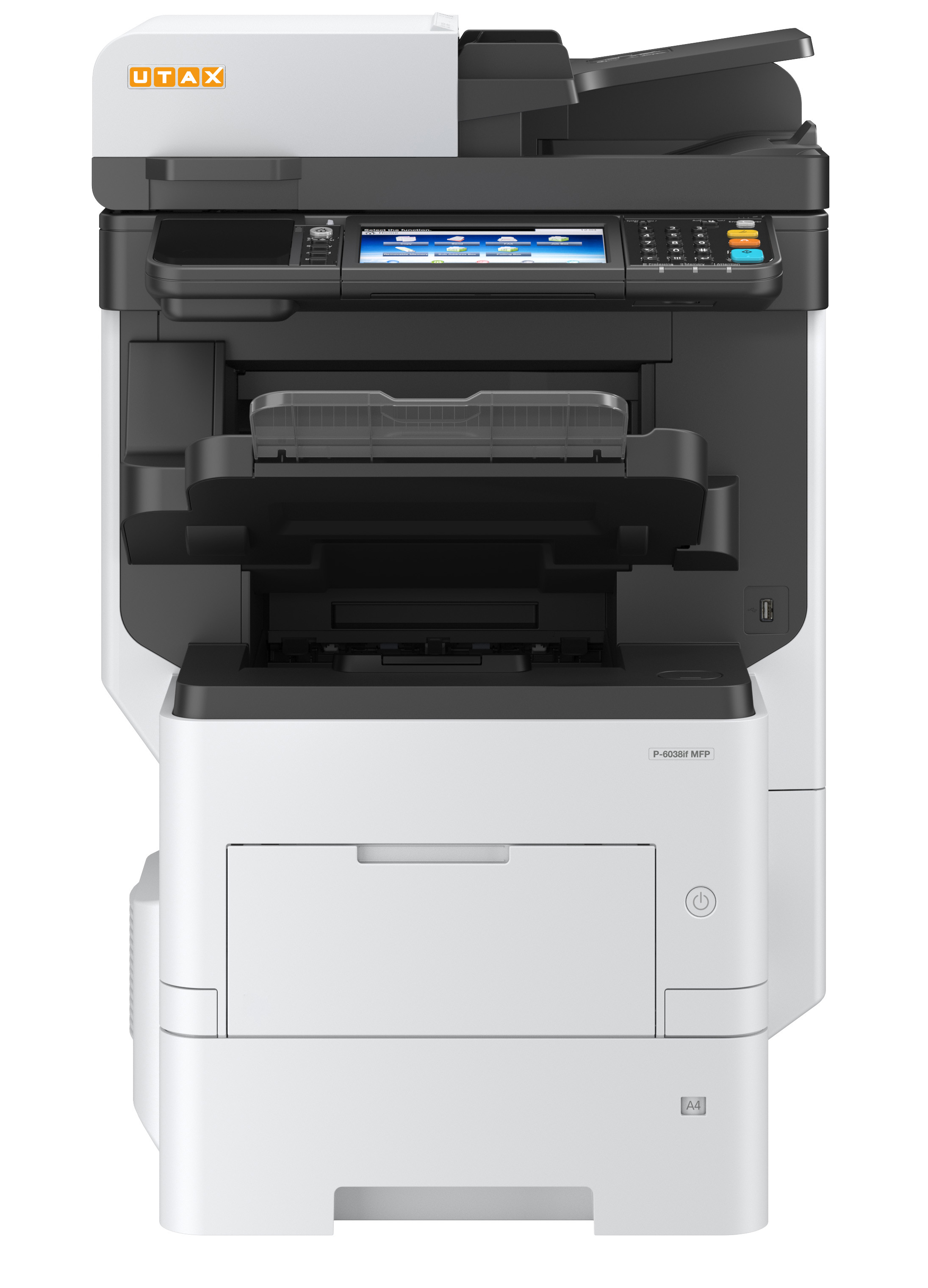

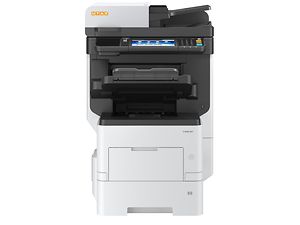

P-6038if MFP Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, fax
  • Print technologyLaser b/w
  • Original formatmax A4 from platen glass
  • Original feeder100 sheet document processor with simultaneous duplex scanning and double-feed detection sensor (standard), A6R-A4, banner feeding up to 915 mm length, 50-120 g/m²
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet, 1 x 500 sheet
  • Paper feed (1st cassette types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 139,7 mm, max 216 x 356 mm], banner: 915 mm length
  • Paper output500 sheet A4 (face-down), 250 sheet A4 (face-up, with PT-320)
  • System memory (Optional)32/128 GB SSD
  • FunctionsColour touch screen (7 inch), Colour touch screen (7 inch), duplex, job reservation, favourites (programs), ID card copy, Scan once - Copy Many, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), 100 management codes
  • Print speed (A4, Simplex) B/W60.0 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W60.0 b/w-pages/min.
  • Print speed (A4, Duplex) B/W43.0 b/w-pages/min.
  • 1st page (printing, b/w)4.5 seconds
  • 1st page (copying, b/w)6.0 seconds
  • Warm-up time25.0 seconds
  • Paper weights (Universal cassette min)60.0 g/m²
  • Paper weights (Universal cassette max)120.0 g/m²
  • Paper weights (Multi-Bypass min)60.0 g/m²
  • Paper weights (Multi-Bypass max)220.0 g/m²
  • Paper weights (Duplex min)60.0 g/m²
  • Paper weights (Duplex max)120.0 g/m²
  • System memory (RAM)1.0 GB
  • System memory (RAM max)3.0 GB
  • Continuous copying (min)1.0
  • Continuous copying (max)999.0
  • Zoom (min)25.0 %
  • Zoom (max)400.0 %
  • Zoom (step)1.0 %

Dimensions / Weight

Environment

  • Noise level (busy, b/w)55.7 dB(A)
  • Noise level (standby)23.7 dB(A)
  • Mains voltage220/240 V
  • SafetyGS/TÜV, CE
  • Utility frequency50/60 Hz
  • Power consumption (busy)723.0 W
  • Power consumption (max)1276.0 W
  • Power consumption (TEC)0.84 kwh/week
  • Power consumption (standby)54.0 W
  • Power consumption (sleep)0.5 W

Printing system

  • Print resolution (max)1,200 x 1,200 dpi
  • EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ile, Line Printer, IBM Proprinter, Epson LQ-850, XPS, Open XPS, PDF 1.7
  • FunctionsUSB direct printing, printing of e-mails, private printing, barcode printing, banner up to 915 mm length), WSD-/Internet printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
  • TypeIntegrated within the system
  • ProcessorARM Cortex-A9, 1,2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host, SD-Card Slot
  • Print formatA6R-A4
  • Network protocolsTCP/IP, Net BEUI

Scanning system

  • Scan speed (Feeder 1, duplex, b/w)120.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)60.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)80.0 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, colour)40.0 DIN-A4-image pages/min. in 300 dpi
  • Scan formatmax A4
  • File typesTIFF, JPEG, PDF, PDF/A-1a, PDF/A-1b, PDF/A-2a, PDF/A-2b, PDF/A-2u, high compression PDF, encrypted PDF, XPS, OpenXPS, MS Office/text-searchable PDF
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
  • Scan modePhoto, text, photo/text, optimised for OCR
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP
  • Scan typeCCD colour and b/w
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi

Fax system

  • One touch dial100.0 numbers
  • Group dial50.0 numbers
  • Modem speed33.6 kbps
  • Abbreviated dial200.0 numbers
  • Fax memory8.0 MB
  • Fax memory (image)3.5 MB
  • CompatibilitySuper G3
  • Transmission speed3 seconds or less using JBIG
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission
  • TypeIntegrated within the system
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
  • Compression methodJBIG, MMR, MR, MH
  • Original formatmax A4
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)

Options

  • Other optionsPT-320 sheet output tray (250 sheet face-up), Data security kit (E), Data security kit (E), Scan extension kit (A), Card authentication kit (B), Card reader holder (10), UG-33 ThinPrint® kit, UG-35 Trusted Platform Module, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), HD-14 (320 GB HDD), cabinet no. 79 (high), cabinet no. 80 (low), caster kit CA-3100
  • FinisherIntegrated finisher (s. a. paper output)
  • Paper feedmax 4 x PF-3110 (500 sheet universal cassettes (A5R-A4, 60-120 g/m²])

Notes on technical data

  1. DIN/ISO 7779/9296↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. depending on the operating status↩
  5. with DP↩
  6. with DP↩
  7. with DP↩
  8. with DP↩
  9. DIN/ISO 7779/9296↩
  10. DIN/ISO 7779/9296↩
  11. optional↩
  12. optional↩
  13. optional↩
  14. optional↩
  15. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.↩
  16. When using HD-6 or HD-7, the Data Security Kit can be activated free of charge.↩
  17. additional memory required for full functionality↩
