P-6040DN

High performance:The P-6040DN's high print resolution, fast print rate of 60 A4 pages per minute, 9 inch touch panel for simple operation, USB port, 320 GB hard disk, 4,000 sheets optional finisher, maximum paper capacity of 7,150 sheets and capability to process paper in sizes up to SRA3 format mean its more than capable for even large complex jobs.

Find a Retailer

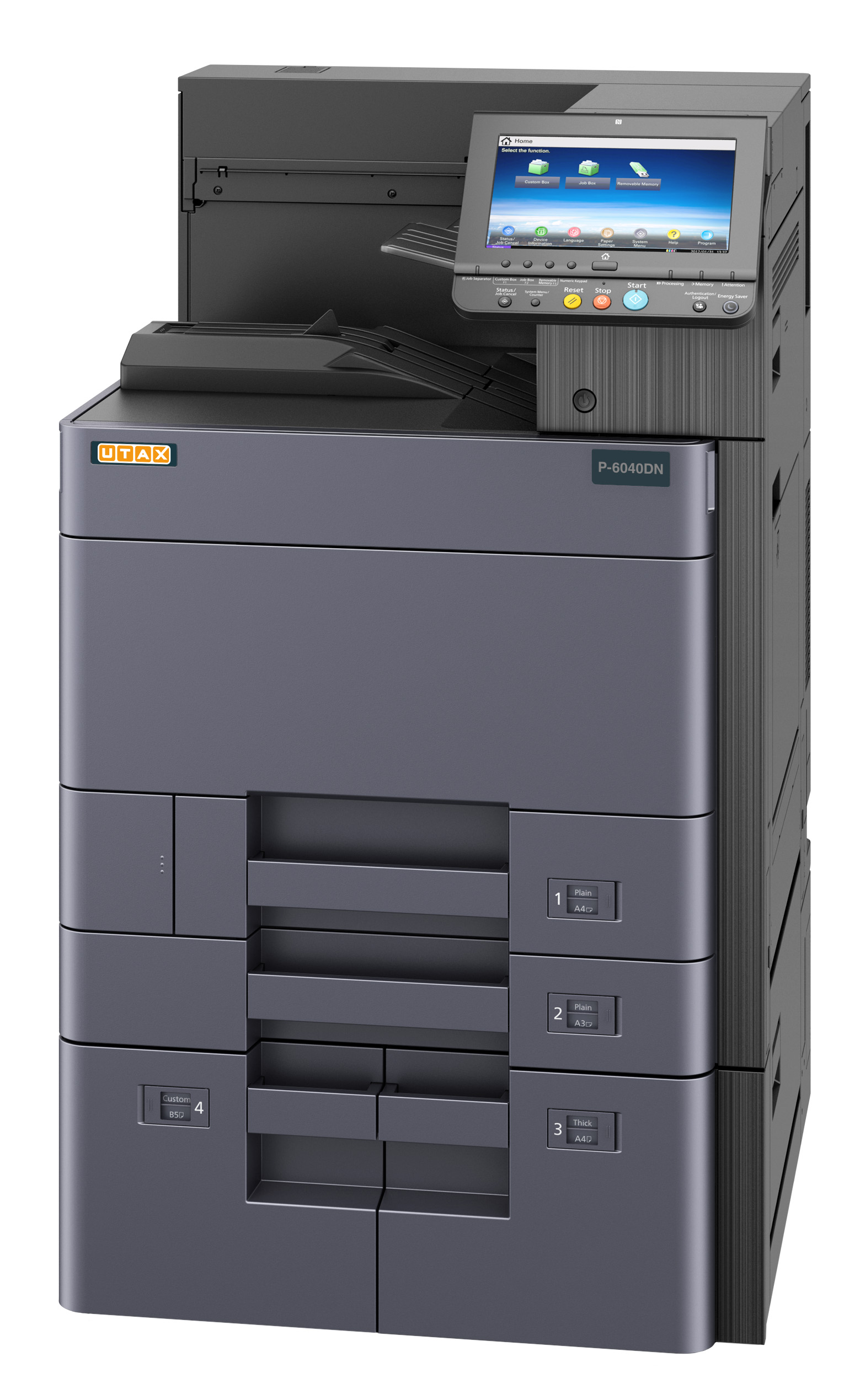

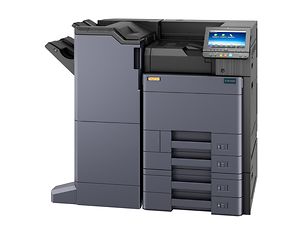

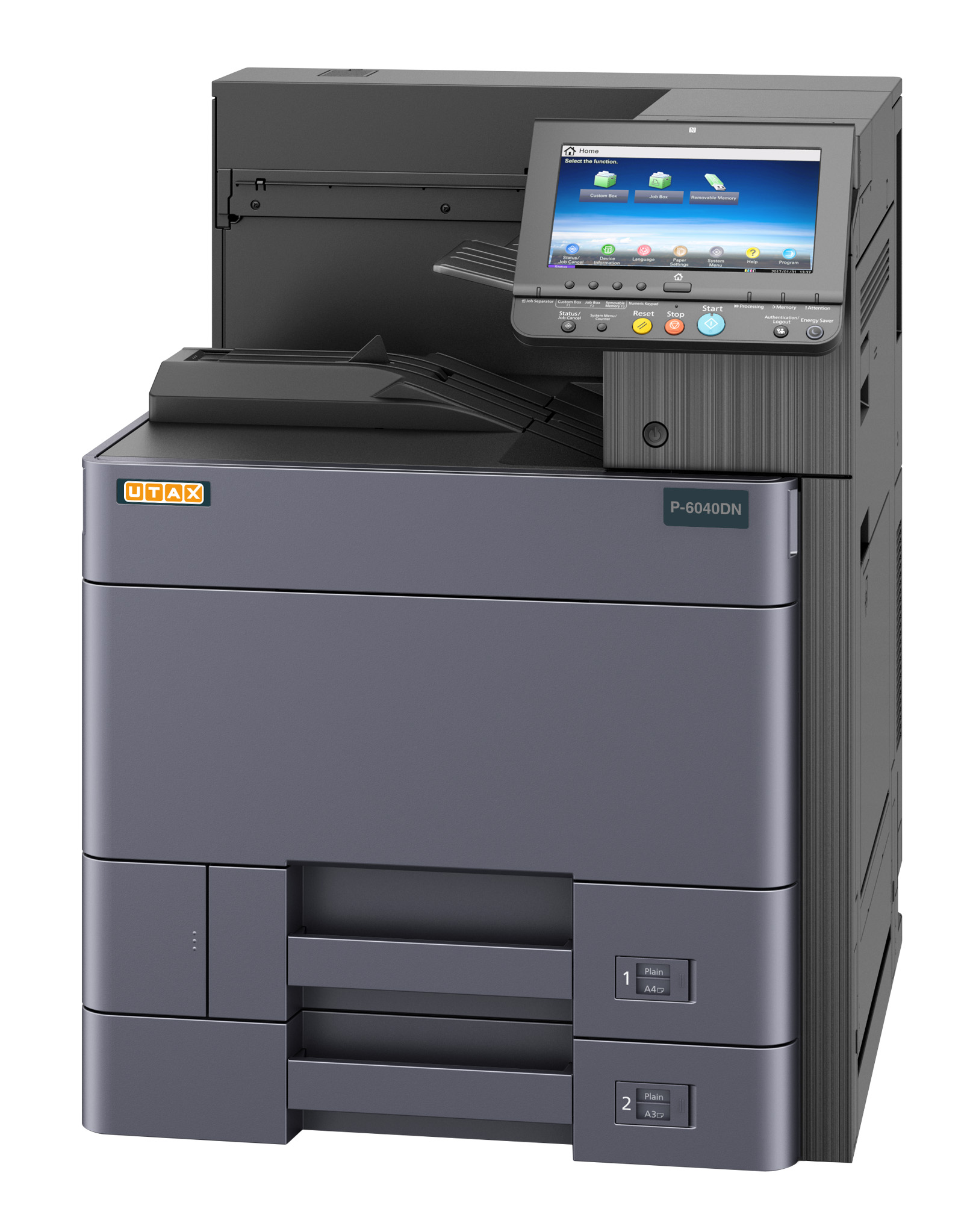

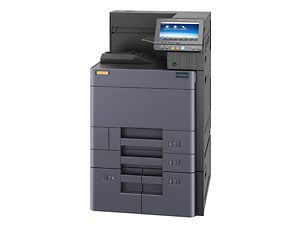

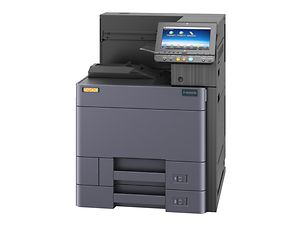

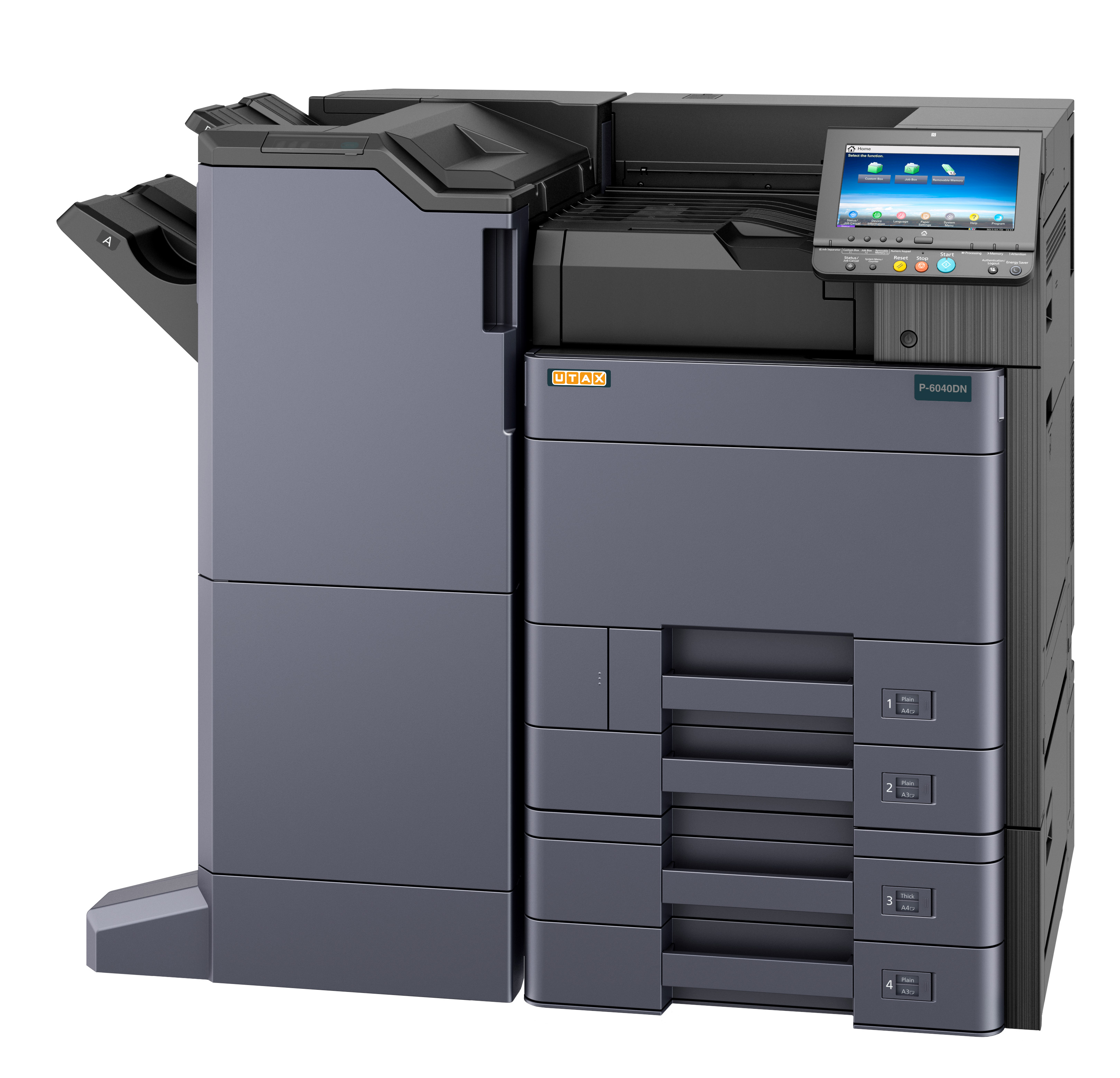

P-6040DN Image

General

  • TypeDesktop
  • Functionprint
  • Print technologyLaser b/w
  • Print formatA6R-A3
  • Print speed (DIN-A4, Simplex) B/W60 b/w-pages/min.
  • Print speed (DIN-A3, Simplex) B/W30 b/w-pages/min.
  • 1st page (printing, b/w)3.8 seconds
  • Warm-up time17 seconds
  • Printing resolution (max)1,200 x 1,200 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)2 x 500 sheet universal cassettes
  • Paper feed (1st cassette types)A6R-SRA3
  • Paper feed (2nd cassette types)A6R-SRA3
  • Paper feed (Multi-Bypass amount)1 x 500 sheet
  • Paper feed (Multi-Bypass types)A6R-SRA3
  • Paper weights (Universal cassette min)50 g/m²
  • Paper weights (Universal cassette max)300 g/m²
  • Paper weights (Multi-Bypass min)52 g/m²
  • Paper weights (Multi-Bypass max)300 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)256 g/m²
  • Paper output500 sheet A4
  • System memory (RAM)4 GB
  • System memory (SSD)8 GB
  • System memory (HDD)320 GB
  • ProcessorFreescale QorIQ T1024 (Dual Core) 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host, NFC
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8.1, Windows 10, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019, Linux, Mac ex OS 10.9
  • EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), XPS, PDF 1.7, PRESCRIBE Ile
  • Functionsduplex, management codes, PDF direct printing

Dimensions / Weight

  • Dimensions (height)790 mm
  • Dimensions (width)602 mm
  • Dimensions (depth)665 mm
  • Weight77.2 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (busy)820 W
  • Power consumption (standby)40 W
  • Power consumption (sleep)1 W
  • Power consumption (TEC)0.9 kwh/week
  • Noise level (busy, b/w)59 dB(A)
  • Noise level (standby)32.4 dB(A)
  • SafetyGS/TÜV, CE

Options

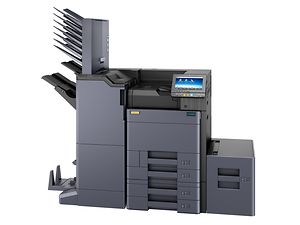

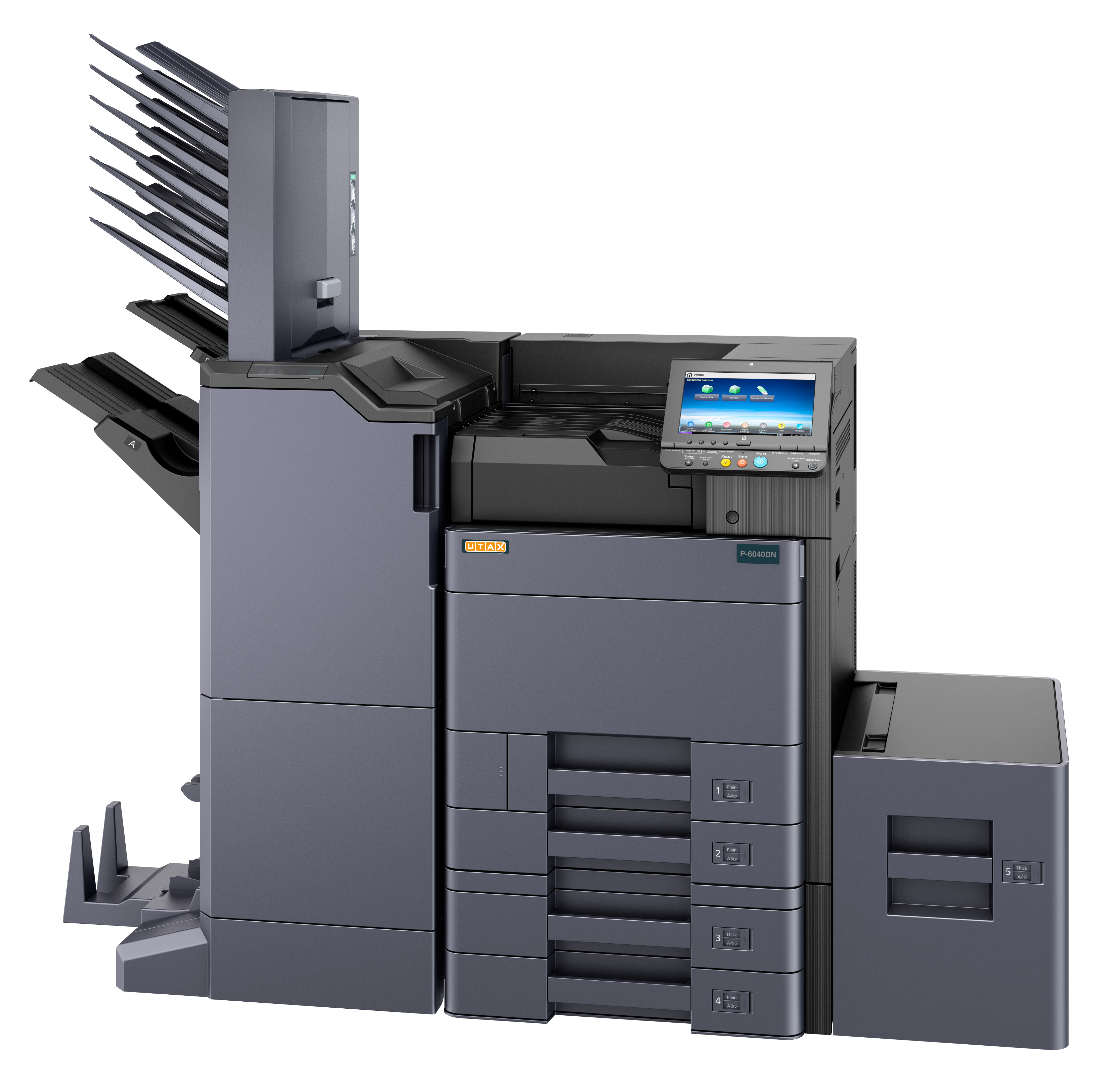

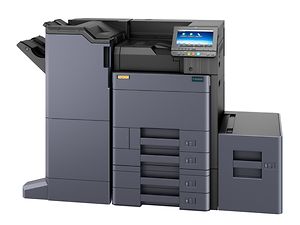

  • FinisherDF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),, DF-7110 (capacity: 4,000 sheet A4, stapling max 65 sheet A4), PH-7C hole punch unit for DF-7120/DF-791, MT-730 (B) multi tray for DF-791
  • Job SeparatorJS-7100 (100 sheet, 52-300 g/m², A6R - SRA3)
  • Paper feedPF-7100 (2 x 500 sheet universal cassettes [A5R-SRA3]), PF-7110 (2 x 1,500 sheet large capacity cassette [A4]), PF-7120 (3,000 sheet large capacity tray [A4], side deck)
  • Other optionsData security kit (E), Card authentication kit (B), Keyboard holder 10, Banner guide 10, UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-51 WLAN card, IB-35 WLAN card, DT-730(B) Document tray, NK-7100(B) Numeric Keyboard (10 keys), cabinet no. 76

Notes on technical data

  1. depending on the operating status
  2. depending on the operating status
  3. DIN/ISO 7779/9296
