  • TypeDesktop
  • FunctionCopy, print, scan, fax
  • Print technologyLaser colour and b/w
  • Original formatmax A4 from platen glass
  • Original feeder75 sheet A4 (standard, with auto reverse function), A6R-A4, 50-120 g/m² (simplex/duplex)
  • Print speed (A4, Simplex) B/W30 b/w-pages/min.
  • Copy speed (A4, Simplex) B/W30 b/w-pages/min.
  • Print speed (A4, Duplex) B/W15 b/w-pages/min.
  • Copy speed (A4, Duplex) B/W15 b/w-pages/min.
  • Print speed (A4, Simplex) Colour30 colour pages/min
  • Copy speed (A4, Simplex) Colour30 colour pages/min
  • Print speed (A4, Duplex) Colour15 colour pages/min
  • Copy speed (A4, Duplex) Colour15 colour pages/min
  • 1st page (printing, colour)7.5 seconds
  • 1st page (printing, b/w)6.5 seconds
  • 1st page (copying, colour)9 seconds
  • 1st page (copying, b/w)7.5 seconds
  • Warm-up time26 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 250 sheet
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm]
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)163 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)163 g/m²
  • Paper output250 sheet A4
  • System memory (RAM)1 GB
  • System memory (RAM max)3 GB
  • System memory (Optional)32/128 GB SSD
  • Continuous copying (min)1
  • Continuous copying (max)999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsAdjustable colour touch screen (7 inch), duplex, job reservation, job programs, ID card copy, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), login by function, 100 management codes

  • Mains voltage220/240 V
  • Utility frequency50 Hz
  • Power consumption (max)1159 W
  • Power consumption (busy)471 W
  • Power consumption (standby)70 W
  • Power consumption (sleep)0.6 W
  • Power consumption (TEC)0.44 kwh/week
  • Noise level (busy, b/w)49.6 dB(A)
  • Noise level (standby)29.4 dB(A)
  • SafetyGS/TÜV, CE

  • TypeIntegrated within the system
  • Print formatA6R-A4
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi (reduced speed)
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), Wi-Fi
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.5
  • EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ilc, XPS, PDF 1.7
  • Functions200 dpi, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, quiet mode (half speed mode), barcode printing, Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, Wi-Fi

  • Scan typeCCD colour and b/w
  • Scan formatmax A4
  • Scan speed (Feeder 1, simplex, colour)40 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)60 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)17 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)26 DIN-A4-image pages/min. in 300 dpi
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, PDF/A-1, PDF/A-2, high compression PDF, encrypted PDF, XPS, OpenXPS, MS Office/text-searchable PDF
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WIA scan, SMTP authentication, LDAP

  • TypeIntegrated within the system
  • CompatibilitySuper G3
  • Original formatmax A4
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolutionStandard (200 x 100 dpi), fine (200 x 200 dpi), super fine (200 x 400 dpi), ultra fine (400 x 400 dpi)
  • Fax memory8 MB
  • Fax memory (image)3.5 MB
  • Abbreviated dial200 numbers
  • One touch dial100 numbers
  • Group dial50 numbers
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission

  • FinisherMS-5100 manual stapler for 20 sheet

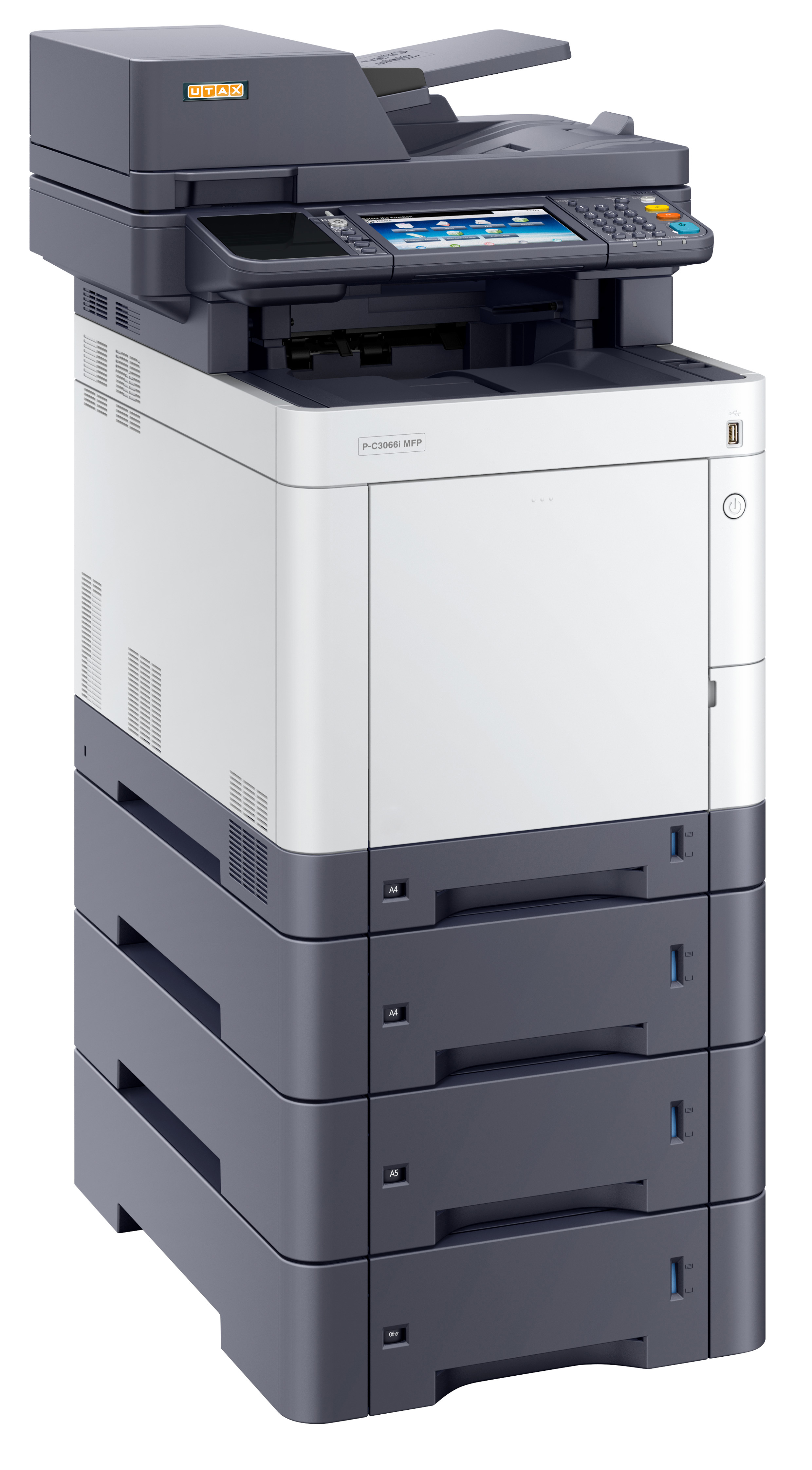

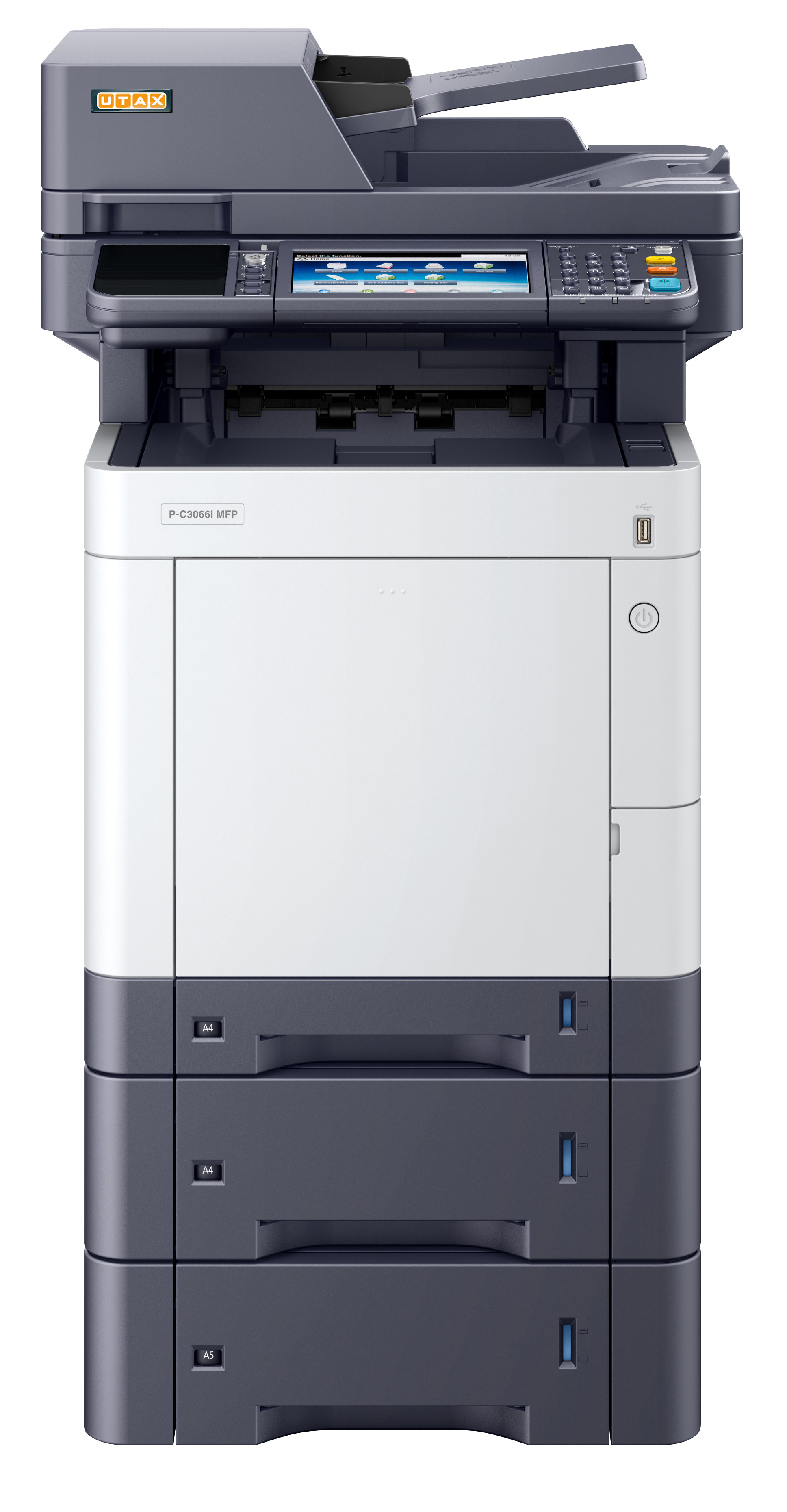

  • Paper feedmax 3 x PF-5100 (500 sheet universal cassettes [A5R-A4, 60-220 g/m²])
  • Other optionsData security kit (E), Scan extension kit (A), Card authentication kit (B), Card reader holder (10), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), cabinet no. 72 (high), cabinet no. 73 (low)

Notes on technical data

  1. depending on the operating status
  2. depending on the operating status
  3. depending on the operating status
  4. depending on the operating status
  5. depending on the operating status
  6. with DP
  7. with DP
  8. with DP
  9. DIN/ISO 7779/9296
  10. optional
  11. optional
  12. optional
  13. optional
  14. optional
  15. additional memory required for full functionality
