  • TypeDesktop
  • Functionprint
  • Print technologyLaser colour and b/w
  • Print formatmax A4
  • Print speed (A4, Simplex) B/W35 b/w-pages/min.
  • Print speed (A4, Duplex) B/W32 b/w-pages/min.
  • Print speed (A4, Simplex) Colour35 colour pages/min
  • Print speed (A4, Duplex) Colour32 colour pages/min
  • 1st page (printing, colour)7.5 seconds
  • 1st page (printing, b/w)6.5 seconds
  • Warm-up time25 seconds
  • Printing resolution (min)600 x 600 dpi
  • Printing resolution (max)1,200 x 1,200 dpi (reduced speed)
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)163 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)163 g/m²
  • Paper output500 sheet A4
  • System memory (RAM)1 GB
  • System memory (RAM max)3 GB
  • System memory (Optional)32/128 GB SSD
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), Wi-Fi
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Novell NetWare, Linux, Mac ex OS 10.5
  • EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ilc, PDF 1.7, XPS
  • Functions200 dpi, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, quiet mode (half speed mode), barcode printing, Mobile Print (Android/iOS), Apple AirPrint, Google Cloud Print, Wi-Fi

  • Dimensions (height)469.5 mm
  • Dimensions (width)390 mm
  • Dimensions (depth)532 mm
  • Weight29.5 kg

  • Mains voltage220/240 V
  • Utility frequency50 Hz
  • Power consumption (max)1297 W
  • Power consumption (busy)510 W
  • Power consumption (standby)74 W
  • Power consumption (sleep)0.6 W
  • Power consumption (TEC)1.6 kwh/week
  • Noise level (busy, b/w)52 dB(A)
  • Noise level (standby)30.1 dB(A)
  • SafetyGS/TÜV, CE

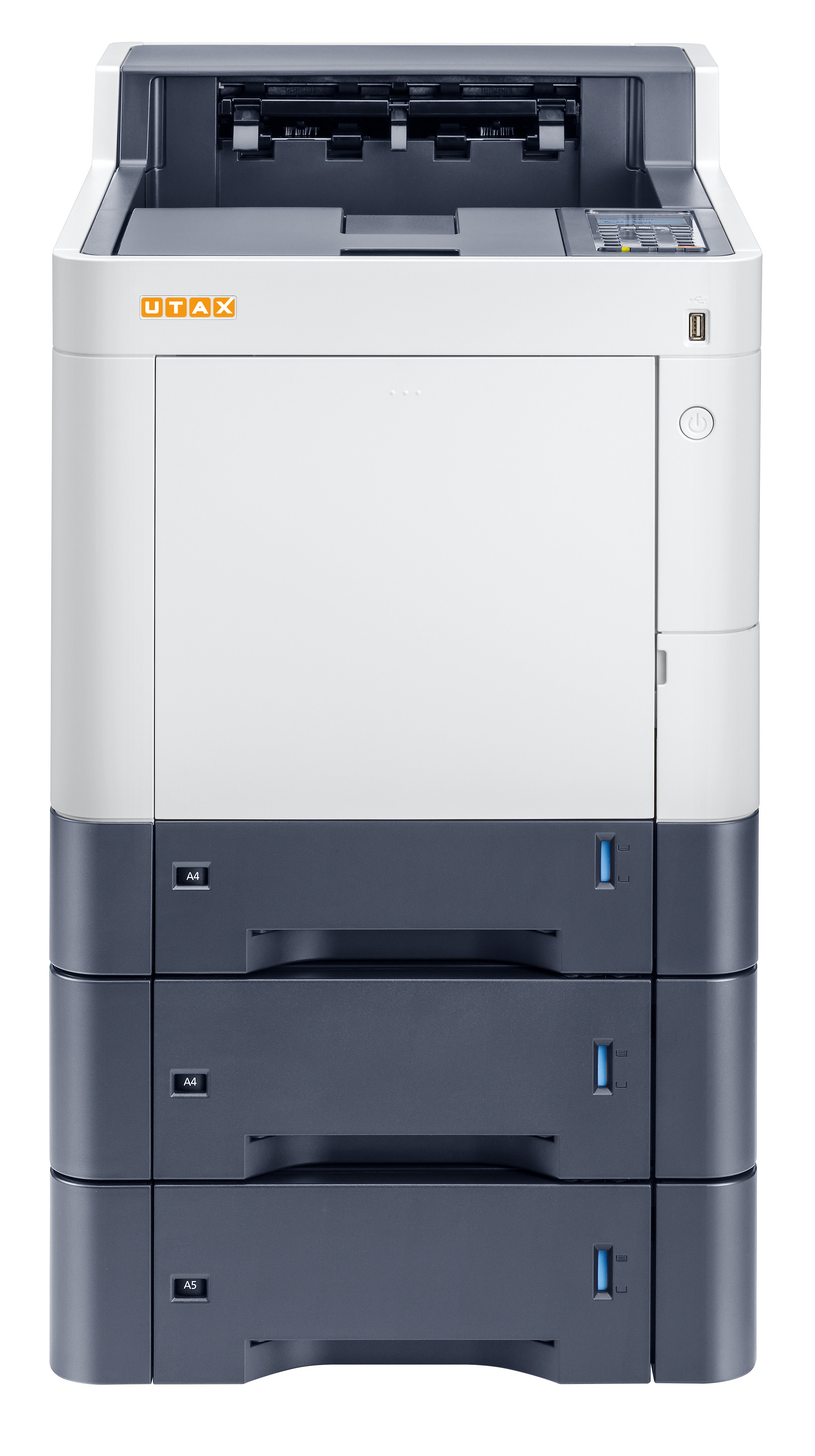

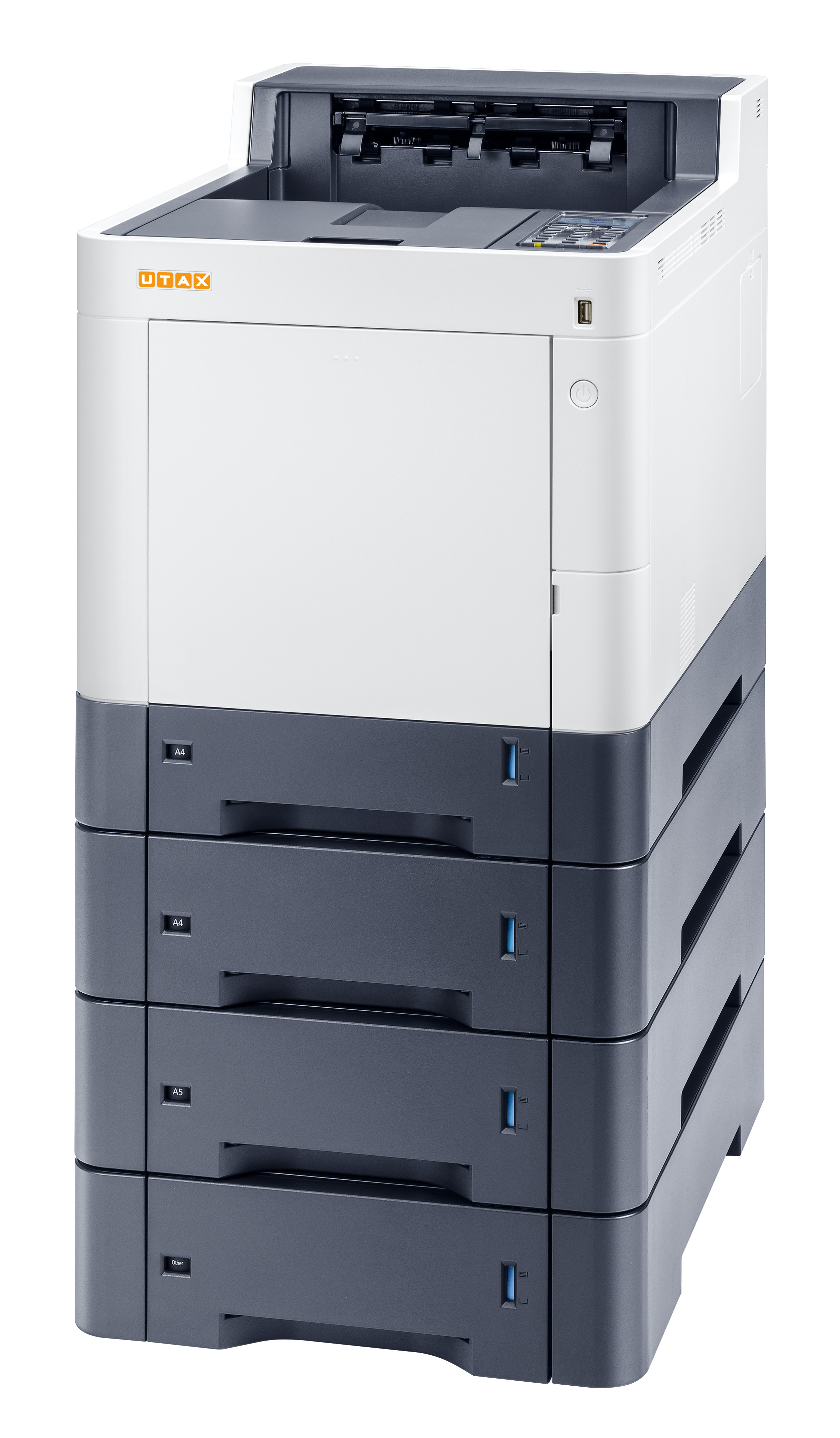

  • Paper feedmax 3 x PF-5100 (500 sheet universal cassettes [A5R-A4, 60-220 g/m²])
  • Other optionsData security kit (E), Card authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-36 or IB-51 WLAN card, HD-6 SSD (32 GB), HD-7 SSD (128 GB), cabinet no. 72 (high), cabinet no. 73 (low)

Notes on technical data

  1. depending on the operating status
  2. depending on the operating status
  3. depending on the operating status
  4. optional
  5. optional
  6. optional
  7. optional
  8. DIN/ISO 7779/9296
