P-C3563DN

Discover the world of efficient, high-quality colour printing with our new P-C3563DN A4 colour laser printer. With a maximum print resolution of 1,200 x 1,200 dpi, the new toner technology delivers a print quality that is more vibrant and more detailed. In addition to the enhanced output speed of 35 pages per minute in colour, there was a focus during the development phase on designing the systems to be slim and compact so that they can be seamlessly integrated into the work environment. Numerous security features that protect your data at all times rounds off the comprehensive printer package.

Find a Retailer

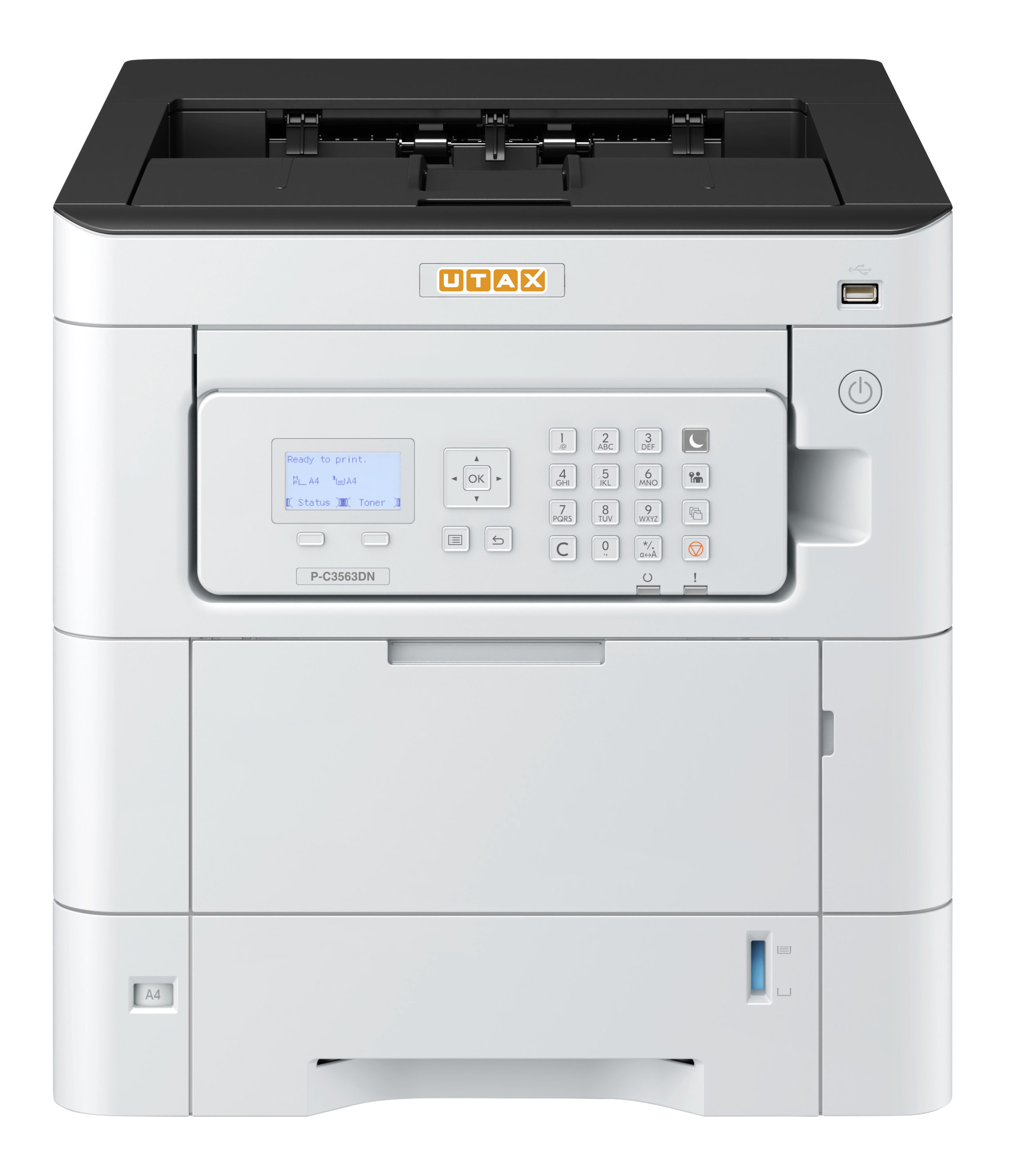

P-C3563DN Image

General

  • TypeDesktop
  • Functionprint
  • Print technologyLaser colour and b/w
  • Print formatmax A4
  • Print speed (A4, Simplex) B/W35 b/w-pages/min.
  • Print speed (A4, Duplex) B/W17.5 b/w-pages/min.
  • Print speed (A4, Simplex) Colour35 colour pages/min
  • Print speed (A4, Duplex) Colour17.5 colour pages/min
  • 1st page (printing, colour)7 seconds
  • 1st page (printing, b/w)5.7 seconds
  • Warm-up time23 seconds
  • Printing resolution (min)600 x 600 dpi
  • Printing resolution (max)1,200 x 1,200 dpi (reduced speed)
  • Greyscales256
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)220 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)163 g/m²
  • Paper output250 sheet A4
  • System memory (RAM)1 GB
  • System memory (RAM max)1 GB
  • System memory (Optional)64/256/512 GB SSD
  • ProcessorARM Cortex-A9 Dual core 1.2 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (2), Wi-Fi
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2022, Chrome OS, Mac ab OS 10.14, Server 2019, Mac ex OS 10.9, Linux
  • EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ilc, PDF 1.7, XPS
  • Functions200 dpi, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, quiet mode (half speed mode), barcode printing, Mobile Print (Android/iOS), Apple AirPrint, Wi-Fi, Microsoft Universal Print

Dimensions / Weight

  • Dimensions (height)392.5 mm
  • Dimensions (width)394 mm
  • Dimensions (depth)533 mm
  • Weight33 kg

Environment

  • Mains voltage220/240 V
  • Utility frequency50 Hz
  • Power consumption (max)1278 W
  • Power consumption (busy)377 W
  • Power consumption (standby)12 W
  • Power consumption (sleep)0.5 W
  • Power consumption (TEC)0.32 kwh/week
  • Noise level (busy, b/w)49.5 dB(A)
  • Noise level (busy, colour)50 dB(A)
  • Noise level (standby)undefined dB(A)
  • SafetyGS/TÜV, CE

Options

  • Other optionsCard authentication kit (B), UG-33 ThinPrint® kit, IB-50 Gigabit Ethernet card, IB-37 WLAN card (IEEE802.11a/b/g/n/ac), UG-35 Trusted Platform Module, IB-51 WLAN card (IEEE802.11/b/g/n), HD-18 SSD (256 GB), HD-17 SSD (64 GB), HD-19 SSD (512 GB)

Notes on technical data

  1. depending on the operating status↩
  2. depending on the operating status↩
  3. depending on the operating status↩
  4. optional↩
  5. optional↩
  6. optional↩
  7. DIN/ISO 7779/9296↩
