502ci

Time is money. That's why you should think about how to make the most of it with the aid of our 502ci A4 colour multifunctional. It delivers up to 50 A4 colour pages/min when printing and copying, and it scans with up to a very speedy 170 images/min. In other words: it is breathtakingly productive from input to output. Convenient functions like NFC and Wi-Fi are supported as is the creation of text-searchable files and the encryption and overwriting of sensitive hard disk data.

Find a Retailer

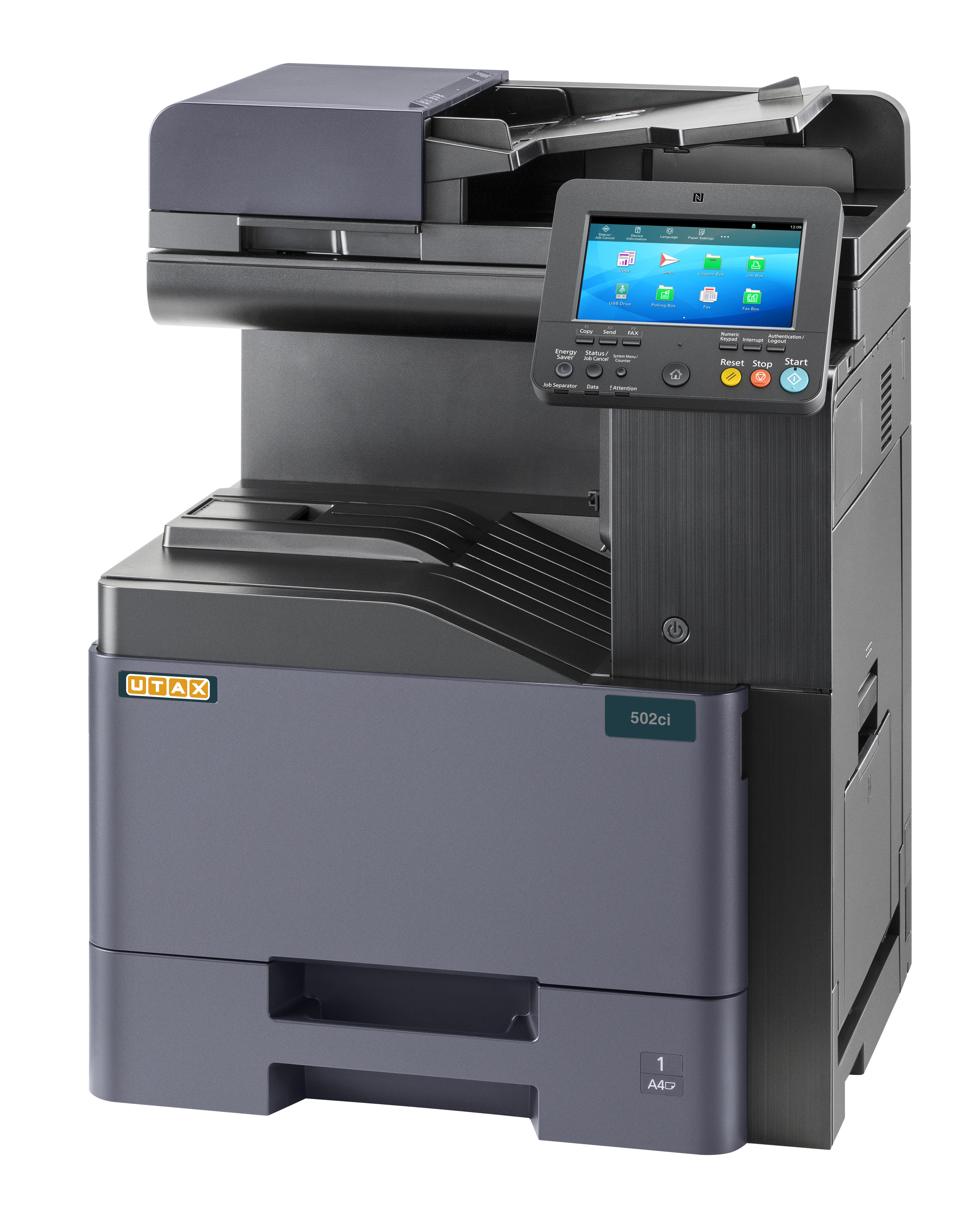

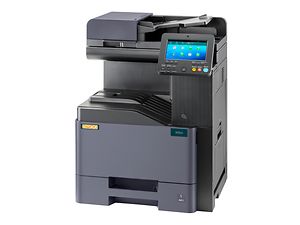

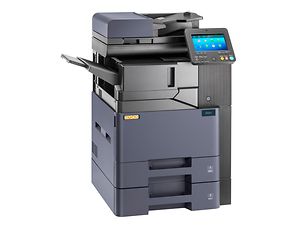

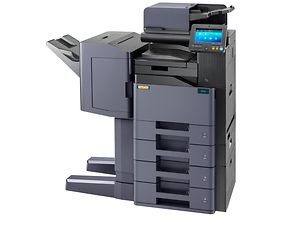

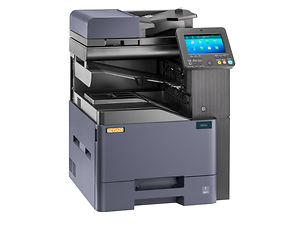

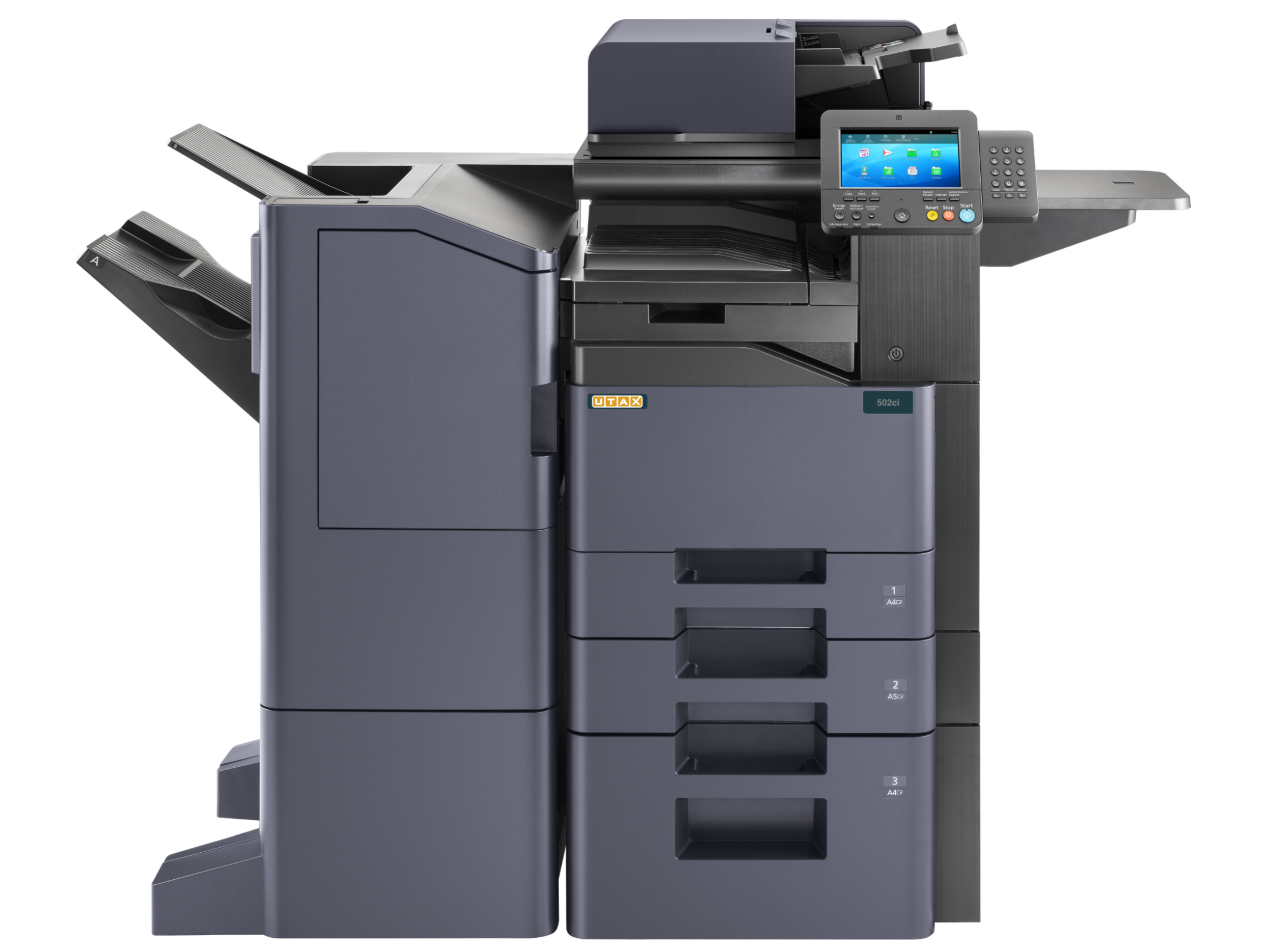

502ci Image

General

  • TypeDesktop
  • FunctionCopy, print, scan, optional: fax
  • Print technologyLaser colour and b/w
  • Original formatmax A4 from platen glass
  • Print speed (DIN-A4, Simplex) B/W50 b/w-pages/min.
  • Copy speed (DIN-A4, Simplex) B/W50 b/w-pages/min.
  • Print speed (DIN-A4, Duplex) B/W50 b/w-pages/min.
  • Copy speed (DIN-A4, Duplex) B/W50 b/w-pages/min.
  • Print speed (DIN-A4, Simplex) Colour50 colour pages/min
  • Copy speed (DIN-A4, Simplex) Colour50 colour pages/min
  • Print speed (DIN-A4, Duplex) Colour50 colour pages/min
  • Copy speed (DIN-A4, Duplex) Colour50 colour pages/min
  • 1st page (printing, colour)6.4 seconds
  • 1st page (printing, b/w)5.4 seconds
  • 1st page (copying, colour)6.2 seconds
  • 1st page (copying, b/w)5.3 seconds
  • Warm-up time24 seconds
  • Copy resolution600 x 600 dpi
  • Greyscales256
  • Paper feed (Universal cassettes amount)1 x 500 sheet
  • Paper feed (1st cassette types)A6R-A4
  • Paper feed (Multi-Bypass amount)100 sheet multi-bypass (A6R-A3)
  • Paper feed (Multi-Bypass types)A6R-A4 [min 70 x 148 mm, max 216 x 356 mm], Banner: max 216 mm (width) x 1,220 mm (length)
  • Paper weights (Universal cassette min)60 g/m²
  • Paper weights (Universal cassette max)220 g/m²
  • Paper weights (Multi-Bypass min)60 g/m²
  • Paper weights (Multi-Bypass max)220 g/m²
  • Paper weights (Duplex min)60 g/m²
  • Paper weights (Duplex max)220 g/m²
  • Paper weights (Banner min)129 g/m²
  • Paper weights (Banner max)163 g/m²
  • Paper output500 sheet A4
  • System memory (RAM)4 GB
  • System memory (SSD)8 GB
  • System memory (HDD)320 GB
  • Continuous copying (min)1
  • Continuous copying (max)9999
  • Zoom (min)25 %
  • Zoom (max)400 %
  • Zoom (step)1 %
  • FunctionsAdjustable colour touch screen (10.1 inch), duplex, job reservation, job programs, continuous scan, skip blank pages, N-up, quiet mode (half speed mode), login by function, 1000 management codes, encryption/overwriting of hard disk data (Data Security Kit and Trusted Platform Module)

Dimensions / Weight

Environment

  • Mains voltage220/240 V
  • Utility frequency50/60 Hz
  • Power consumption (max)1426 W
  • Power consumption (busy)750 W
  • Power consumption (standby)90 W
  • Power consumption (sleep)0.7 W
  • Power consumption (TEC)0.67 kwh/week
  • Noise level (busy, b/w)54.2 dB(A)
  • Noise level (busy, colour)54.6 dB(A)
  • Noise level (standby)undefined dB(A)
  • SafetyGS/TÜV, CE

Printing system

  • TypeIntegrated within the system
  • Print formatA6R-A4
  • Print resolution (min)600 x 600 dpi
  • Print resolution (max)1,200 x 1,200 dpi (reduced speed)
  • ProcessorFreescale QorIQ T1024 (Dual Core) 1.0 GHz
  • InterfacesUSB 2.0, 10/100/1000BaseTX, USB host (3), NFC
  • Network protocolsTCP/IP, Net BEUI
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9
  • EmulationsPCL6 (PCL 5c, XL), KPDL 3 (PostScript 3 compatible), PRESCRIBE Ilc, XPS, Open XPS, PDF 1.7
  • Functions200 dpi, USB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, barcode printing, quiet mode (half speed mode), Mobile Print (Android, iOS)/Apple AirPrint, Google Cloud Print, NFC, Wi-Fi

Scanning system

  • Scan typeCCD colour and b/w
  • Scan formatmax A4
  • Scan speed (Feeder 1, simplex, colour)65 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, simplex, b/w)85 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, colour)130 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 1, duplex, b/w)170 DIN-A4-image pages/min. in 300 dpi
  • Optional feeder 1DP-5130
  • Scan speed (Feeder 2, simplex, colour)60 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 2, simplex, b/w)60 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 2, duplex, colour)120 DIN-A4-image pages/min. in 300 dpi
  • Scan speed (Feeder 2, duplex, b/w)120 DIN-A4-image pages/min. in 300 dpi
  • Optional feederDP-5120
  • Scan resolution200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Scan modePhoto, text, photo/text, optimised for OCR
  • File typesTIFF, JPEG, PDF, high compression PDF, encrypted PDF, text-searchable PDF, XPS, OpenXPS
  • Interfaces10/100/1000BaseTX, USB 2.0
  • Network protocolTCP/IP
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
  • FunctionsScan to SMB, scan to e-mail, scan to FTP, scan to USB, TWAIN scan, WSD scan, SMTP authentication, LDAP

Fax system

  • Typeoptional Fax System (10X)
  • CompatibilitySuper G3
  • Original formatmax A4
  • Modem speed33.6 kbps
  • Transmission speed3 seconds or less using JBIG
  • Compression methodJBIG, MMR, MR, MH
  • Fax resolution600 x 600 dpi
  • Fax memory170 MB
  • Abbreviated dial2000 numbers
  • One touch dial1000 numbers
  • Group dial500 numbers
  • Operating systemsWindows 7, Windows 8, Windows 8.1, Windows 10, Server 2008 R2, Server 2012 R2, Server 2016, Server 2019
  • FunctionsNetwork fax driver, automatic redialling, delayed transmission, max 2 fax kits for parallel transmission and reception

Options

  • Original feederDP-5100 document processor with automatic reverse function (A6R-A4, banner paper up to 1,900 mm [length], capacity: 75 sheet A4, paper weight 50-120 g/m²), DP-5120 document processor with simultaneous duplex scanning (A6R-A4, banner paper up to 1,900 mm [length], capacity: 100 sheet A4, paper weight 50-120 g/m²), DP-5130 document processor with simultaneous duplex scanning, double feed and staple detection sensors (A6R-A4, banner paper up to 1,900 mm [length], capacity: 270 sheet A4, paper weight 50-120 g/m²)

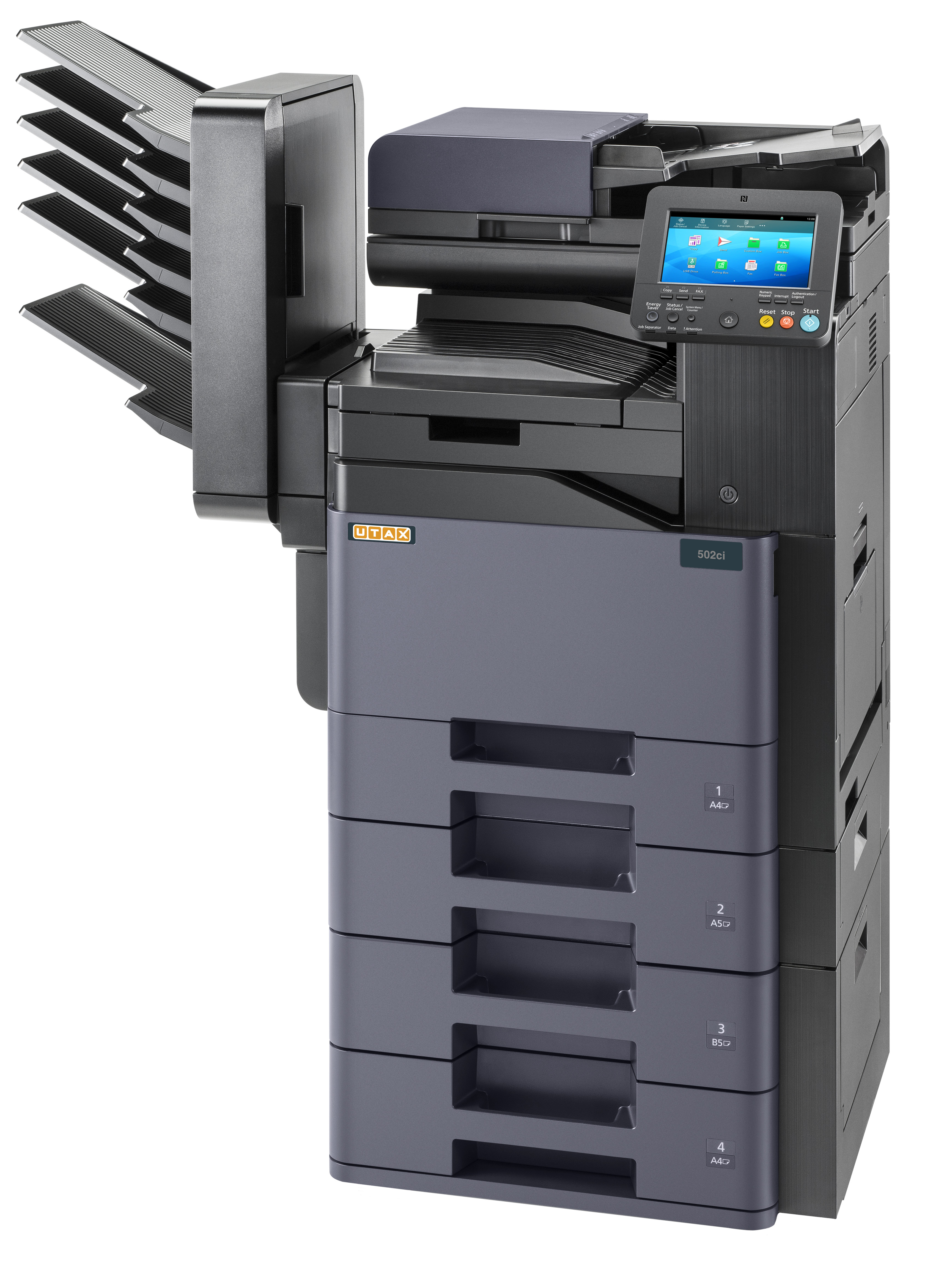

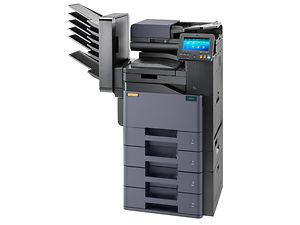

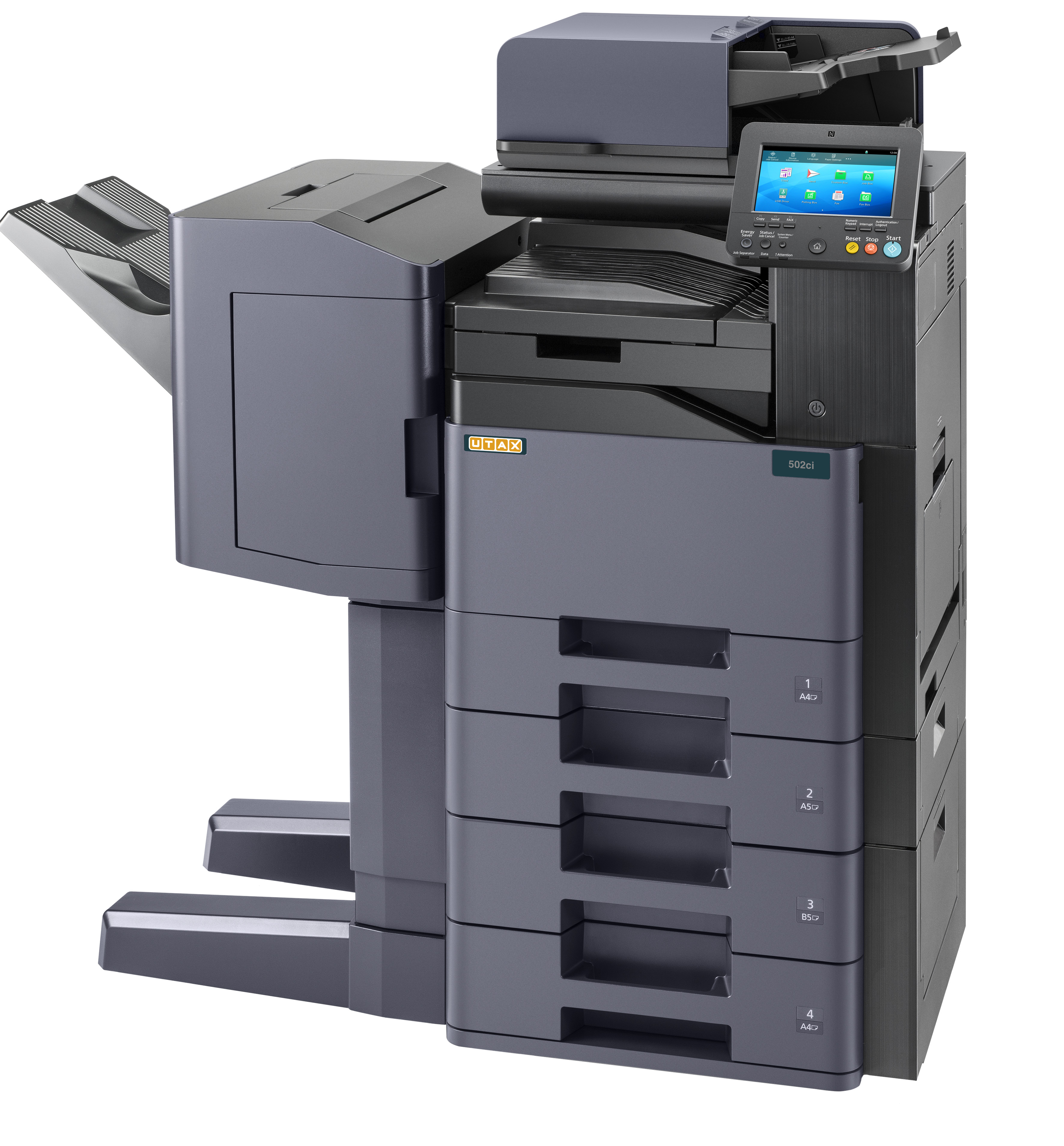

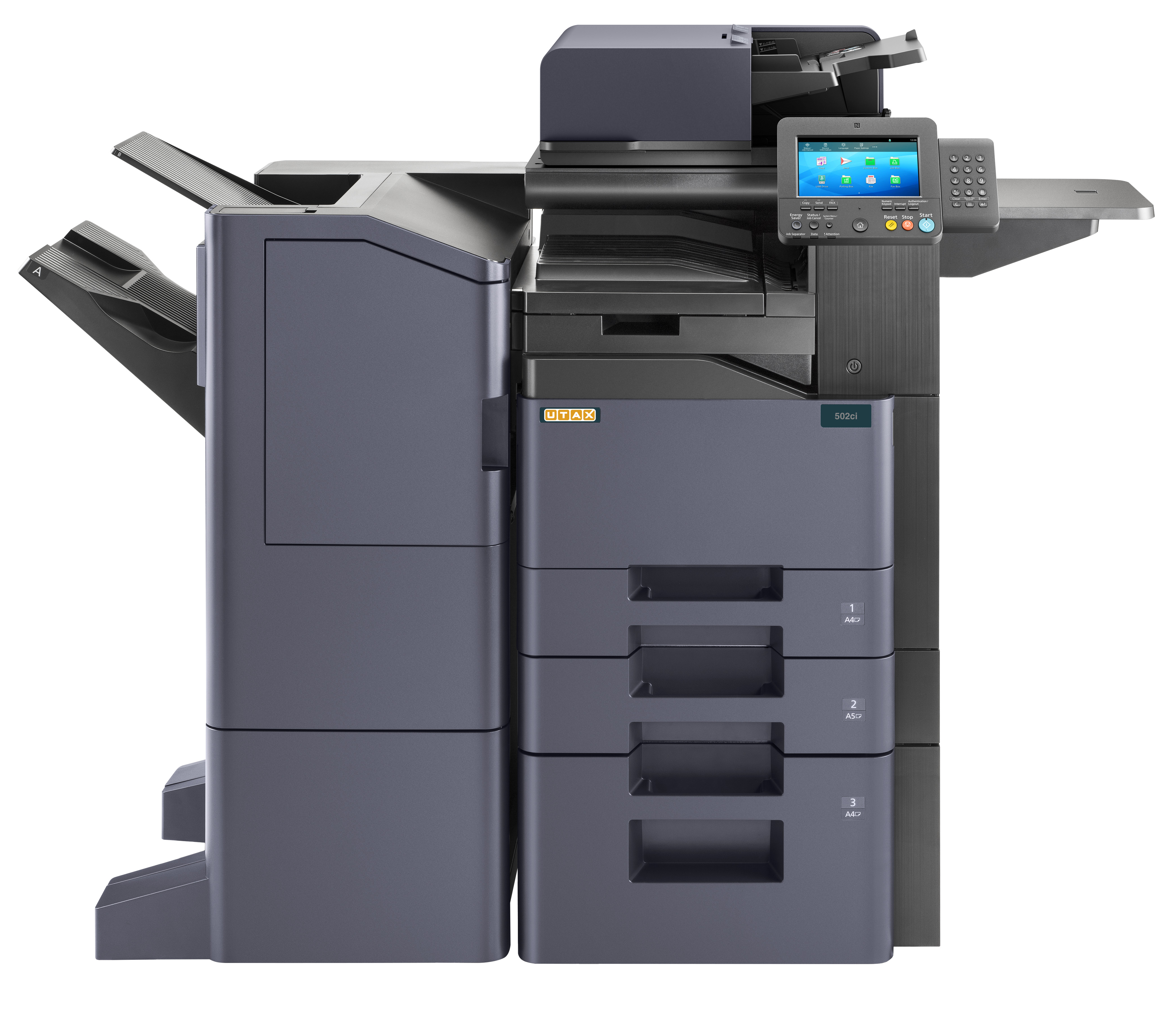

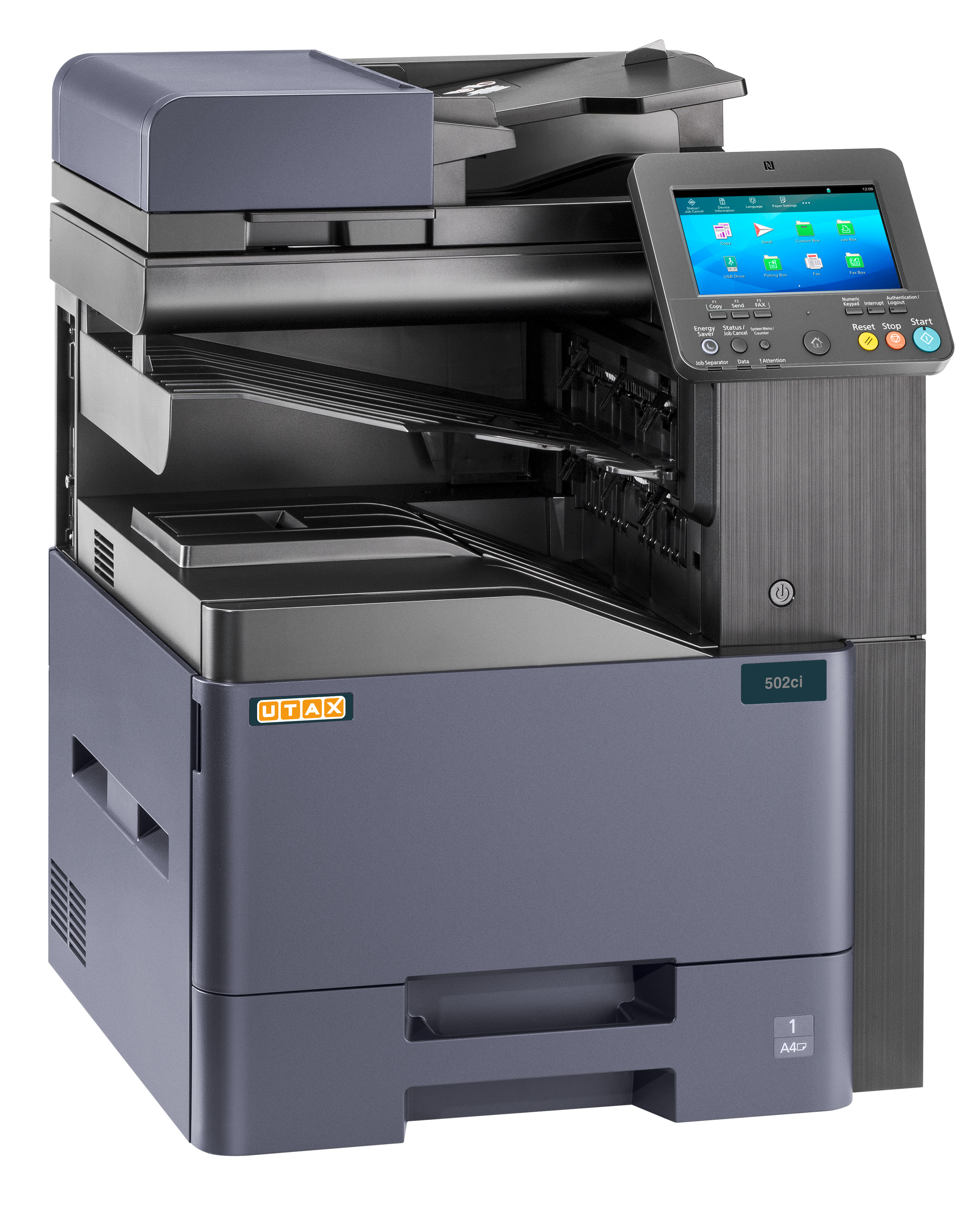

  • FinisherDF-5100 internal finisher (capacity: 300 sheet A4, stapling max 50 sheet A4), DF-5110 (capacity: 1,000 sheet A4, stapling max 50 sheet A4), DF-5120 (capacity: 3,200 sheet A4, stapling max 50 sheet A4, manual stapling also available, 2-/4-hole punching), PH-5110 hole punch unit for DF-5110 (2-/4-hole punching), MT-5100 multi tray (500 sheet + 5 x 100 sheet A4; cannot be combined with DF-5100/DF-5110/DF-5210/JS-5100)

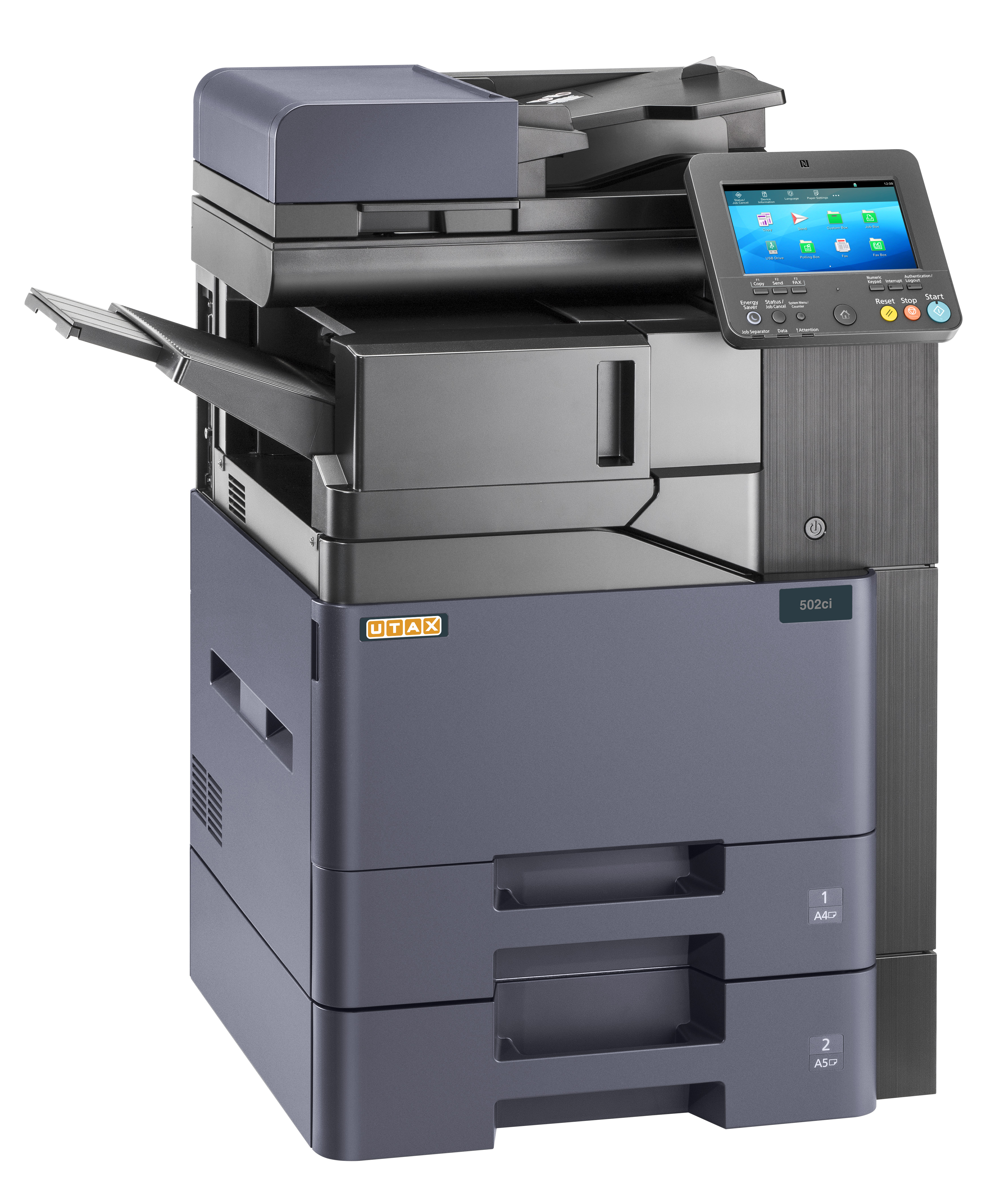

  • Job SeparatorJS-5100 (capacity: 100 sheet A4)
  • Paper feedPF-5120 (1 x 500 sheet universal cassettes [A6R-A4]), PF-5130 (2 x 500 sheet universal cassettes [A6R-A4]), PF-5140 (2,000 sheet large capacity tray [A4]), 1 x PF-5120 is required for installation of PF-5130 or PF-5140!
  • Other optionsCard authentication kit (B), Card reader holder (11), Scan extension kit (A), UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-50 Gigabit Ethernet card, IB-35/IB-51 WLAN card, Internet fax kit (A), DT-5100 document tray, NK-7100(B) Numeric Keyboard (10 keys), cabinet no. 74 (high), cabinet no. 75 (low)

Notes on technical data

  1. depending on the operating status
  2. depending on the operating status
  3. depending on the operating status
  4. depending on the operating status
  5. depending on the operating status
  6. without DP
  7. without DP
  8. without DP
  9. without DP
  10. not measurable (DIN/ISO 7779/9296)
  11. optional
  12. optional
  13. optional
