General
- TypeConsole Unit
- Functionprint
- Print technologyLaser b/w
- Greyscales256
- Paper feed (Universal cassettes amount)2 x 500 sheet universal cassettes
- Paper feed (1st cassette types)A6R-A4
- Paper feed (2nd cassette types)A6R-SRA3
- Paper feed (Multi-Bypass amount)1 x 500 sheet
- Paper feed (Multi-Bypass types)A6R-SRA3, Banner [305 x 1,219 mm]
- Paper feed (Large Capacity Cassette amount)2 x 1,500 sheet
- Paper feed (Large Capacity Cassette 1 types)A4
- Paper output500 sheet A4
- Printing resolution (max)1,200 x 1,200 dpi
- System memory (Optional)320 GB HDD
- FunctionsAdjustable colour touch screen (10.1 inch), duplex, 1000 management codes, skip blank pages, encryption/overwriting of hard disk data (Data Security Kit and Trusted Platform Module), secure boot and run time integrity check, trusted platform modul (TPM), Wi-Fi, etc.
- EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), XPS, PDF 2.0, PRESCRIBE Ilc
- Network protocolsTCP/IP, Net BEUI
- Operating systemsWindows 8, Windows 8.1, Windows 10, Windows 11, Server 2012 R2, Server 2016, Server 2019, Server 2022, Chrome OS, Mac ab OS 10.14, Linux
- Print speed (A4, Simplex) B/W70 b/w-pages/min.
- Print speed (A3, Simplex) B/W35 b/w-pages/min.
- 1st page (printing, b/w)3,7 seconds
- Paper weights (Universal cassette min)52.0 g/m²
- Paper weights (Universal cassette max)300.0 g/m²
- Paper weights (Multi-Bypass min)52.0 g/m²
- Paper weights (Multi-Bypass max)300.0 g/m²
- Paper weights (Duplex min)64.0 g/m²
- Paper weights (Duplex max)256.0 g/m²
- System memory (RAM)4.0 GB
- System memory (SSD)256 GB
- Continuous copying (min)1.0
- Continuous copying (max)9999.0
- Zoom (min)25.0 %
- Zoom (max)400.0 %
- Zoom (step)1.0 %
Dimensions / Weight
- Dimensions (height)790.0 mm
- Dimensions (width)602.0 mm
- Dimensions (depth)665.0 mm
Environment
- Mains voltage220/240 V
- SafetyGS/TÜV, CE
- Utility frequency50/60 Hz
Printing system
- Print resolution (max)1,200 x 1,200 dpi
- EmulationsPCL6 (PCL 5e, XL), KPDL 3 (PostScript 3 compatible), XPS, PRESCRIBE Ile, PDF 2.0
- FunctionsUSB direct printing, PDF/XPS direct printing, printing of e-mails, private printing, barcode printing, SNMPv3, Mobile Print (Android, iOS)/Apple AirPrint
- Operating systemsWindows 8.1, Windows 10, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2, Server 2016, Server 2019, Novell NetWare, Linux, Mac ex OS 10.9, Windows 8, Windows 11, Server 2022, Chrome OS, Mac ab OS 10.14, Server 2025
- TypeIntegrated within the system
- ProcessorARM A53 1,6GHz
- InterfacesUSB 3.0, 10/100/1000BaseTX, USB host, SD-Card Slot
- Print formatA6R-SRA3
- Network protocolsTCP/IP, Net BEUI
Options
- Other optionsCard authentication kit (B), Banner guide 10, UG-33 ThinPrint® kit, UG-34 Emulation option kit, IB-37 WLAN card (IEEE802.11a/b/g/n/ac), NK-7120 Numeric Keyboard (10 keys), cabinet no. 81, HD-15 (320 GB HDD), HD-16 (1 TB HDD), IB-54 WLAN-Karte, IB-53 Gigabit Ethernet Karte

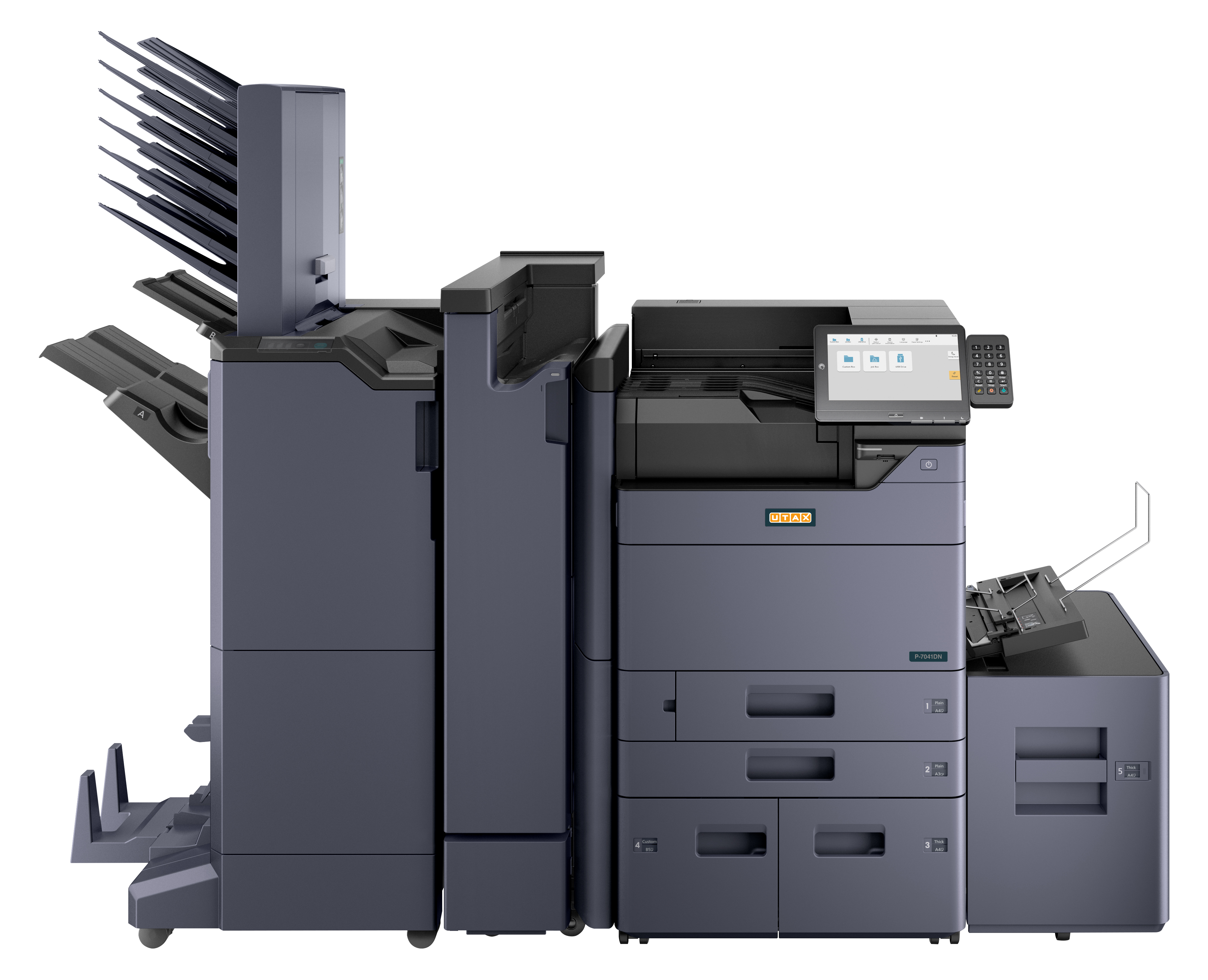

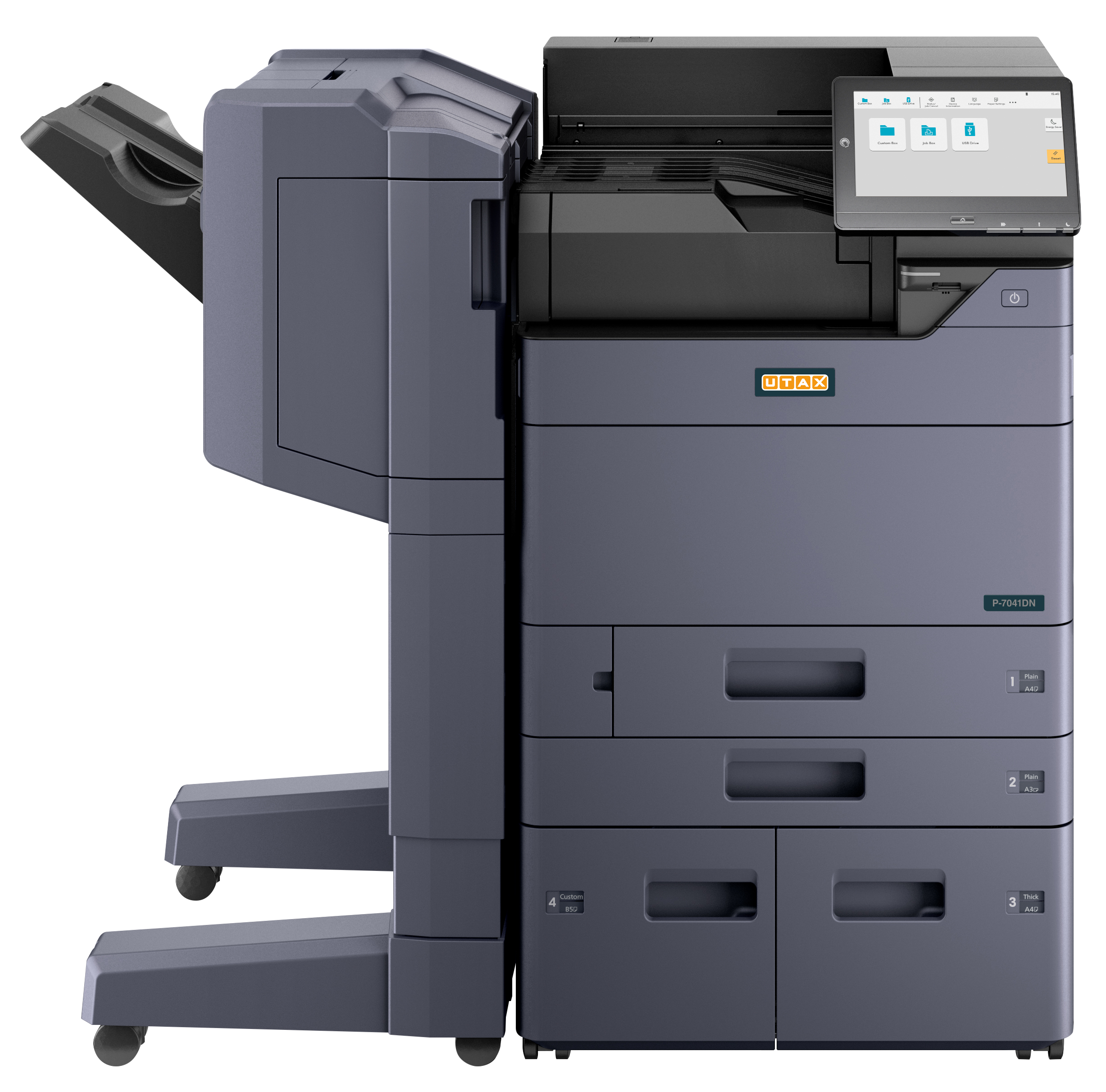

- FinisherDF-7120 (capacity: 1,000 sheet A4, stapling max 50 sheet A4),, PH-7C hole punch unit for DF-7120/7140, BF-730 brochure module for DF-7140 (max 20 sheet saddle stitching and folding A4/A3, tri-folding max X sheet A4), DF-7140 (capacity: 4,000 sheet A4, stapling max 65 sheet A4), MT- 730 (B) Multi Tray für DF-7140
- Job SeparatorJS-7100 (100 sheet, 52-300 g/m², A6R - SRA3), JS-7110 inner shift tray (250 sheet, 52-300 g/m², A6R - SRA3)

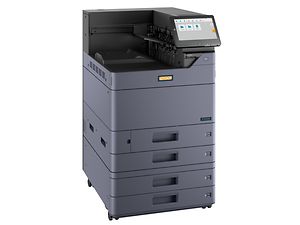

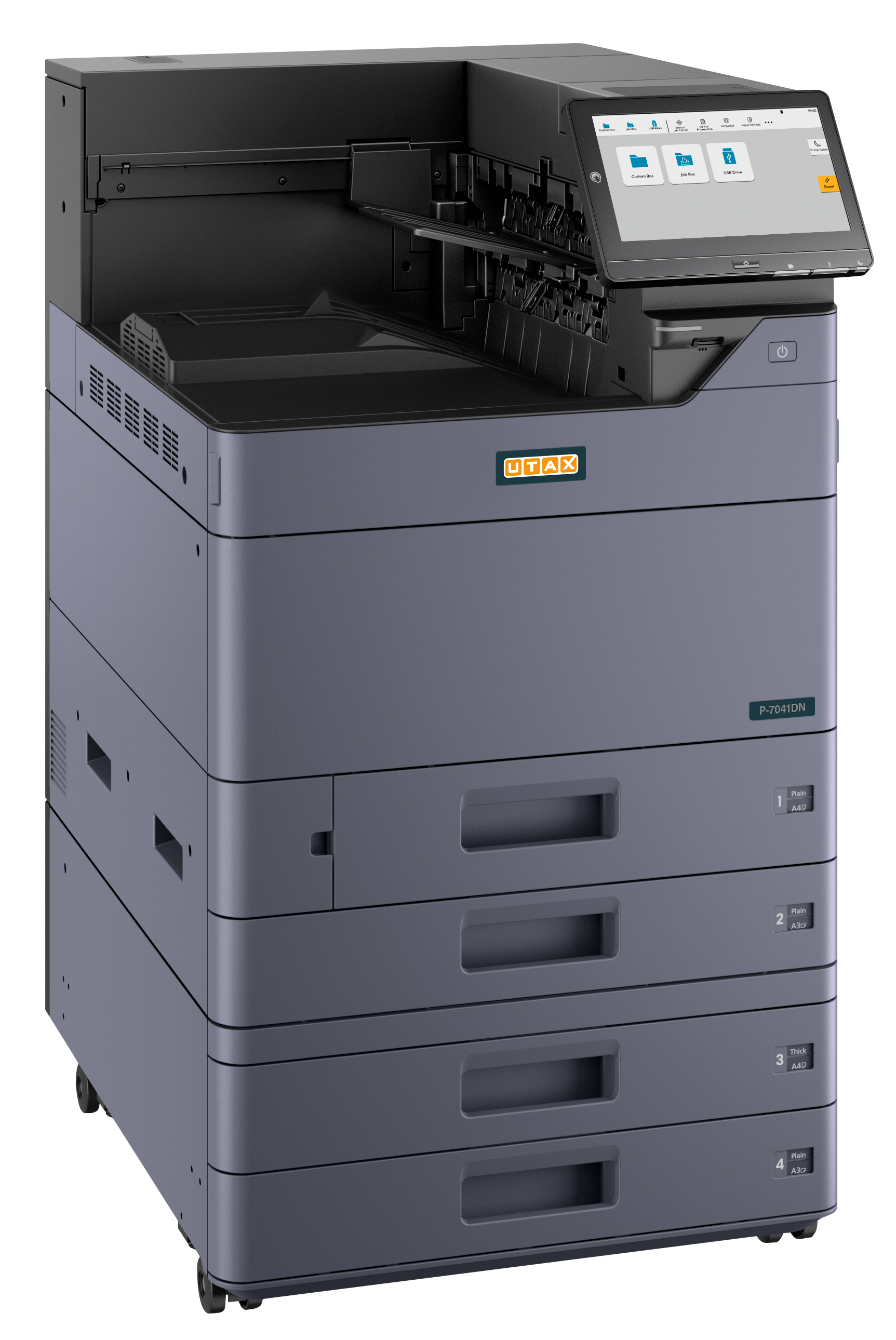

- Paper feedPF-7140 (2 x 500 sheet universal cassettes [A5R-SRA3]), PF-7120 (3,000 sheet large capacity tray [A4], side deck), PF-7150 (2 x 1,500 sheet large capacity cassette [A4])
